Installation Steps
19
PV
-12P
H. Install overhead top beam
1.
With help of the hooks on the top beam, hang the top beam on top of the
extension columns and connect the top beam to the extension columns with
bolts, tighten the bolts.

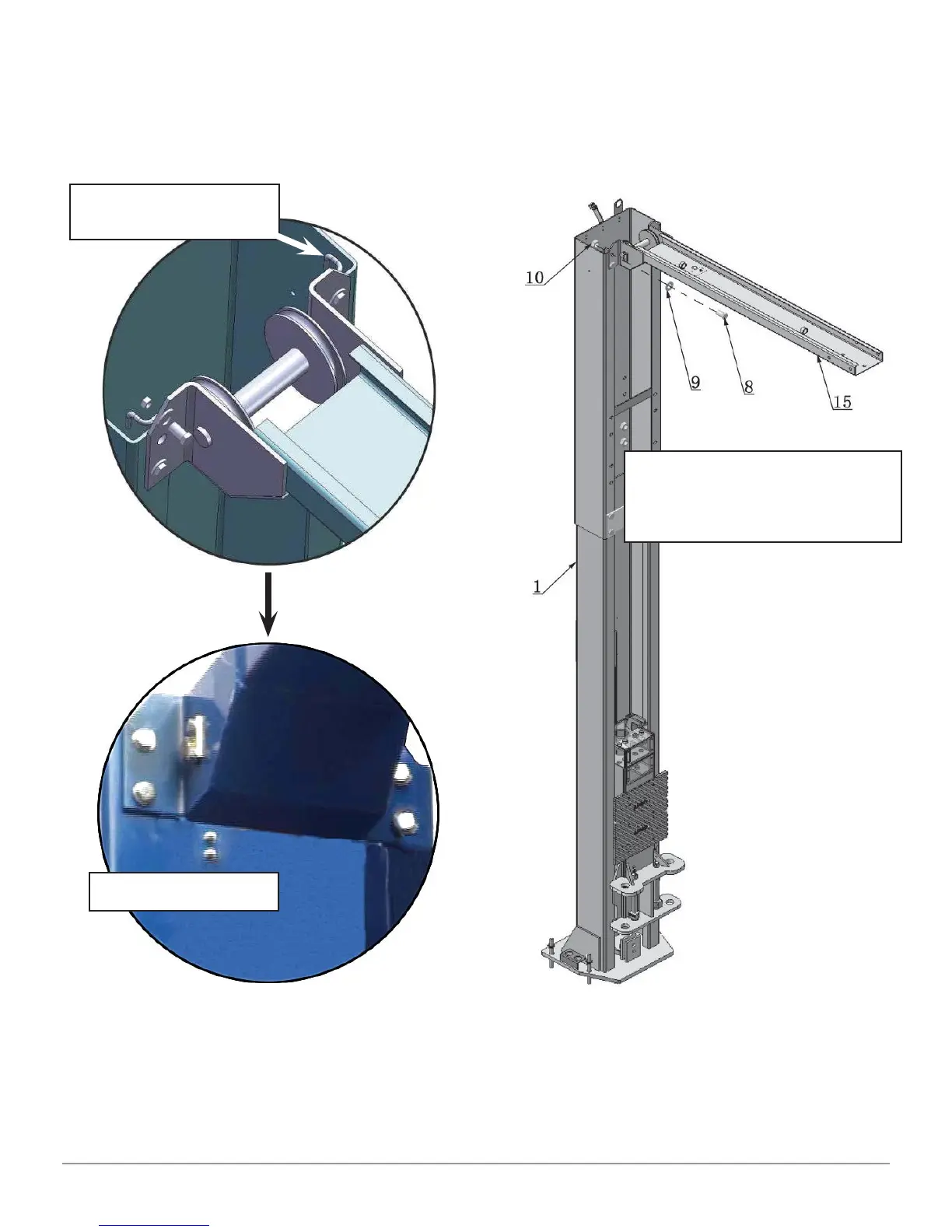

Fig. 21
Use
M12 x 30
Hex
Bolts with
M12
Nylock
Nuts and W
ashers
Hook on to the
extension columns
Tighten the bolts
18
20
