Installation Steps
22
PV
-12P

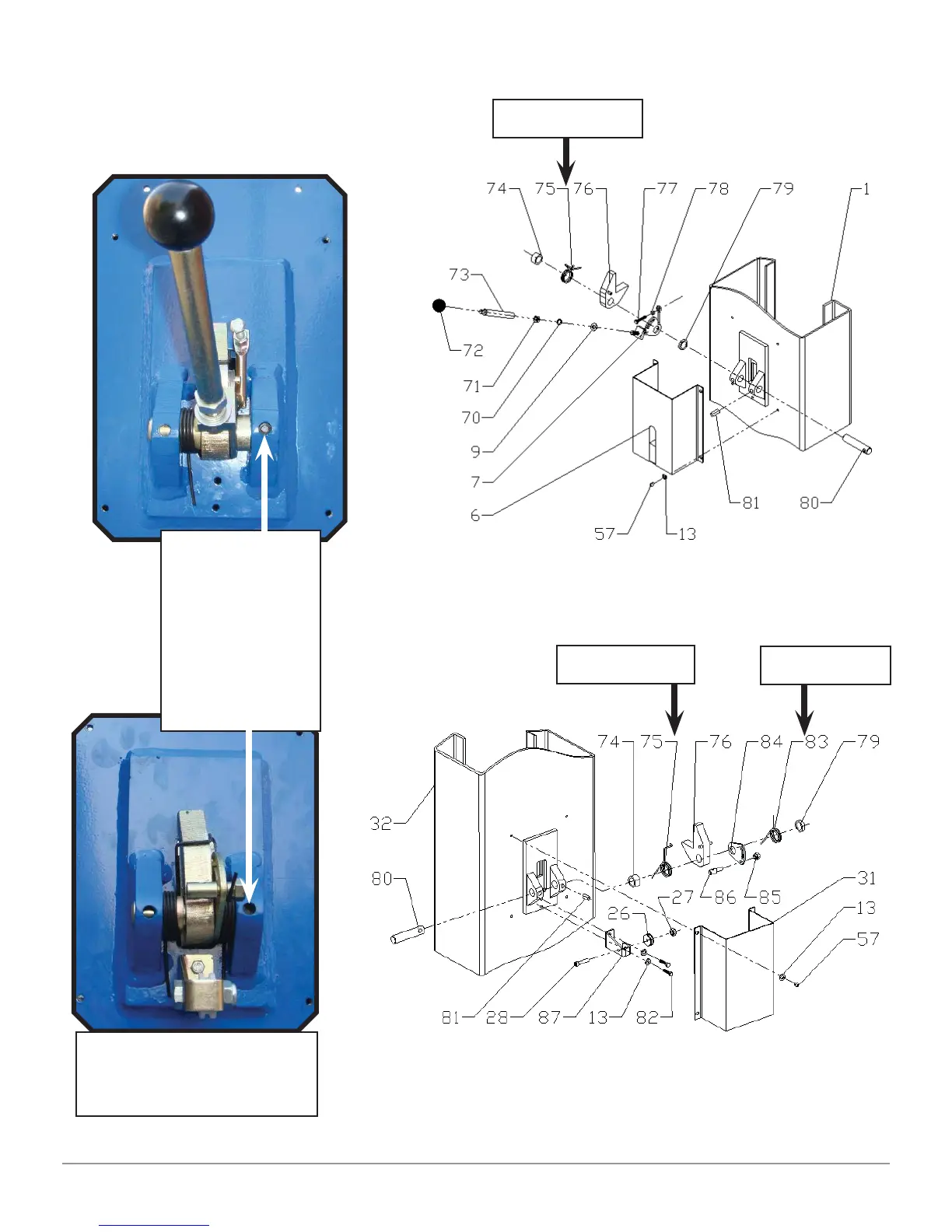

J. Install safety device.
Fig. 24 Power side safety device
Fig. 25 Offside safety device
Use M10 x 10
Allen Head
Set Screw
145° Spring
120° Spring
145° Spring
Use
M10 x 20
Hex
Head Bolts to secure
the pulley brack
et
21
23
Table of Contents
Table of Contents
3
Features
4
Specifi Cations
4
Arm Swings View
5
Tools Required
6
Installation Requirements
6
Concrete Specifications
7
Power Supply
7
Installation Steps
8
Check the Parts before Assembly
9
7. Open the Carton of Parts and Check the Parts According to Parts Box List
11
Install the Hydraulic Hose and Lock Release Cable Brackets
13
Install Hydraulic Cylinders
14
Install Columns
15
Position Columns
18
Install Overhead Top Beam
19
Install the Limit Control Bar and Limit Switch
21
Install Safety Device
22
Install Cables
24
Connecting the Cable for High Setting
25
Low Setting Cable Connection
26
Special Low Setting Cable Connection
27
Install Power Unit
28
Install Oil Hoses
29
Install Safety Cable
30
Install Hose Retainers
31
Install the Lifting Arms
32
Install Electrical System
33
Single Phase Motor
33
Four Terminal Relay
33
Exploded View
34
Cylinders View
35
Manual Power Unit View
36
Hydraulic Power Unit
37
Bleeding the Cylinders
38
Adjust Safety Lock Cable
38
Adjust Equalizing Cables
38
Test Run
38
Adjust the Lower Speed
39
Test with Load
39
Hydraulic System Diagram
39
To Lift Vehicle
40
To Lower Vehicle
40
Operation Instructions
40
Maintenance Schedule
41
Trouble Shooting
42
Parts List for Model PV-12PX
43
Warranty
49
