Installation Steps 33
PV-12P

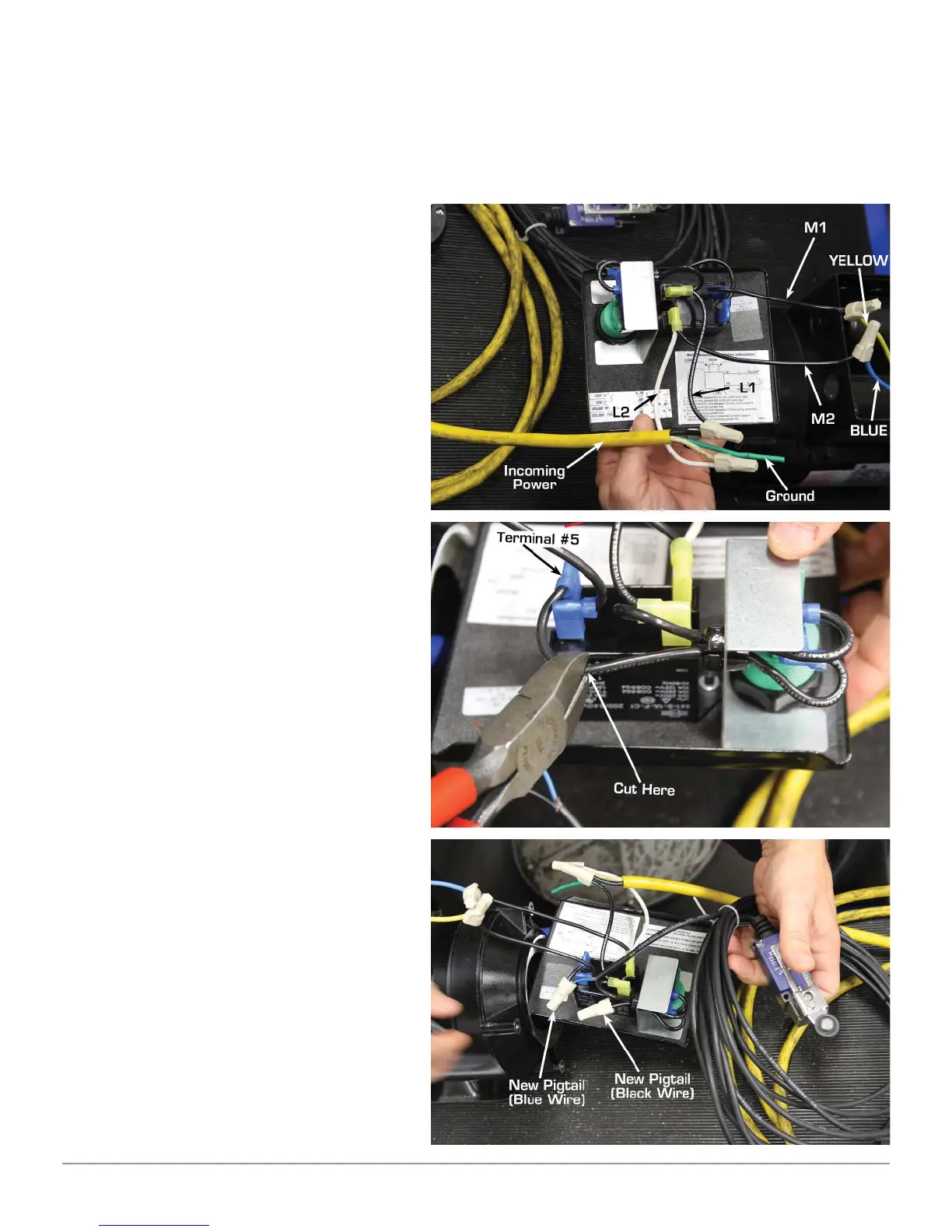

Install Electrical System
Connect the power source according to the data plate on the Power Unit.
Remove the short “Pig Tail” wire connected to the AC contactor
terminals. This wire was used to test the motor after production.
ATLAS Single phase motor
Four Terminal Relay
1) Motor Lead
a) M1 to “YELLOW”
b) M2 to “BLUE”
2) Incoming Power
a) One hot to L1
b) One hot to L2
c ) Ground to ground
3) Limit Switch
a) Cut wire from terminal #5 to
the micro switch
b) With cut wire use both limit
switch leads to make pigtails
