Installation Steps 18
PV-12P
G. Position columns
1. Position the columns so the base plates line up with the chalk line. It is
recommended to install the power side column on the passenger side of the
vehicle. Meanwhile, assemble the overhead top beam. Spread the columns
to approximately 122-5/8” from inside column to inside column. Install the
overhead top beam.
2. Level and plumb the columns and shim where necessary.
3. Drill 3/4” holes. If the top of the anchor exceeds 2 inches above the floor
grade, you DO NOT have enough embedment. Tighten the anchor bolts
between 60 and 86 foot pounds.

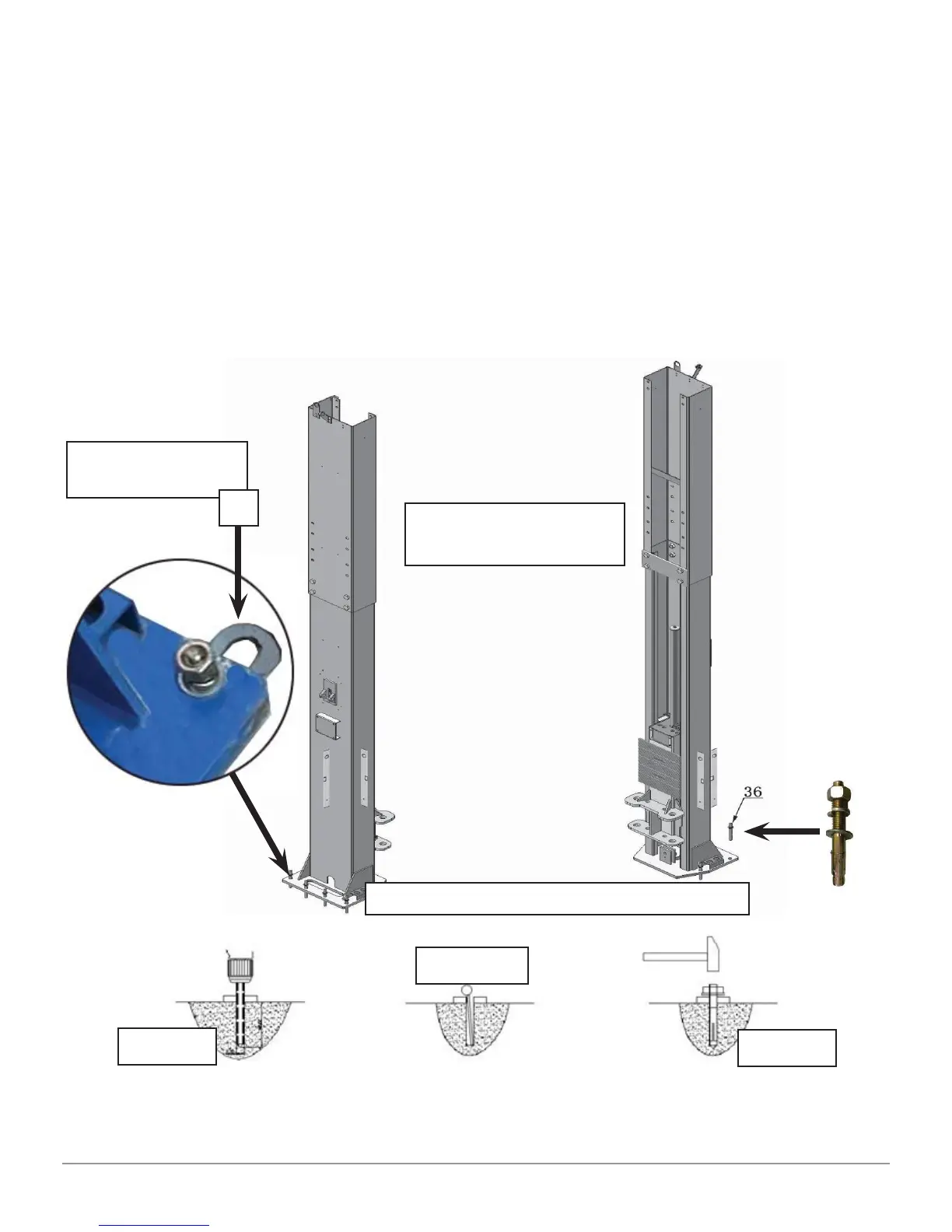

Fig. 20
Width between
columns: 122-5/8”
Adjusting with
the shims
37
Overall width: 150-3/4 in
Drilling
Cleaning
Bolting
To Next Page
