Installation Steps 17
PV-12P

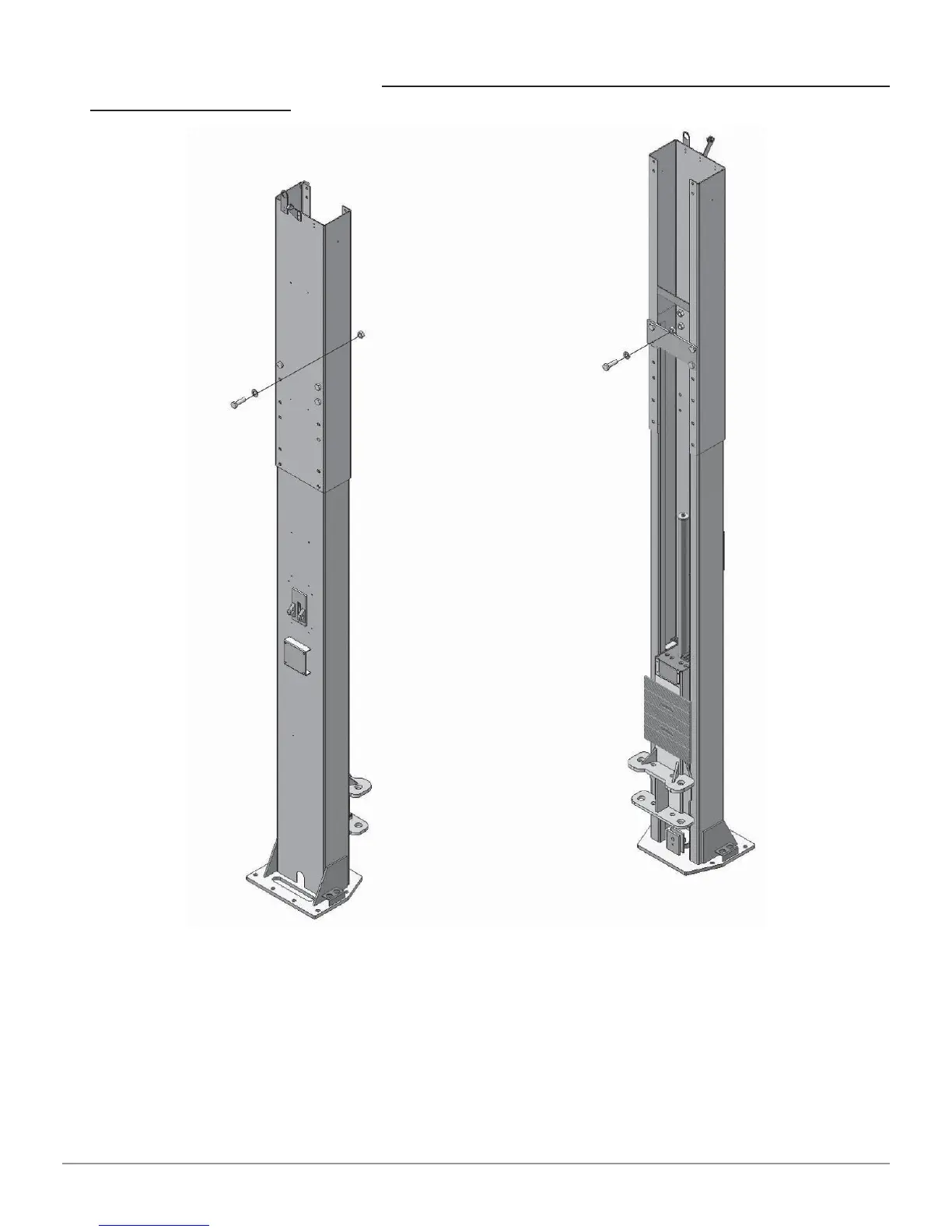

3. When the ceiling height is less than 4200mm (165 3/8”), connect the outer
columns to the upper holes. The cables are a special order option for the
extra low setting.
Fig. 19 Special low Setting
