Installation Steps 16
PV-12P

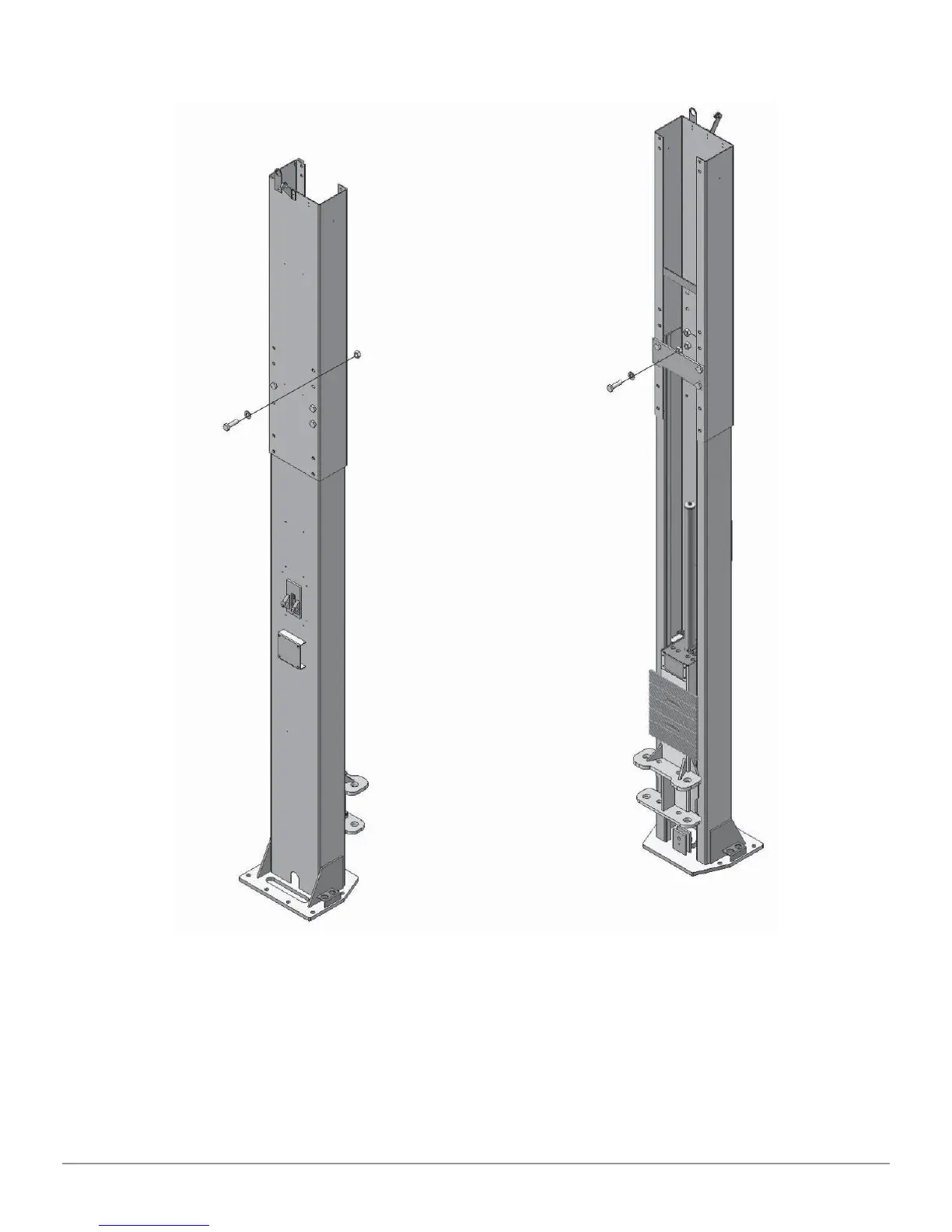

2. When the ceiling height is over 4200mm (165 3/8”) but less than 4500mm
(177 1/8”), connect the outer columns to the middle holes.
Fig. 18 Low Setting
