Installation Steps 32
PV-12P

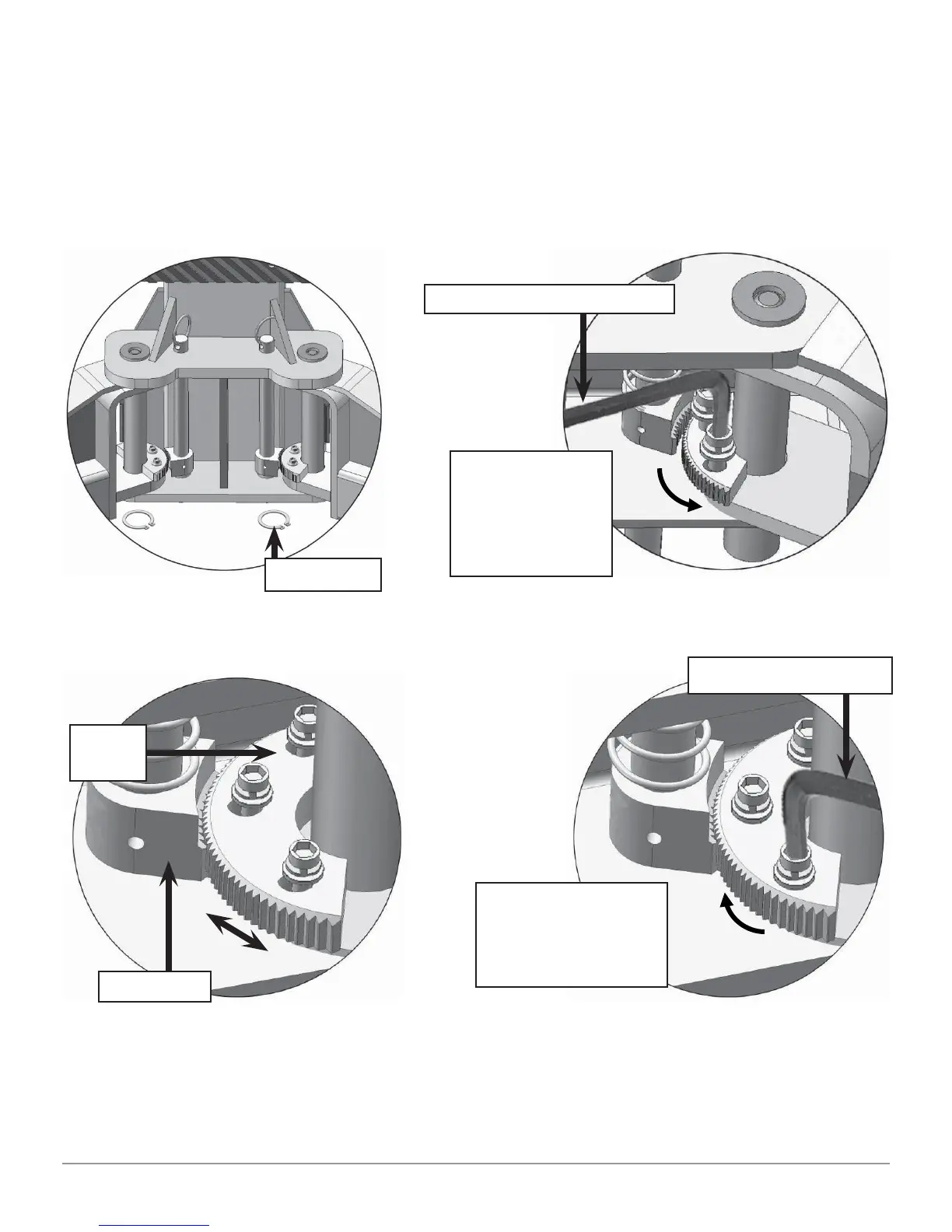

Q. Install the lifting arms.
Lower the carriages down to the lowest position, then use the 8mm Allen head
wrench to loosen the socket bolt (See Fig.37). Adjust arm lock as direction of
arrow (See Fig.38). Adjust the moon gear and arm lock so they mesh, then
tighten the Allen bolts on the arm lock (See Fig.39).
Fig. 36 Fig. 37
Fig. 38 Fig. 39
Use the 8mm
Allen Head
Wrench to
loosen the
Allen Bolt
Tighten the bolts
after the moon
gear and arm
lock engage
Moon
Gear
Loosen the Allen Bolt
Tighten the bolts
Arm lock
Snap Ring
To Next Page
