Atmos C 21 - 3.3 Connection to electrical power line

11

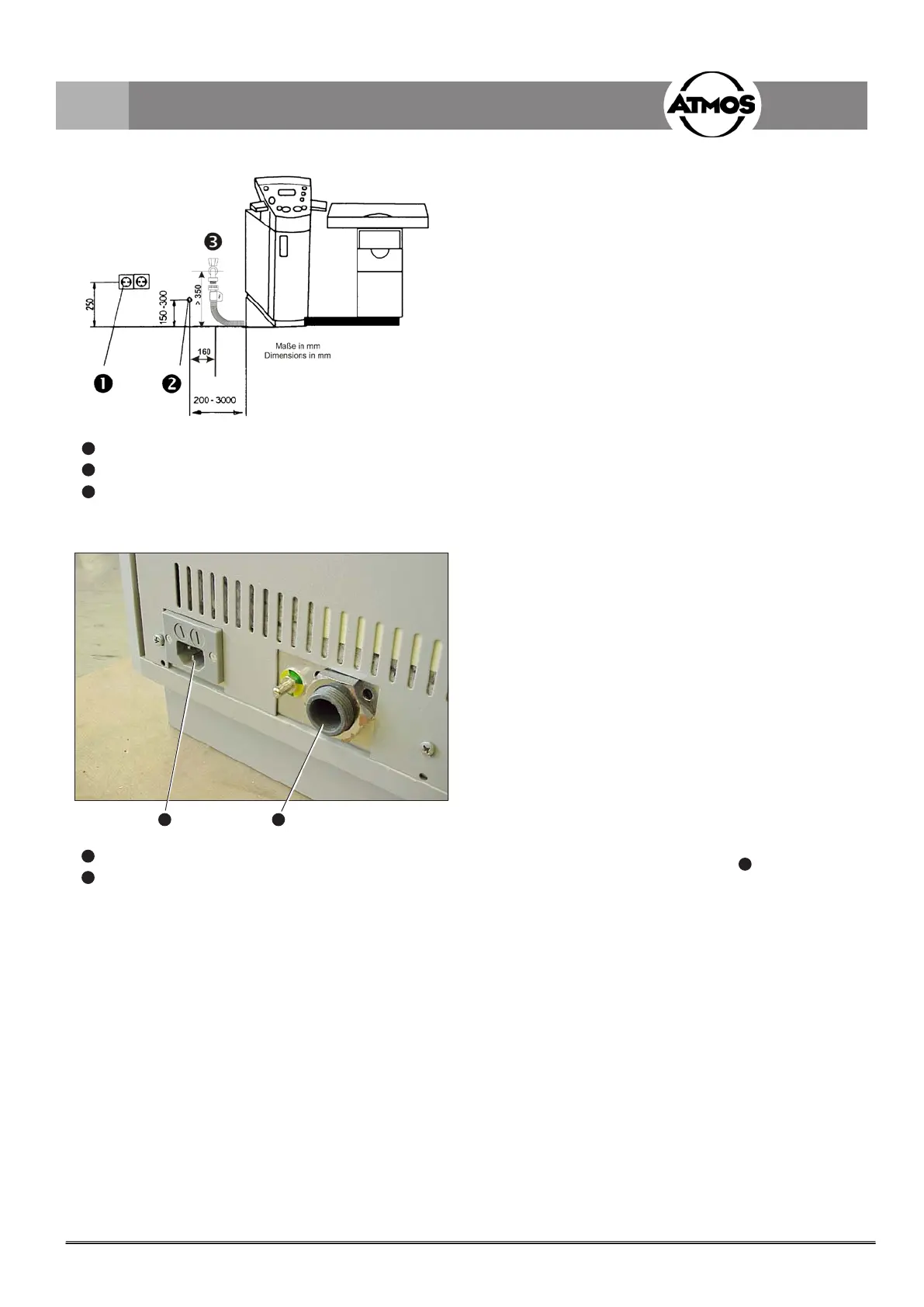

Fig. 4.
Inlet connector for non-heating apparatus
Connection for waste water hose
Fig. 3.
Socket outlets with earthing contact
Water drainage G3/4" external thread (optional)
Water supply with water tap G 3/4" external thread
(optional)
3.3 Connection to electrical power line
• According to the directions of VDE 0107 and VDE
0100, medically used rooms have to be equipped with
a leakage current protective circuit (FI protective circuit)
with a nominal leakage current of < 0.03 A. Installation
must correspond with VDE 0107.
• The ATMOS C 21 / C 31 is connected to a earthing
contact socket which is to be mounted near the unit
(max. 3 m, preferably on the left side, next to the function
column)(seeg.3).
• The current consumption of the ATMOS C 21 / C 31 is
maximum 5 A .
• For the connection of further electrical devices, please
allow for extra plugs (installation of an electrically
operated patient chair).
3.4 Water supply / Water drainage
(option)
Water supply:
Prerequisites:
• There must be existing water pipes with a G 1/2" (internal
thread). For connecting a corresponding water or ball
valve with a G 3/8" hose connection.
• This (water tap) ball valve must be installed in such a way
thatitcanbeturnedo󰀨withoutanyproblem.
• The water which is provided by the household connection
must at least meet the WHO guidelines or the country-
specicguidelinesfordrinkingwater.
• Rinse water supply line in order to remove any
contamination from the system.
• When clean water is available, connect delivery hose to
water tap mentioned above.
• Required pressure in domestic water system: > 2 bar, but
< 5 bar.
• Therearecountry-specicregulationsfortheinstallation
to be considered when the unit is connected to the public
water supply.
• Thereisnospecialcalcicationsafetydeviceintegrated
in the water system.
Such a system is to be connected when the respective
drinking water is of hardness grade 3 (14 - 21°d resp. 2.5
- 3.8 mol/m³ = hard water) but especially with hardness
grade 4 (from 21°d resp. from 3.8 mol/m³ = very hard
water). You may receive information on the hardness
gradeofyourwaterfromthewatersupplyo󰀩ce.
Water drainage (option):
Prerequisites:
• PermanentlyinstalledconnectionttingwithG3/4"
external thread.
• To adapt the 3/4” draining hose to standard HT 40
a connection adapter 510.2130.0 can be ordered
(510.2129.0 for HT 50).
• Connect waste water hose with unit (
2
,g.4)andthe
G3/4"connectiontting(insertpertainingseals!).
An anti-syphon trap is not required!
3.5 Independent water supply (only
ATMOS C 31)
If the system is not connected to a water supply, we
recommendyoutollthestoragecanisterfortheear
irrigation system with 2.0 litres of tap water or hygienically
safe drinking water.
For information on the maintenance and cleaning of the
water supply, see chapter 5.1.5 in the operating instructions.
3.0 Setting up and starting up
1
2
3
21
1
2
