Atmos C 21 - Connection of the Compressed Air Hose (Option); Connection of the Hose for Ear Irrigation; (Option, Only ATMOS C 31); Connection of the Water System (Option, Only ATMOS C 31)

13

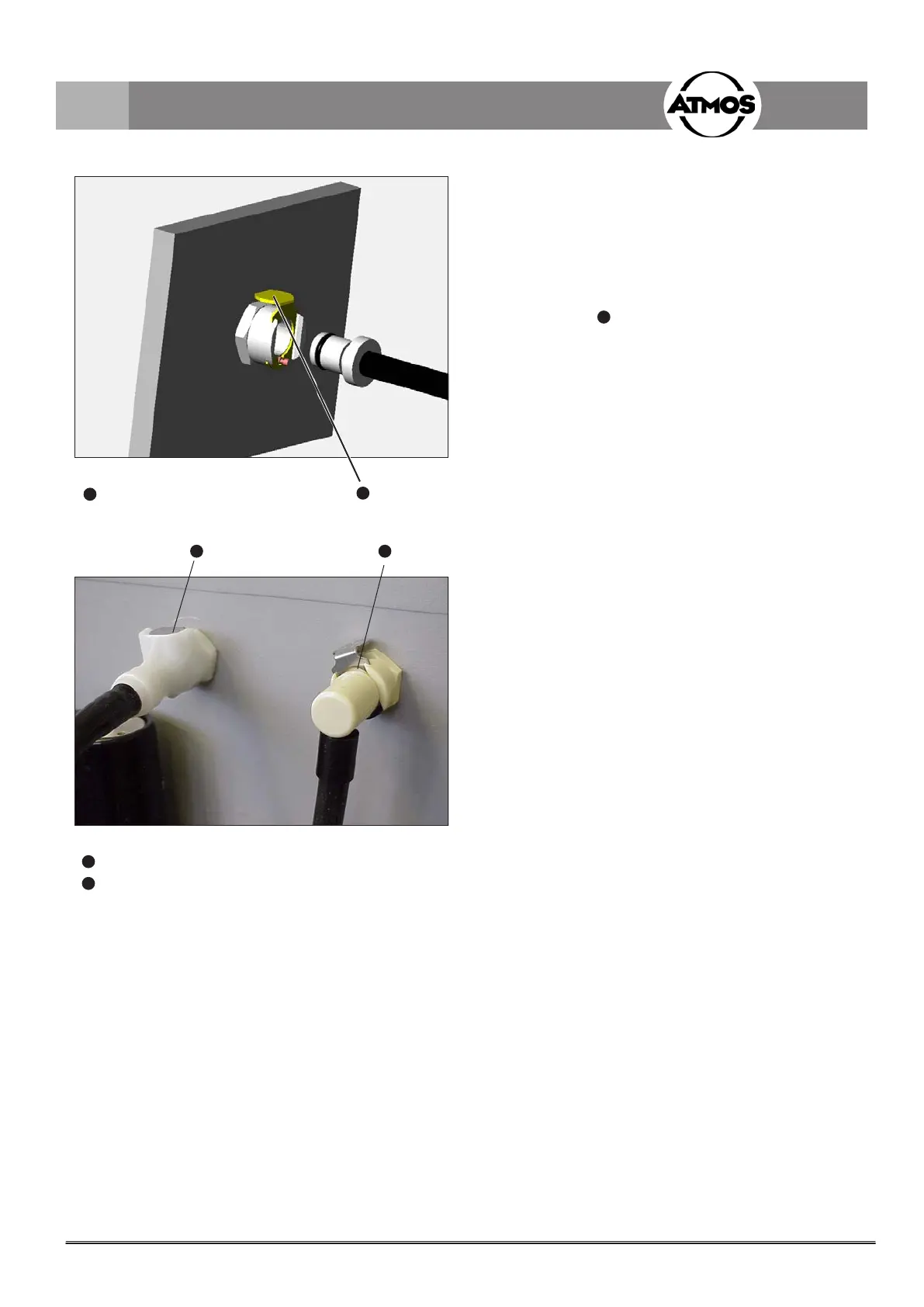

Fig. 6.
CPC coupling
3.6.5 Connection of the compressed air hose
(option)
Connection of the function hose for compressed air at the
side of the column.
• Compressed-air hose is connected by means of plug
connections; make sure that the plug attachment is
engaged. The hose is disconnected by pressing the
release slide (
1
,g.6)attheplugconnectorandby
pulling out the plug attachment.
) Push the handles into the handle support as indicated by
the symbols.
The photoelectric barriers will operate the wrong
units if the handles are transposed!
3.0 Setting up and starting up
Fig. 7. Connecting the hose for ear irrigation
Connection for the ear irrigation hose
Connection for the compressed-air hose
3.6.6 Connection of the hose for ear irrigation
(option, only ATMOS C 31)
The hose for the warm water system is screwed on the CPC
coupling.
) Di󰀨erentsocketnipples;swappingofthehosesisnot
possible!
3.6.7 Connection of the water system (option,
only ATMOS C 31)
Connect the aqua stop valve to the water tap (house
connection). Open the water tap. If the main switch is
activated and a water consuming device (basin rinsing or
hose rinsing system) is used, the water supply is opened by
an automatic opening of the magnetic valve in the aqua stop
system.
ª Thus, there is no pressure inside the water supply
hose if no water consuming device is activated.
