4.1 ATMOS C 21 / C 31 - Basic unit
TheENTunitATMOSC21/C31o󰀨ersoptimuminstrument
handling whilst at the same time providing an optimum
arrangement of all functions that an ENT specialist requires
for his daily work in the practice.
The instrument deposit area:
At the top of the functional column there is an area designed
to take medicine bottles (
4
, Fig. 1, page 8), hence the
instrument deposit area is also very suitable instruments.
There is also the facility for protective storage of less
frequently used instruments and consumables in the
drawers (
10
and
11
,g.1).
) Most of the unit's surfaces are coated with a special
texturedlacquerthatfullstherequirementsfor
workplace hygiene. However, as the lacquer is not
resistant to all medicines and disinfectants it is imperative
to wipe up splashes immediately.
4.2 Basic functions
4.2.1 Main switch
• The ATMOS C 21 / C 31 is switched ON and OFF by
means of the main switch (
1
,g.1,page8).
4.2.2 Maximum loads
• Persons must not lean on the ATMOS C 21 / C 31
(danger of tilting).
• Maximum load of the instrument surface: 15 kg.
• Maximum load of the writing and working surface: 10 kg.
• Maximum load of the second deposit surface (optional):
7.5 kg.
4.2.3 How to open the covering
• Open the unit covering up to the stop.
4.2.4 Suction system
The hose attachment must be exchanged after each patient.
) Prior to each application, proper function of the display
instruments and control valves must be checked!
• Purpose of the suction system:
- Suctionofuidsandsecretions;collectingthe
secretion in the secretion canister.
• Automatic activation of the suction mode by taking out
the suction attachment.
• Control of the suction performance via the rotary knob for
vacuum control (
2
,g.9).
!

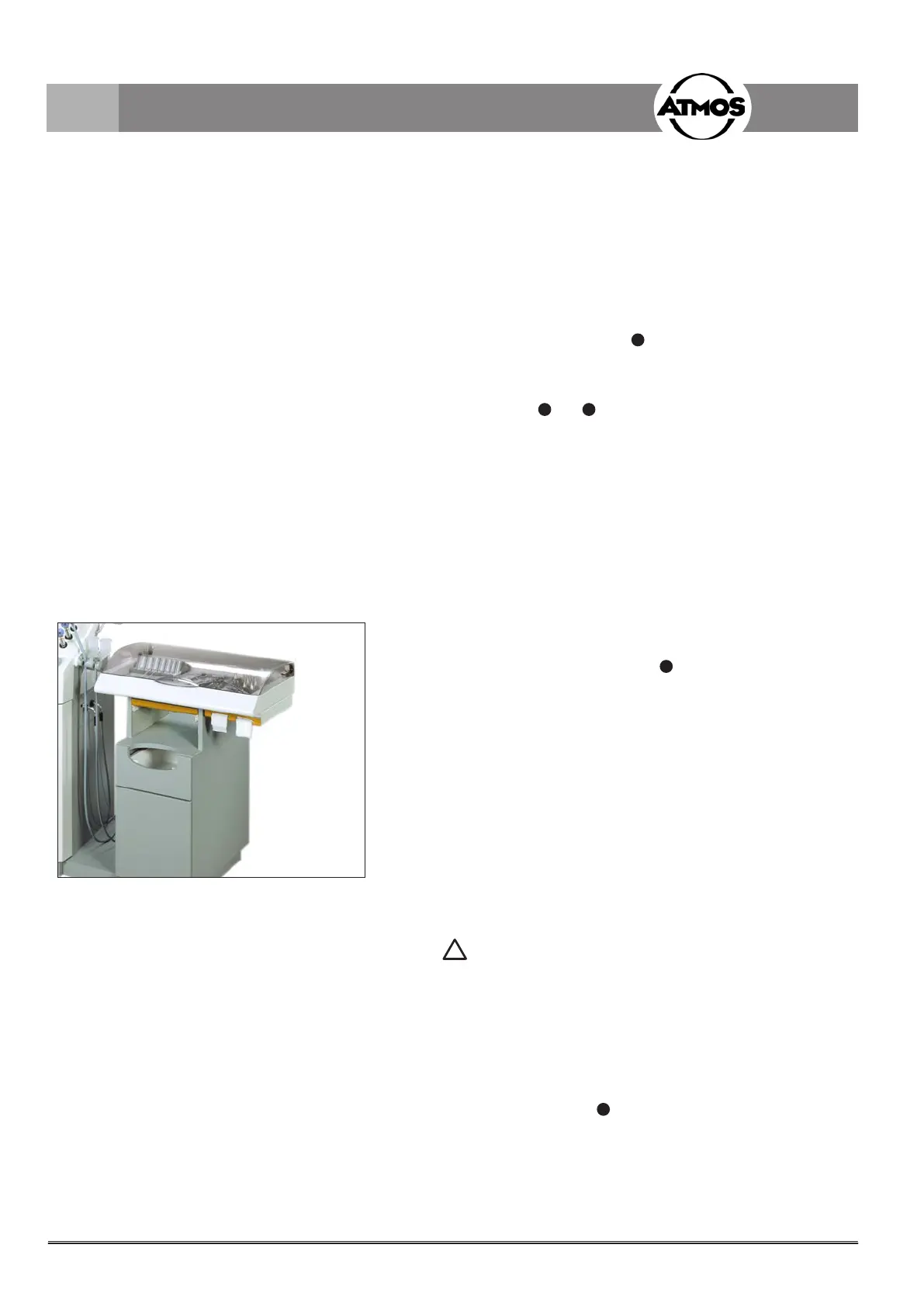

Fig. 8. Maximum load
max.
15 kg

