4.3.1 Secretion canister evacuation, fully-
automatic (option)
• Purpose:
- Prevents interruption of work in practice.
- Secretion is not held in canister over a longer period
of time.
- Preventscontactofsta󰀨withsecretion.
• Activated automatically when:
- Reachingtheupperllinglimit(electrodes).
- Returning suction attachment to holder.
) The tube cassette of the tube pump is a wear part and
must be replaced at regular intervals (see chapter 6.3)!
) Pay attention to cleaning described in chapter 5.0!
4.3 Options

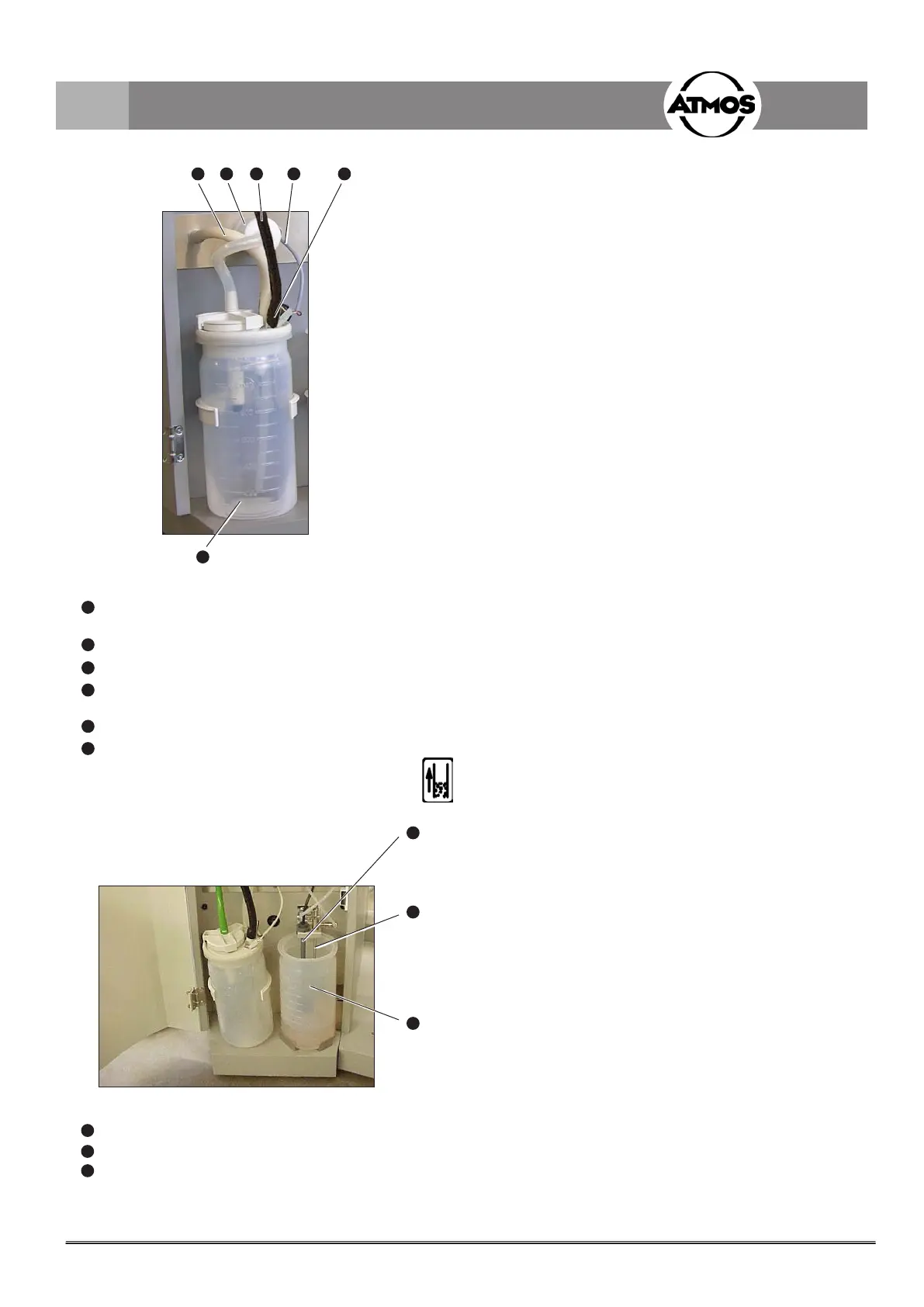

Fig. 15. Service compartment
Hose for automatic secretion canister evacuation
(optional)
Connecting nipple with hose to the vacuum pump
Secretion hose
Connecting electrodes for automatic secretion canister
evacuation (optional)
Attachment for secretion hose
Secretion canister
4.0 Operation
4.3.2 Hose rinsing system (option)
After use, the suction system must be rinsed by means of
the hose rinsing system.
• Insert the silicone suction attachment onto the white
attachment of the hose rinsing (front of the unit) and
clean the hose system by rinsing the hose for a few
seconds.
ª This procedure will prevent the hoses and suction
cannula from clogging up.
Thecanisterfortherinsinguidofthehoserinsingis
located in the service compartment at the front of the unit.
For optimum cleaning, add the ATMOS special cleanser (Art.
No. 080.0006.0) to the rinsing liquid. Optionally the canister
canbeautomaticallylledupwithfreshwater.Watersupply
is then controlled by a level switch. A safety switch beside
thecanisterinthecanistersupportpreventsoverowing,in
casethecanisteroverowsorisnotavailable.
) The suction attachment of the hose rinsing system may
be contaminated. Therefore, it must be cleaned and
disinfected daily!
Fig. 16.
Float switch
Pipe for the hose rinsing system
Hose rinsing canister
