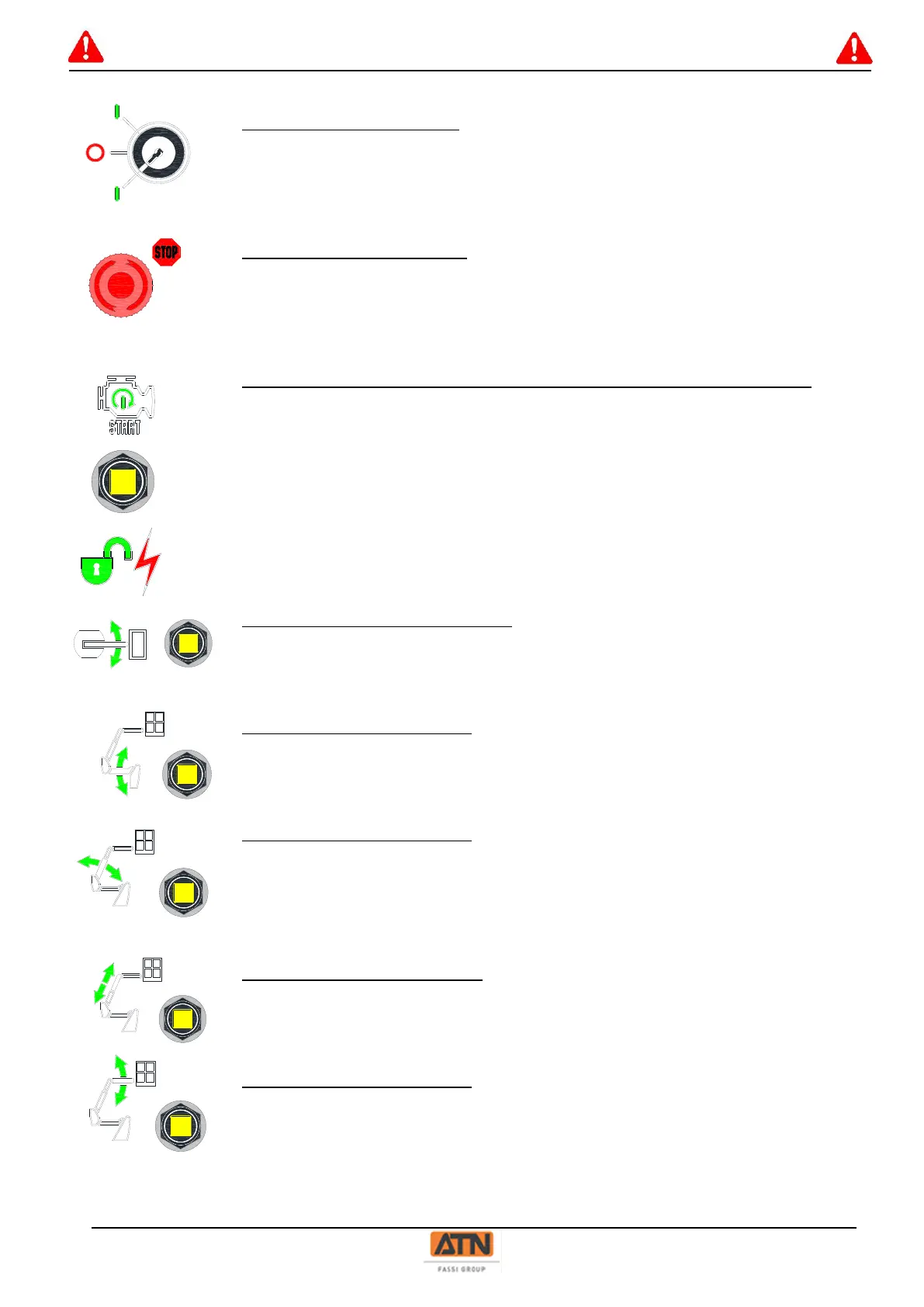

2- Control station selector:
Used to activate the controls from the platform control station or from the
ground control station. In O position, the key may be removed to power
down the machine.
3- Emergency Stop Switch:
In the event of an emergency, PRESS the button to CUT all the machine's
movements and shut down the combustion engine. Turn the button by a 1/4
turn to restore the electrical power.
4- Combustion engine Preheat-start / Enable / Auxiliary group button:
• Starting the combustion engine: tilt and hold the switch upwards until the
engine starts up.
• Control enable: With the combustion engine running, tilt and hold the
switch downwards to activate the movement controls.
• Auxiliary hydraulic power unit: when the combustion engine is stopped,
tilt and hold the switch downwards to activate the auxiliary hydraulic
power unit and the movement controls.
Refer to Section 4.2 – Combustion engine operation.
Refer to Section 7.1.3 – Auxiliary hydraulic power unit.
5- Right / Left orientation control:
Tilt the switch in the direction of the arrow corresponding to the desired
movement.
Refer to Section 4.4.5 – Structure Orientation.
6- Arm 1 Up / Down control:
Tilt the switch in the direction of the arrow corresponding to the desired
movement.
Refer to Section 4.4.2 – Elevation.
7- Arm 2 Up / Down control:
Tilt the switch in the direction of the arrow corresponding to the desired
movement.
Note: it is advised to first retract the telescope fully.
Refer to Section 4.4.2 – Elevation.
8- Telescope In / Out control:
Tilt the switch in the direction of the arrow corresponding to the desired
movement.
Refer to Section 4.4.3 –Telescope.
9- Arm 3 Up / Down control:
Tilt the switch in the direction of the arrow corresponding to the desired
movement.
Refer to Section 4.4.2 – Elevation.
