ATN Zebra 16 User Manual

OPERATOR’S AND SAFETY HANDBOOK
1NO0060EN-00
Zebra 12 – Zebra 16
73

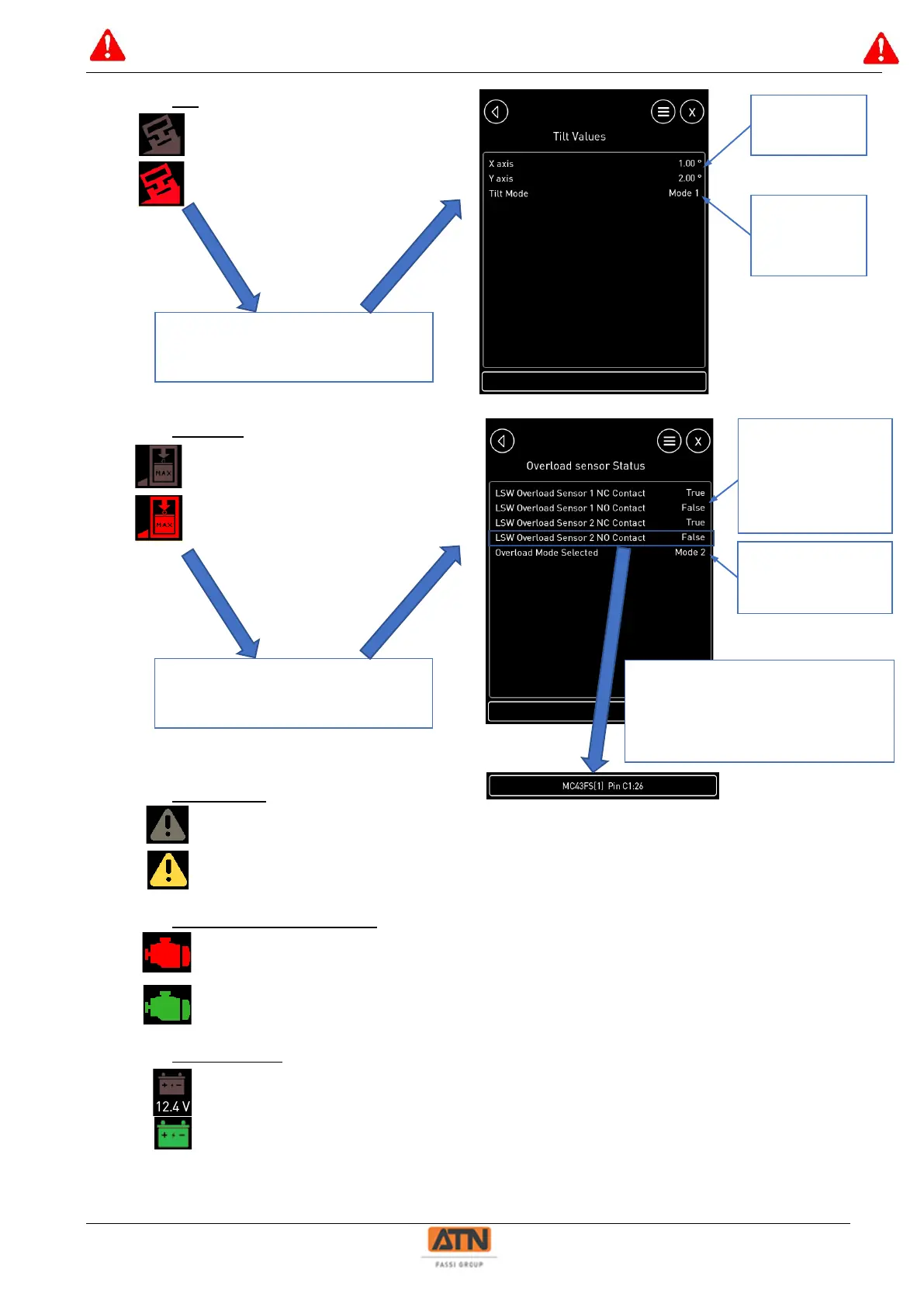

- Tilt:
Tilt condition not reached.
Tilt condition reached.
- Overload:
Overload condition not reached.
Overload condition reached.
- Active faults :
No active faults/errors
Active faults/errors
- Combustion engine indicator:
Engine not started or fault (Oil pressure, cooling fluid temperature > 110° or Alternator – voltage
< 11.5V and engine started)
Engine started without active fault
- Battery voltage:
Battery voltage value (on the module MC43FS terminals)
Battery voltage > 13.2V
When clicking on the tilt symbol, you
will access the corresponding
information.
When clicking on the overload
symbol, you will access the
corresponding information
Tilt current
values
Selected tilt
mode (See
Settings 8A3)
Contact current
values of the
sensors 1/2
0 = Inactive
1 = Active
Selected Overload
mode (See
Settings)
When clicking on a line, the
location of the corresponding entry
will be displayed in the area at the
bottom (Module name, Connector
number/pin)
