Atomos Ninja-2 User Manual

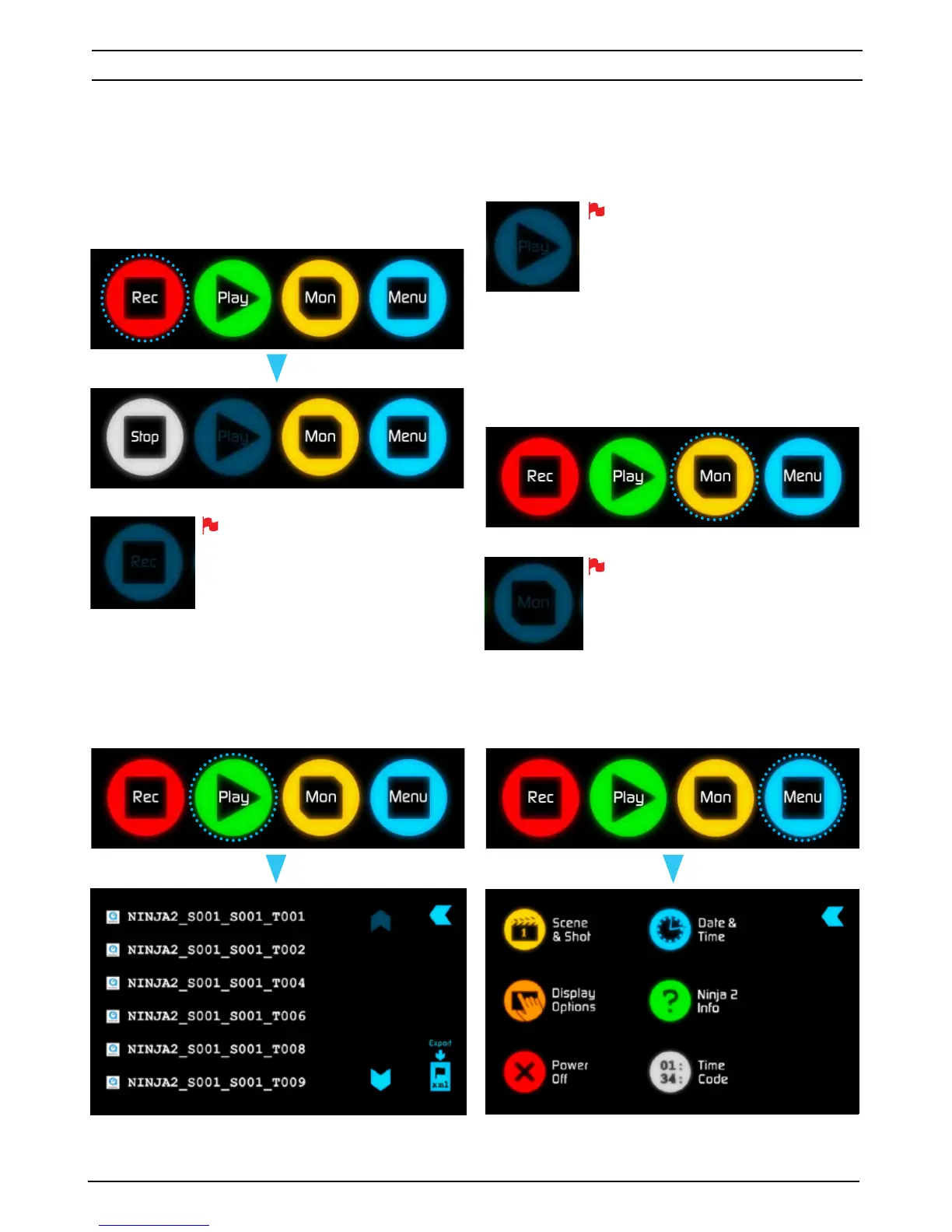

Home Screen and Menu Functions
5HF5HFRUG
This is the icon you touch to begin a recording. Touch it again to stop a
recording. While recording the 5HF icon changes to a 6WRS icon. Once
your recording has started you have the option to touch the
0RQ icon to
view the signal you are recording.
STANDBY
RECORDING
The 5HF icon is dimmed and disabled if there
is no valid video input OR if the disk is full. The
buttons is dimmed because you cannot record.
NO INPUT
3OD\
Touch this icon to play previously recorded clips. When you press the
green
3OD\ button you will be taken to the navigation screen.
STANDBY
NAVIGATION
Ninja-2 uses a XQLWQDPH VFHQH VKRW and WDNH convention
to name the clips. Select the clip you want to play by touching the file
name and this will start to playback.
The 3OD\ button will be dimmed and disabled if
there is no disk or the disk is not formatted.
See page 14 - Formatting disks
NO DISK
0RQ0RQLWRU
Pressing this icon connects the incoming video signal to the screen, so
that you can use the Ninja-2 as a field monitor. More about monitoring in
the next section, Monitoring and Recording.
STANDBY
The 0RQ icon is dimmed and unselectable if there
is no valid video input.
NO INPUT
0HQX
Pressing this takes you into a number of options which will
explained next.
STANDBY
MENU
7. Using the Ninja-2
Atomos Ninja-2 – User Manual Edition 1: November 2012 11

Atomos Ninja-2 Specifications

General

Display resolution	800 x 480 pixels
Aspect ratio	4:3, 16:9
Product color	Black
Playback resolutions supported	HD 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, \\r 1080p24, 1080p23.98, 1080p30(60i), 1080p25(50i), \\r 1080p24(60i), 1080p23.98(60i), 720p60, 720p59.94, \\r 20p50, SD 486i59.94, 576i50
HDMI ports quantity	4
HDD size	2.5 \
HDD interface	Serial ATA
Maximum HDD capacity	1000 GB
Number of HDDs supported	1
Power consumption (max)	6.8 W
Power consumption (typical)	3.3 W

Weight and Dimensions

Weight	670 g
Dimensions (WxDxH)	115 x 87 x 41 mm
