Atomos Ninja-2 User Manual

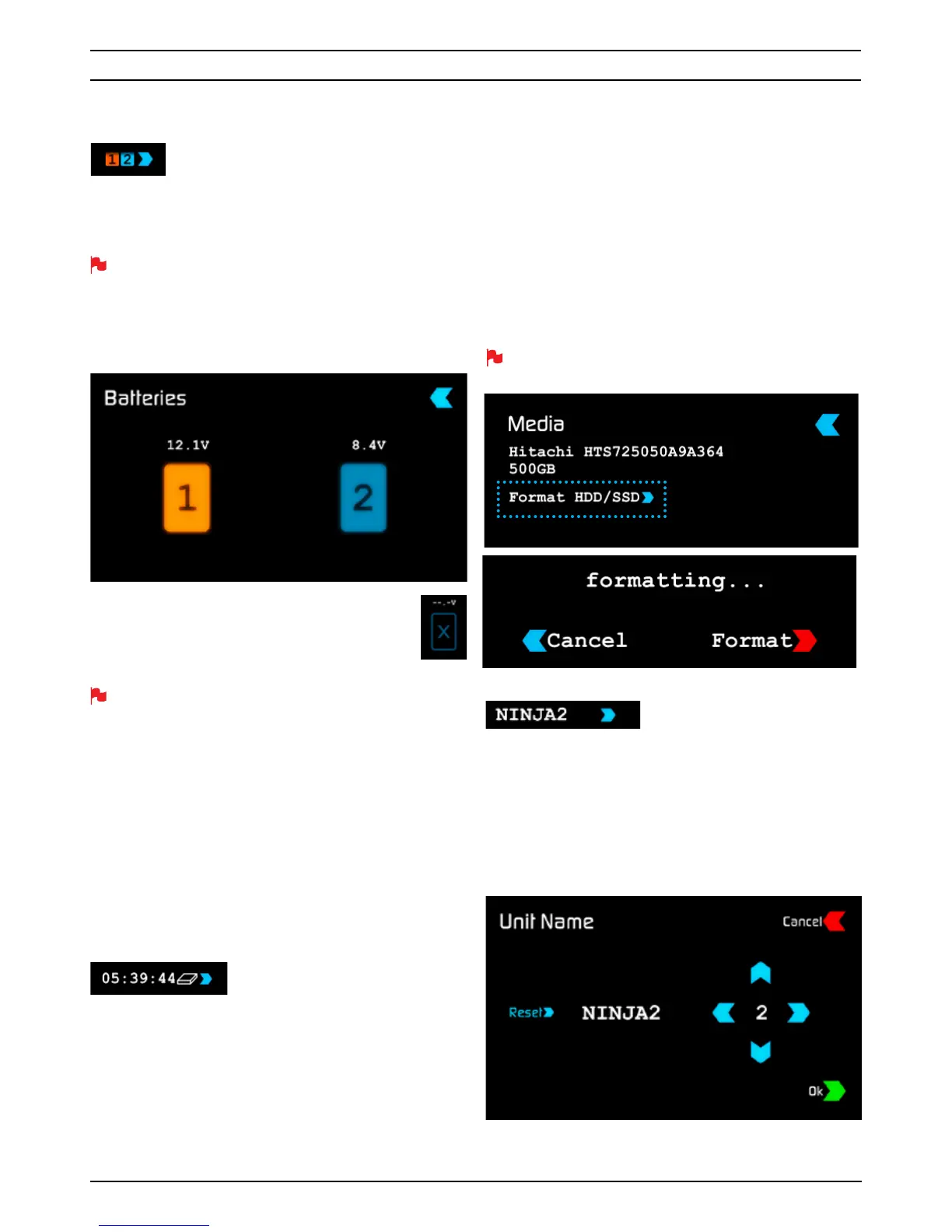

Atomos Ninja-2 – User Manual Edition 1: November 2012 13
%DWWHU\,QGLFDWRU
Shows whether you’ve got one or two batteries connected. If there is no
battery connected a number will not be displayed in the appropriate slot.
Tou ch in g the %DWWHU\ ,QGLFDWRU takes you to the %DWWHULHV
screen where you can closely monitor the status of the Batteries.
When a battery is running low its icon will flash.
BATTERIES SCREEN
The Battery screen indicator is made up of two Battery icons, the active
battery is shown in orange and the level of each battery is shaded in 1/4
increments with a voltage level shown on top.
In the picture above we see Battery 1 is full and active and
Battery 2 is currently inactive and 1/4 depleted. If no battery
is present it will show an X in the picture and will be Black in
colour as pictured right.
Warning: If both of the batteries are fully depleted, the unit will
turn itself off. The Ninja-2 will switch to the battery screen for the
last 5 seconds of available power before shutting down, alerting you
that shutdown is about to occur.
AUTO SWITCHING/MANUAL SWITCHING
The Ninja-2 will automatically switch to a new battery when the current
battery is depleted. You may also switch between batteries at any
time by pressing on that battery icon. The new active battery will then
turn orange. You may need to use this if you have for example 3 hours
recording but only 2.5 hours of battery in one battery, in which case you
would change to a freshly charged one.
6WRUDJH&DSDFLW\,QGLFDWRU
Located in the bottom right of the screen. When a disk is inserted, the
6WRUDJH&DSDFLW\,QGLFDWRU will show the recording
capacity of the drive in hours minutes and seconds, based on the
currently selected video compression, which of course, will determine the
recording bitrate.
FORMATTING HDD/SSD
Tou chi ng th e 6WRUDJH&DSDFLW\,QGLFDWRU on the home
screen will take you to the Media Information and Format screen. Media
Information indicates the drive you have present, in this case a Hitachi
500GB spinning disk.
Tou chi ng
)RUPDW+''66' will format the drive inside the Ninja-2.
A confirmation screen will give you the choice to continue or cancel the
process.
If you do not see your hard drive information, there may be a problem
with your connection. Try ejecting the drive and trying again.
Also check the drive compatibility list: http://atomos.activehosted.
com/kb/article/what-drives-do-we-recommend
The Ninja-2 file system is exFAT. We recommend that you format each
disk with the Ninja-2 and not your computer.
8QLW1DPH
The XQLW QDPH serves two main purposes:
• HDD Naming: Naming the unit names the drive if the drive is
formatted after the unit name has been set
• File Naming: File name is the current unit name as the start of the
recorded clip name;
1LQMDB6B6B7
To ac ce ss th e u ni t na me scre en s im ply t ou ch th e EOXH DUURZ to the
right of the unit name. Creating your own unit name is simple. Pressing 2.
will allocate the new unit name and return you to the menu screen.
7. Using the Ninja-2

Atomos Ninja-2 Specifications

General

Display resolution	800 x 480 pixels
Aspect ratio	4:3, 16:9
Product color	Black
Playback resolutions supported	HD 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, \\r 1080p24, 1080p23.98, 1080p30(60i), 1080p25(50i), \\r 1080p24(60i), 1080p23.98(60i), 720p60, 720p59.94, \\r 20p50, SD 486i59.94, 576i50
HDMI ports quantity	4
HDD size	2.5 \
HDD interface	Serial ATA
Maximum HDD capacity	1000 GB
Number of HDDs supported	1
Power consumption (max)	6.8 W
Power consumption (typical)	3.3 W

Weight and Dimensions

Weight	670 g
Dimensions (WxDxH)	115 x 87 x 41 mm
