Atomos Ninja-2 User Manual

Atomos Ninja-2 – User Manual Edition 1: November 2012 30
13. Using Ninja-2 with external power supplies
14. Using Ninja-2 with Atomos Connect Converters

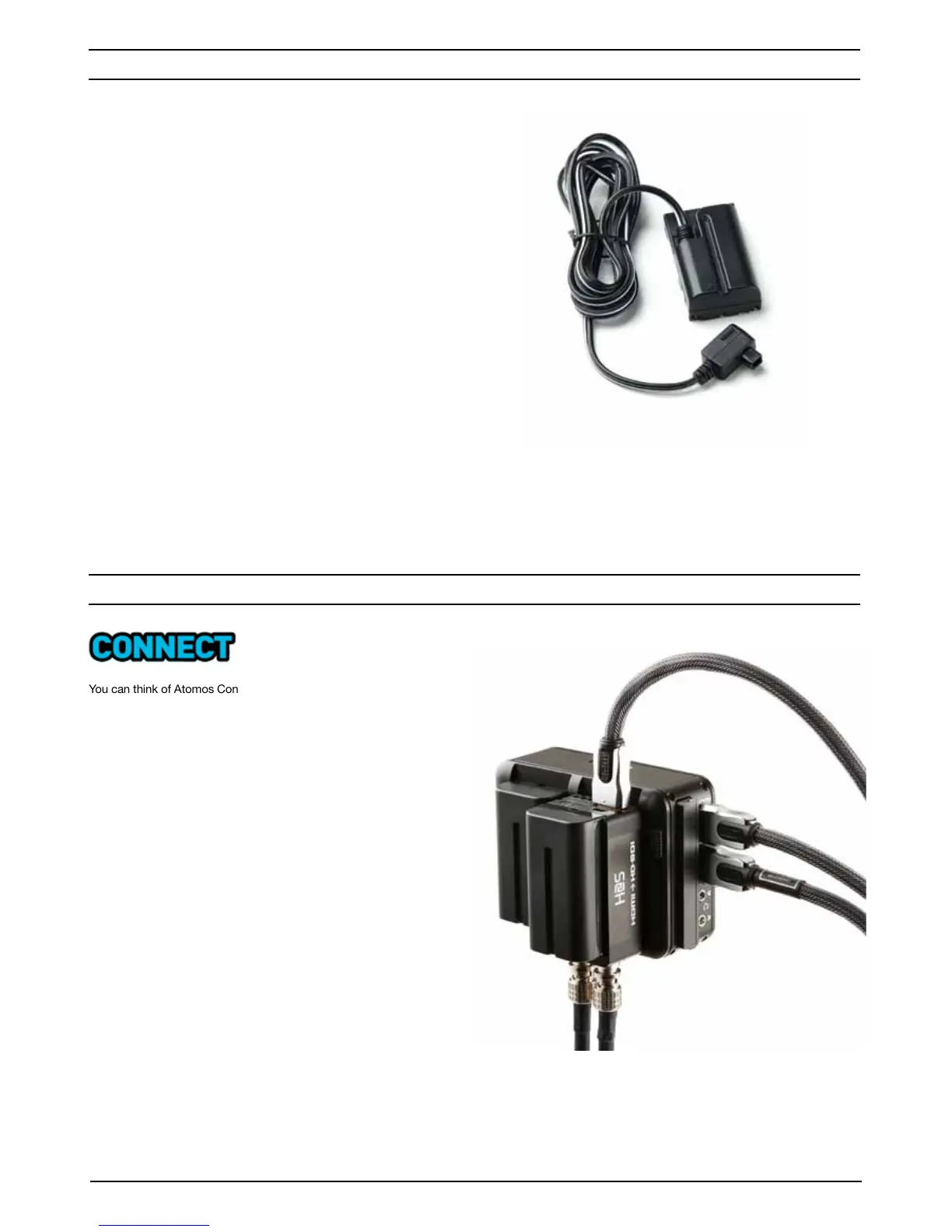

D-Tap Connector
This adaptor allows you to take the power supply from any source that
has a D-Tap connection such as V-Lock
The D-Tap also connects to the battery slot of the Ninja-2, please ensure it
is in slot 1. There will be a D-Tap to D-Tap cable. Voltages up to 20.0V.
AC Adaptor (not included)
Available from your reseller as an optional accessory, this connects on
the battery slot on the back of the Ninja-2. Please ensure it is connected
to slot 1. The end of the adaptor will connect to a mains plug.
Alternatively you can use any NP-Compatible Charger or power supply,
as long as they use a “Dummy Battery”.
You ca n thi nk of At omo s Co n nec t C on ver ter s as sta nd- al one de vi ces
or as specially designed modules to give the Ninja-2 additional
capabilities. With them you can:
• Add an HD-SDI input to the Ninja-2 for connection to
non-HDMI devices
• Add an HD-SDI output to the Ninja-2 for playout to HD-SDI monitors
There is nothing to set up when you use a Connect Converter. Just
secure the device in a battery slot (in Slot 1 if you only have a single
battery) and place the battery that previously occupied that slot in the
battery slot on the converter.

Atomos Ninja-2 Specifications

General

Display resolution	800 x 480 pixels
Aspect ratio	4:3, 16:9
Product color	Black
Playback resolutions supported	HD 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, \\r 1080p24, 1080p23.98, 1080p30(60i), 1080p25(50i), \\r 1080p24(60i), 1080p23.98(60i), 720p60, 720p59.94, \\r 20p50, SD 486i59.94, 576i50
HDMI ports quantity	4
HDD size	2.5 \
HDD interface	Serial ATA
Maximum HDD capacity	1000 GB
Number of HDDs supported	1
Power consumption (max)	6.8 W
Power consumption (typical)	3.3 W

Weight and Dimensions

Weight	670 g
Dimensions (WxDxH)	115 x 87 x 41 mm
