12. Connecting and Editing
Connect
To access and edit your recorded material, connect the Master Caddy
Docking Station to a Mac
®
or Windows
®
editing workstation via USB 2.0,
USB 3.0 or FireWire
®
800 port.
Eject the Master Caddy from your Ninja-2 and insert it into the Docking
Station. After a short wait, the recorded video will be accessible to the
target computer via a standard disk (exFAT) file system.
NLE supported
We have chosen the Apple Pro-Res codec as it is not only visually lossless
but is an edit-ready format. All major NLE support Apple ProRes
®
.
• Final Cut Pro (version 7)
• Final Cut X
• Adobe CS5 (with 5.51 update)
• EDIUS 6
• Sony Vegas 10
• Lightworks
• AVID Media Composer 6
Avid DNxHD
®
support is available as an optional download.
ExFAT compatibility
The Ninja-2 formats your disk as exFAT. We have chosen this file system to
overcome the 4GB file limitation of FAT32 and keep compatibility on both
Windows and MAC OS.
The Operating Systems that support exFAT are:
• Windows XP - install the following update :
http://www.microsoft.com/download/en/details.aspx?id=19364
• Windows Vista - install SP1 or higher
• Windows 7 (32/64bit)
• Snow Leopard 10.6.5 or higher
• Lion 10.7

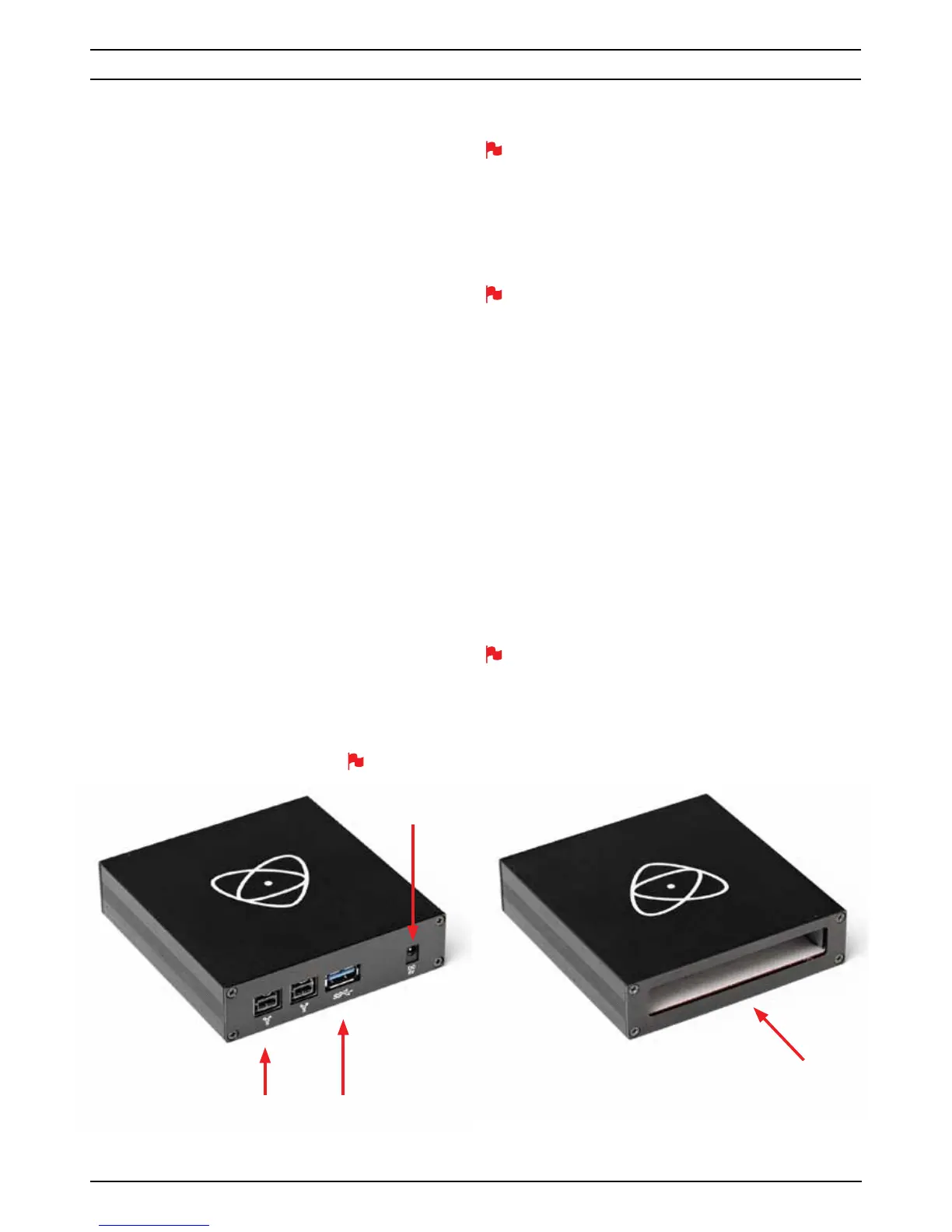

The Master Caddy Docking Station is a sophisticated device
supporting three different data interfaces: Firewire 800, USB 2 and
USB 3. Note that when using the Master Caddy Docking Station you
may need to connect an additional USB cable to the 5v power input.
This is because when it has to power a disk drive and its interface
electronics, the Docking Station may consume more power than is
available from a single USB port. We supply you with a USB to 5v
Power Supply socket for this purpose .
Do not connect the USB power cable if you are using Firewire® 800.
You may find that your docking station does not work with the Apple
Lion operating system if you use Firewire® 800. This is a temporary
situation and will be remedied with a firmware update as soon as
possible. Meanwhile, please use a USB connection for accessing your
Ninja-2 files.
Transferr ing Files
Now your docking station is connected and your disk is recognised by
your operating system, you can edit directly from the drive or copy the
files to your own storage.
Windows
Open the disk in My Computer > Select all the files or just the ones you
wish to transfer, copy and paste them to your desired location.
(command+c copy, command+v paste).
Mac OS
Your Ninja-2 disk will show in Finder. Select the files you wish to transfer,
drag the files to your desired location or use the copy and paste
commands.(๏+c copy, ๏+v paste).
If you have used a FAT32 formatted disk in the Ninja-2 this will have a
folder structure Scene, Shot, Take. This will mean you either transfer all
the folders or utilise the Windows Search or MACs automate program
to transfer just the .mov files. There are instructions on this in our
knowledge base; visit www .atomos.com/support for more info.
Firewire
®
USB

Atomos Ninja-2 Specifications

General

Display resolution	800 x 480 pixels
Aspect ratio	4:3, 16:9
Product color	Black
Playback resolutions supported	HD 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, \\r 1080p24, 1080p23.98, 1080p30(60i), 1080p25(50i), \\r 1080p24(60i), 1080p23.98(60i), 720p60, 720p59.94, \\r 20p50, SD 486i59.94, 576i50
HDMI ports quantity	4
HDD size	2.5 \
HDD interface	Serial ATA
Maximum HDD capacity	1000 GB
Number of HDDs supported	1
Power consumption (max)	6.8 W
Power consumption (typical)	3.3 W

Weight and Dimensions

Weight	670 g
Dimensions (WxDxH)	115 x 87 x 41 mm
