Atomos Shogun flame User Manual

*Subject to change without notice Atomos Shogun Flame – User Manual Edition 1: May 2016 10

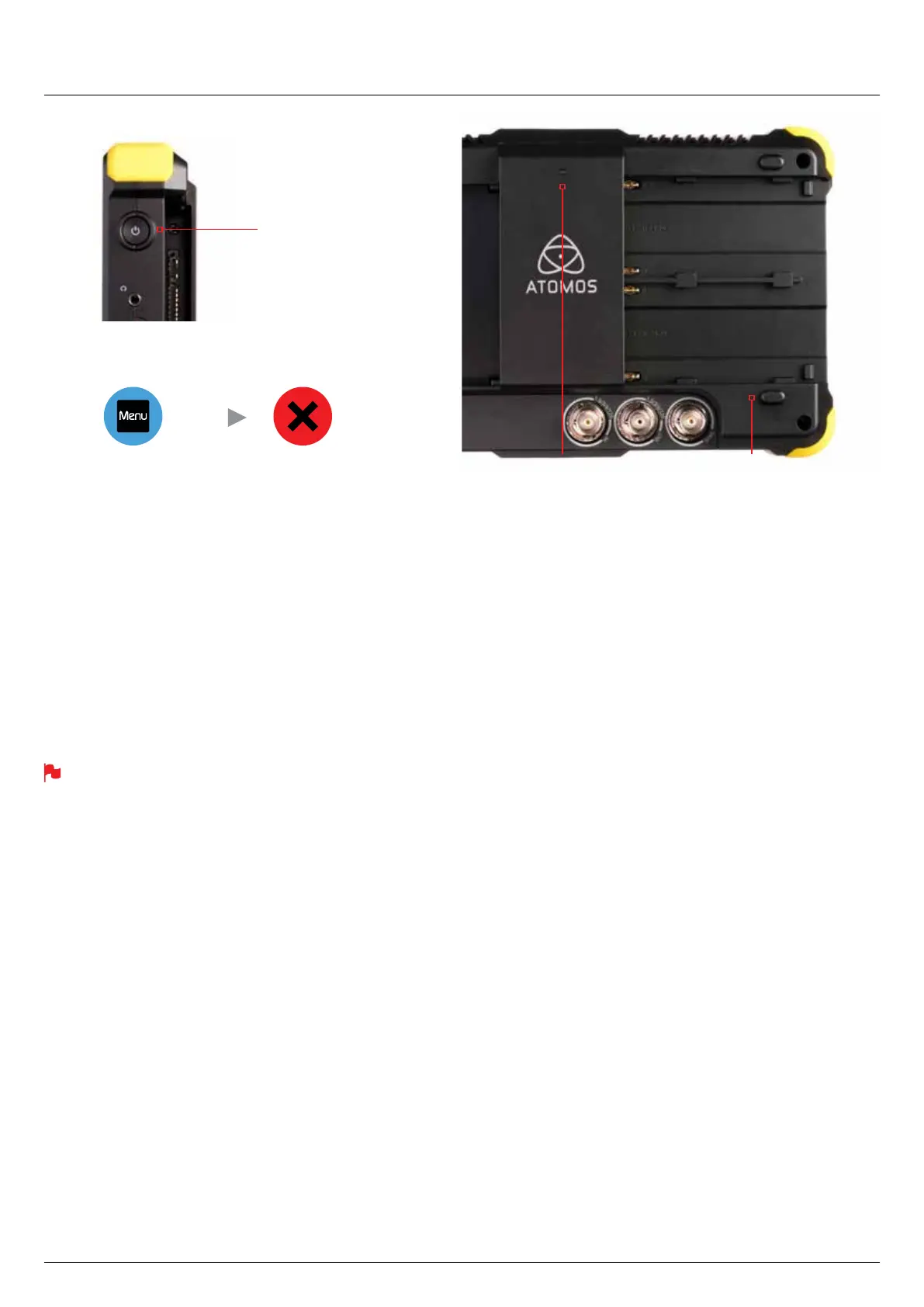

Turning ON power to the Shogun Flame
The start button is located on the top right hand side of the unit (as you
look at the screen). Momentarily press the circular button on the top right
side of the Shogun Flame as you look at the screen to power up the unit.
After a couple of seconds you will see the Atomos logo, and then the
Shogun Flame Home Screen.
Turning OFF power to the Shogun Flame
To turn the unit off, touch menu on the home screen, and then press the
red Power off icon for 3 seconds the icon will go white when touched to
indicate activation of the button. The unit will then power off. You can also do
a forced power down by depressing the on/off button for three seconds.
Three seconds can seem like a long time! We’ve made it this
way to make absolutely certain that the Shogun Flame can’t be turned
off accidentally.
4. Connecting the Shogun Flame and powering up cont.
Turning OFF power via touchscreen
On
+ forced power down
Menu Power off
Tally Light
Flashes red when recording
Baery latch

Atomos Shogun flame Specifications

General

Display resolution	1920 x 1200 pixels
Audio system	48kHz, 24-bit
Product color	Black, Yellow
USB connectivity	Yes
Video capturing speed	120 fps
BNC input ports	1
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (max)	24 W
Cables included	DC, XLR-6.3 mm

Weight and Dimensions

Weight	650 g
Dimensions (WxDxH)	214 x 45 x 127 mm
