*Subject to change without notice Atomos Shogun Flame – User Manual Edition 1: May 2016 8
3. Mounting disks in the Master Caddy II
Mounting drives in the Master Caddy II
Insert the disk into the caddy, and secure with four screws. The caddy is
light and the disk just needs to be held securely. Don’t over-tighten the
screws. There are no connections to make because sliding the caddy
into the Shogun Flame or the Docking station makes all the connections
for you.
The Master Caddy can’t be inserted the wrong way round. Always make
sure that the disk connector faces the slot in the Shogun Flame. You have
tobequitermtopushtheMasterCaddyIIintoplace,butdon’tpushtoo
hard, just in case something isn’t set up or aligned properly.
There is very little that can cause problems and the most likely thing is
thattheMasterCaddyisn’tproperlyushwiththedriveinside.Aquick
visualcheckwillconrmthis.
Spinning disks and SSDs are very sensitive to damage from
static electricity. Please observe all the usual precautions
when handling them, especially DO NOT EVER touch the exposed
SATA connector as static electricity may be harmful
to your disk.
Master Caddy II drives are backwards compatible with previous
Atomos recorders, however Master Caddy 1 is not forward
compatible with the Shogun Flame due to the compact latch design.

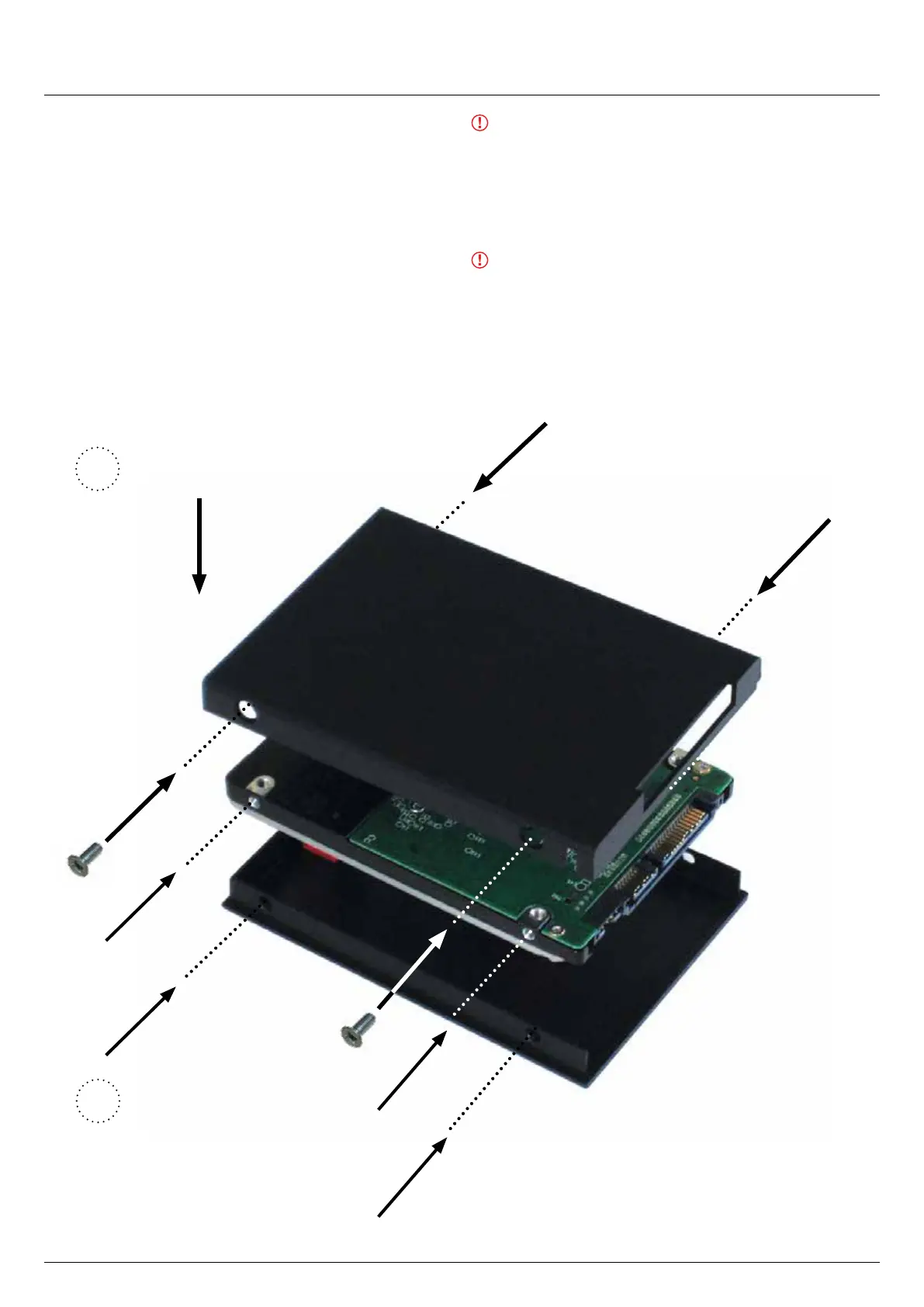

1
Carefully assemble the
Master Caddy II and disk
2
Ensure all 3 parts aligned
and insert 4 x screws (supplied)
Do not over-tighten screws or
alignment can not be guaranteed.
We suggest squeezing the corners
together near the screw you are
tighteningforoptimalt.
Insert screw
Align all parts
Insert screw
