Atomos Shogun flame User Manual

*Subject to change without notice Atomos Shogun Flame – User Manual Edition 1: May 2016 11

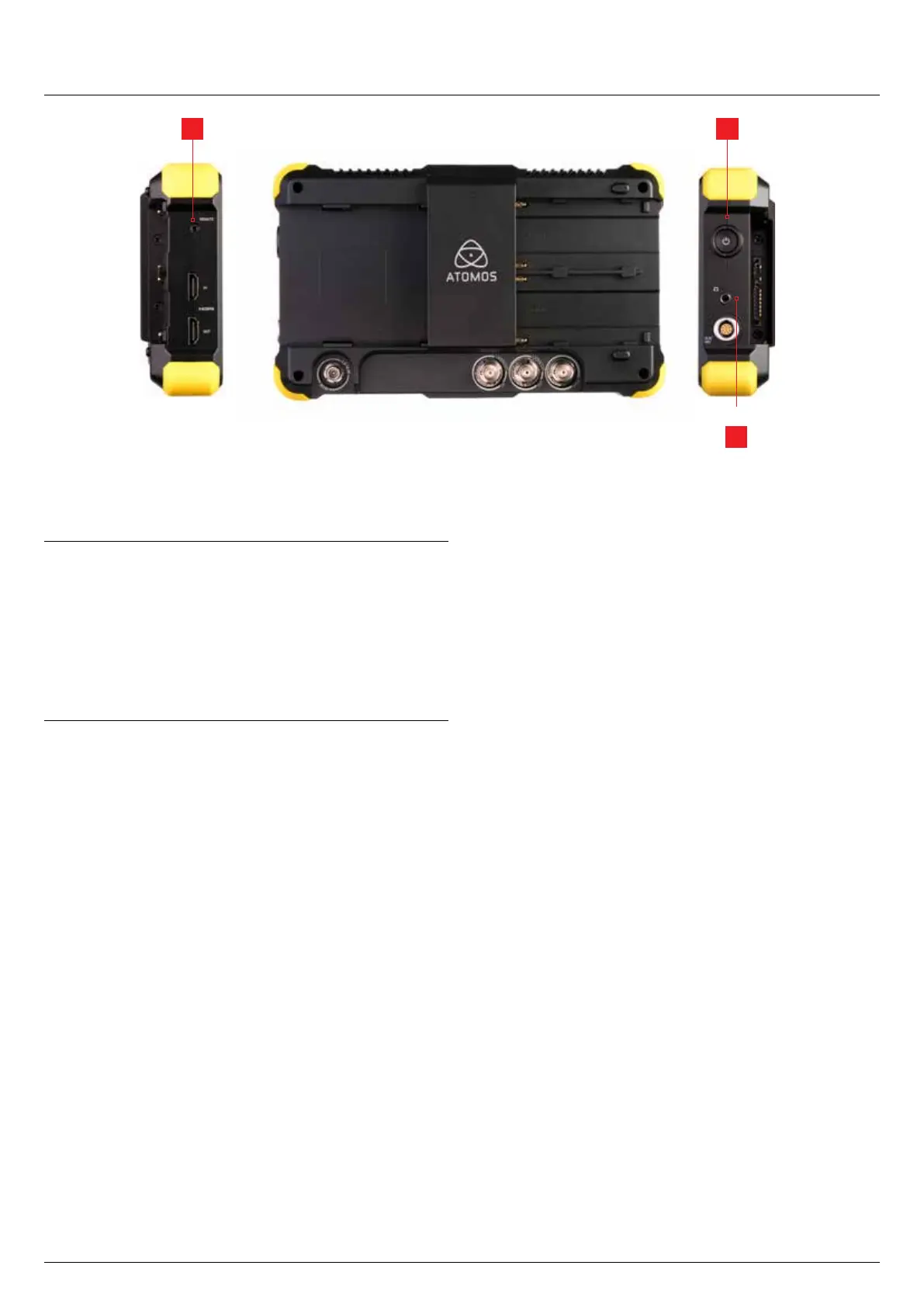

5. Shogun Flame Connections
1. Power Button
The power button is used to power on/off the device.
2. Calibration Port
The calibration 2.5mm jack on the left hand side (looking from the front),
allows for the connection of supported calibration devices with support
now available for the retail version of the X-Rite i1Display Pro as well as
legacy Atomos Spyder Calibrator. Both units utilize the optional USB to
serial adaptor cable. The latest version of the Atomos Calibration software
is available at www.atomos.com/support
3. Headphone Ports
A 3.5mm headphone jack is located under the power button. Channel
selection and volume for headphone monitoring is via the audio controls
section in the lower left hand side of the touchscreen.
12
3

Atomos Shogun flame Specifications

General

Display resolution	1920 x 1200 pixels
Audio system	48kHz, 24-bit
Product color	Black, Yellow
USB connectivity	Yes
Video capturing speed	120 fps
BNC input ports	1
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (max)	24 W
Cables included	DC, XLR-6.3 mm

Weight and Dimensions

Weight	650 g
Dimensions (WxDxH)	214 x 45 x 127 mm
