*Subject to change without notice Atomos Shogun Flame – User Manual Edition 1: May 2016 13

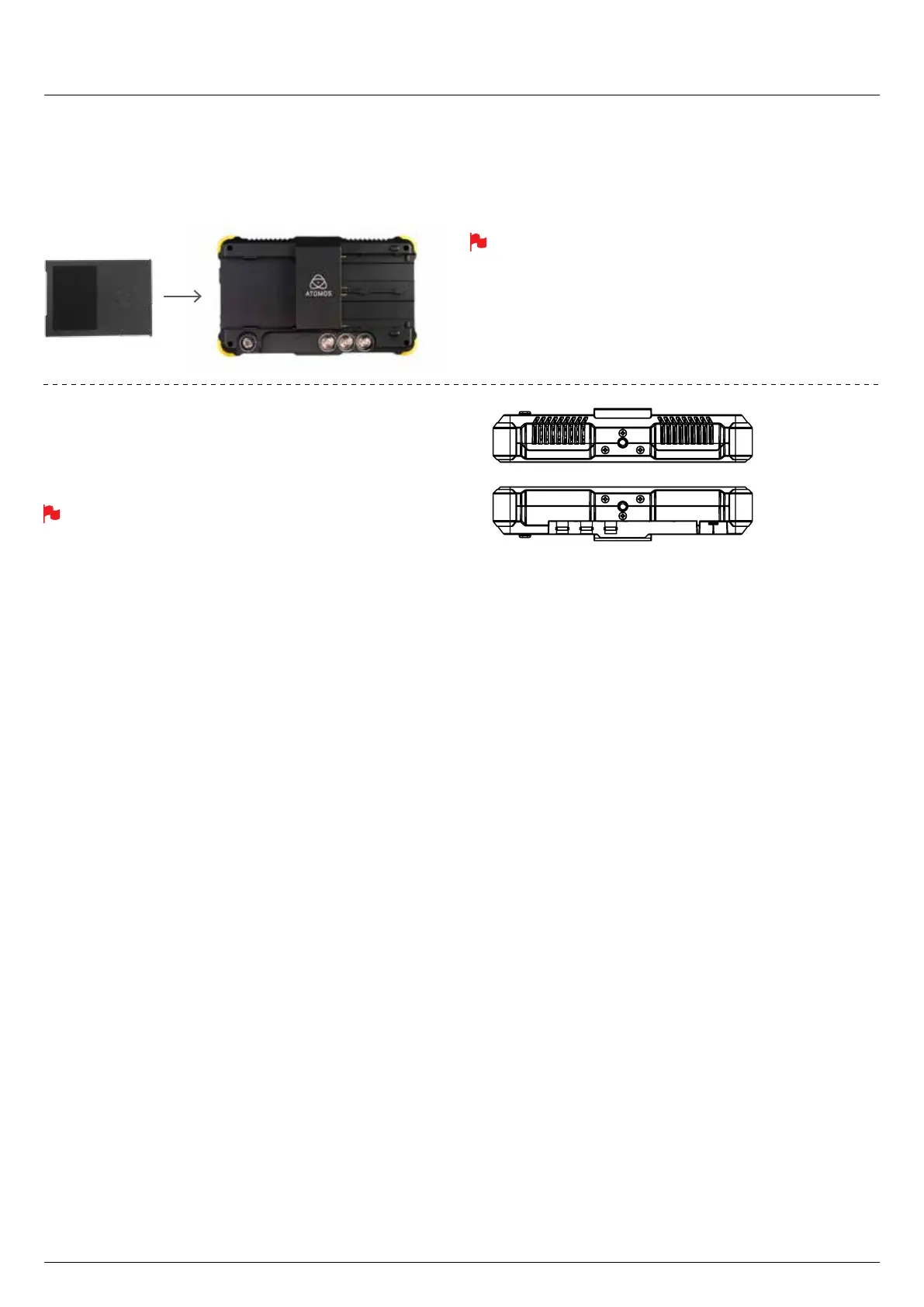

6. Master Caddy II, Screw Mounts and Sun Hood
Screw Mounts
TheShogunFlamefeaturesstandardtripod¼”screwmountsonthetop
andbottomoftheunit,allowingyoutocongureyourrecordingsetup
variousways(¼”camcordermountnotincludedinShogunFlamekit).
Ensure you do not over tighten the screw mounts as this may cause damage
1/4” Screw mount top
1/4” Screw mount base
Master Caddy II Slot
On the rear of the unit is a 2.5mm HDD slot for Shogun Flame Master Disk
Caddie II’s. To insert a caddy, gently push until it clicks into position.
Formatting disks - see page 19
Master Caddy II - New 2 keyway system
The Master Caddy II is hot-swappable, so you can do this at any time –
even while the unit is turned on. But don’t do it while recording or you will
getacorruptedlethatmaybeunplayable.
The Shogun Flame does NOT have a release latch - it is friction-t.
Simply pull the Master Caddy out using the top and bottom tabs on
the caddy itself.
Master Caddy II is backwards compatible with previous Atomos
recorders Master Caddy 1 is not compatible with Shogun Flame as
the keyways are on one side only.

Atomos Shogun flame Specifications

General

Display resolution	1920 x 1200 pixels
Audio system	48kHz, 24-bit
Product color	Black, Yellow
USB connectivity	Yes
Video capturing speed	120 fps
BNC input ports	1
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (max)	24 W
Cables included	DC, XLR-6.3 mm

Weight and Dimensions

Weight	650 g
Dimensions (WxDxH)	214 x 45 x 127 mm
