Connect
To access and edit your recorded material, connect the Master Caddy
Docking Station to a Mac® or Windows® editing workstation via USB 2.0
or USB 3.0.
Eject the Master Caddy from your Shogun Flame and insert it into the
Docking Station. After a short wait, the recorded video will be accessible
tothetargetcomputerviaastandarddisk(exFAT)lesystem.
NLE supported
We have chosen the Apple ProRes®, Avid DNxHD® and Avid DNxHR®
codecs as they are both not only visually lossless, but also edit-ready
formats. All major NLEs support ProRes and DNxHD/DNxHR.
• Final Cut Pro (version 7)
• Final Cut X
• Adobe CS5 (with 5.51 update or later)
• EDIUS 6
• Sony Vegas 10
• Lightworks
• Avid Media Composer 6 (version 8.3 or later for DNxHR)
Avid DNxHD® / DNxHR® support requires online activation.
ExFAT compatibility
TheShogunFlameformatsyourdiskasexFAT.Wehavechosenthisle
systemtoovercomethe4GBlelimitationofFAT32andkeep
compatibility on both Windows and MAC OS.
The Operating Systems that support exFAT are:
• Windows XP - install the following update:
http://www.microsoft.com/download/en/details.aspx?id=19364
• Windows Vista - install SP1 or higher
• Windows 7 & 8 (32/64bit)
• Snow Leopard 10.6.5 or higher
• Lion 10.7
• Mountain Lion 10.8
• Mavericks 10.9 and above
The Master Caddy Docking Station is a sophisticated device
supporting two different data interfaces: USB 2 and USB 3. When
using the Master Caddy Docking Station you may need to connect
both USB connectors. This is because when it has to power a disk
drive and its interface electronics, the Docking Station may consume
more power than is available from a single USB port.
Transferring Files
Now your docking station is connected and your disk is recognized by
your operating system, you can edit directly from the drive or copy the
lestoyourownstorage.
Windows
OpenthediskinMyComputer>Selectallthelesorjusttheonesyou
wish to transfer, copy and paste them to your desired location.
(ctrl+c copy, ctrl+v paste).
Mac OS
YourShogunFlamediskwillshowinFinder.Selectthelesyouwishto
transfer,dragthelestoyourdesiredlocationorusethecopyandpaste
commands. (COMMAND + C copy, COMMAND + V paste).
If you have used a FAT32 formatted disk in the Shogun Flame this will
have a folder structure Scene, Shot, Take. This will mean you either
transfer all the folders or utilize the Windows Search or MACs
automate program to transfer just the .mov les. There are instructions
on this in our knowledge base; visit www.atomos.com/support for
more info.
13. Connecting and Editing
USB 2.0 and 3.0 compatible Connect to Laptop/
Workstation

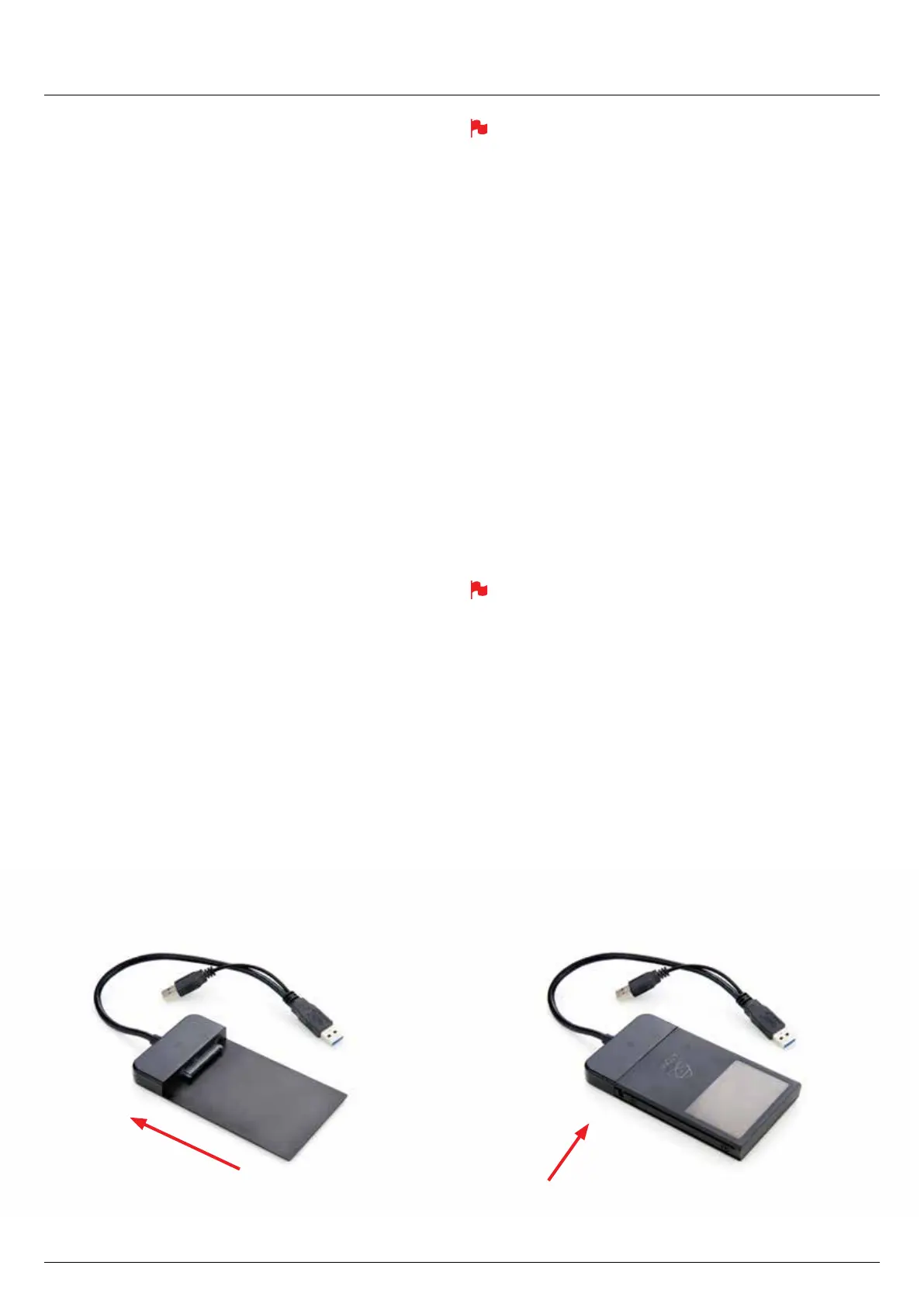

Attach Master Caddy
Ensure disk is
properly attached

Atomos Shogun flame Specifications

General

Display resolution	1920 x 1200 pixels
Audio system	48kHz, 24-bit
Product color	Black, Yellow
USB connectivity	Yes
Video capturing speed	120 fps
BNC input ports	1
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (max)	24 W
Cables included	DC, XLR-6.3 mm

Weight and Dimensions

Weight	650 g
Dimensions (WxDxH)	214 x 45 x 127 mm
