Waveform Monitoring

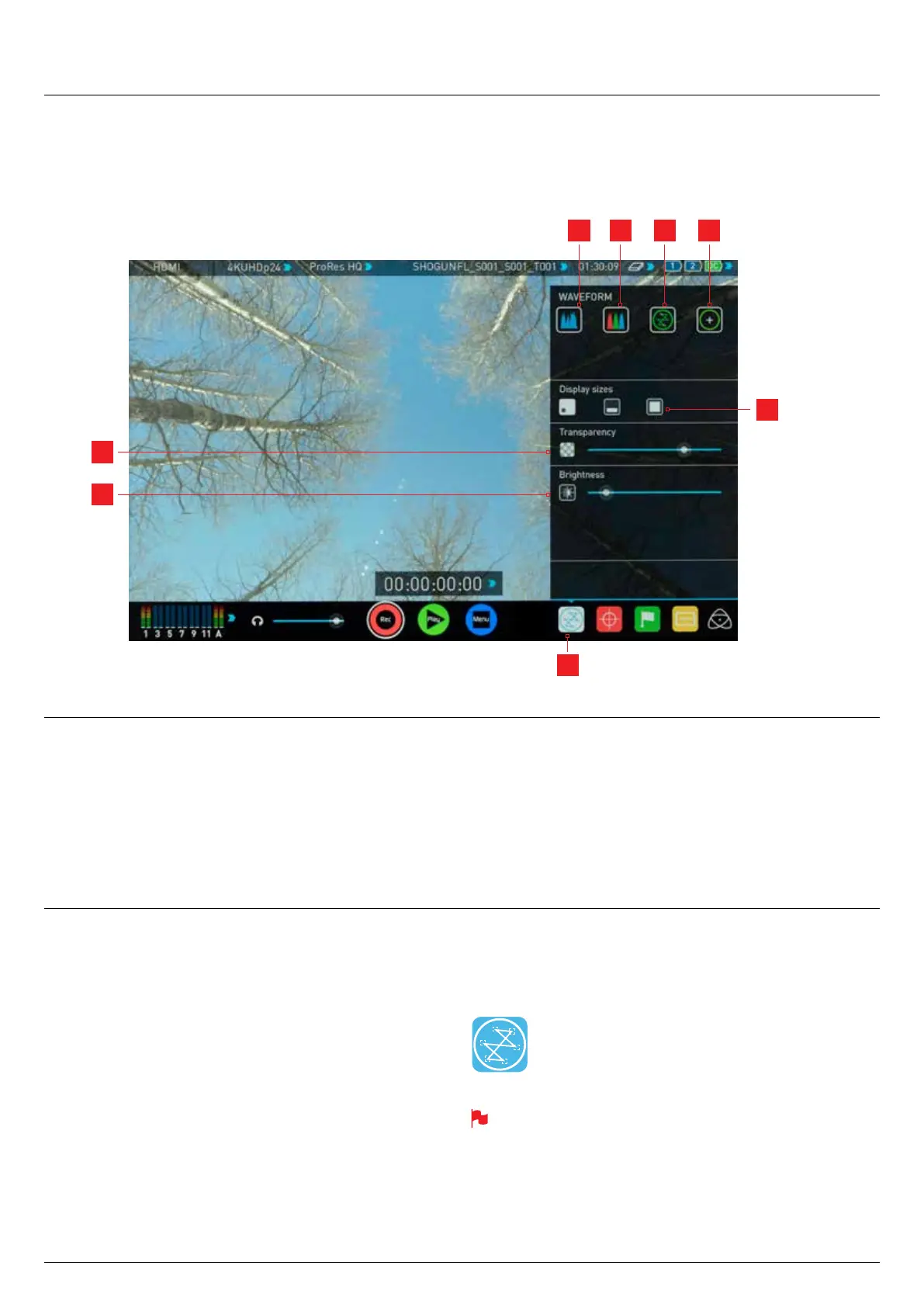

AtomOS6 has a newly improved Waveform Monitoring control panel which can be enabled with only a few button presses.
8. Monitoring and Recording cont.
1. Waveform Monitoring Menu
2. Luma Waveform
3. RGB Waveform
4. Vectorscope
5. Vectorscope Zoom
6. Waveform Size (1/4, 1/3 and Full Screen view)
7. Transparency
8. Waveform Brightness
What is Waveform Monitoring?
Waveform Monitoring is used for measuring the brightness, luminance or
chromavaluesfromavideoinputsignal.Thisfeaturehasseveralbenets
totheproductionworkowincluding:
• Ensuring camera to camera matching accuracy when
shooting multicam.
• Returning to locations for additional pick-up shots.
• Assisting with colour correction.
• Camera white and black balance
How to use
To enable the Waveform Monitor, press the Waveform Monitoring icon
on the home screen.
Waveform Monitoring icon
The Waveform Monitoring icon will only be visible if there is an input
signal detected.
2 3 4 5
1
6
7
8

Atomos Shogun flame Specifications

General

Display resolution	1920 x 1200 pixels
Audio system	48kHz, 24-bit
Product color	Black, Yellow
USB connectivity	Yes
Video capturing speed	120 fps
BNC input ports	1
HDD size	2.5 \
HDD interface	Serial ATA
Power consumption (max)	24 W
Cables included	DC, XLR-6.3 mm

Weight and Dimensions

Weight	650 g
Dimensions (WxDxH)	214 x 45 x 127 mm
