59
April 2007
e-motion™ Operating Manual - B-Level STD

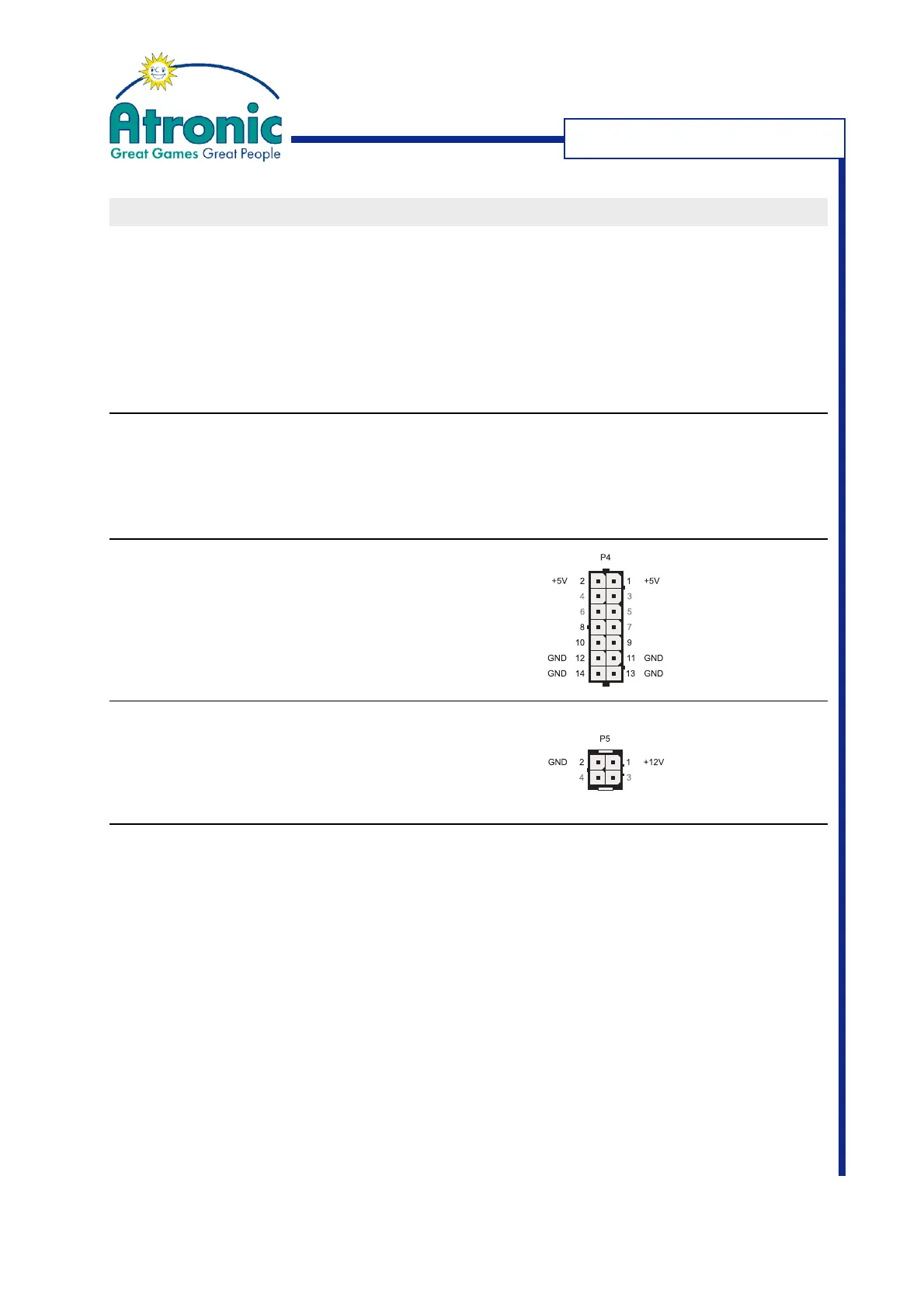

PERIPHERALS VOLTAGE REQUIREMENTS & CONNECTORS PIN-OUT
Touch Controller
Required Voltage: 12V N/A
Connected to: MMPC Board
Connector: X7
Disk Drive
Required Voltage: 12V N/A
Connected to: MMPC Board
Connector: X22
Counterboard
Required Voltage: 12V
Connected to: Filterboard Signal
Connector: P4
Solenoid
Required Voltage: 12V
Connected to: Coinboard
Connector: P5
Power Supply
Required Voltage: 100V - 240V 50Hz / 60Hz
VOLTAGE / PIN-OUTS
+12V
+24V
+12V
