User’s Manual

Select – Activates highlighted blocks to detect motion.

Clear – Deactivates highlighted blocks so that they will not detect motion.

Reverse – Activates inactive highlighted blocks and deactivates active highlighted blocks.

Select All – Activates all blocks to detect motion.

Clear All – Deactivates all blocks so that they will not detect motion.

Reverse All – Activates inactive blocks and deactivates active blocks.

Zone View – Displays any detected motion within the zone in red.

OK – Accepts changes and closes Zone setup.

Cancel – Exits Zone setup without saving changes.

You can adjust the minimum number of detection blocks that must be

activated to trigger a motion alarm. Highlighting the box under the Min.

Blocks heading and pressing the

button allows you to adjust the minimum

number of detection blocks for Daytime and Nighttime independently.

Smaller numbers provide greater sensitivity because fewer detection blocks

must be activated.

Turning Zone View On will allow you to observe how the DVR is reacting to motion. When in the motion viewing

mode, the detection zone of video will be displayed. Any detected motion within the zone will be displayed in red.

Highlight the box under the Actions and press the

button. The DVR can be set to react to motion differently for

each camera. Each camera can be associated with another camera, trigger an Alarm-Out connector, sound the DVR’s

internal buzzer, notify a number of different devices, and/or move PTZ cameras to preset positions.

You can control excessive event logging and remote notification of motions detected after the motion dwell time by

adjusting the motion ignoring dwell intervals. Highlight the box beside Motion Ignoring Interval and press the

button. A list of intervals ranging from 1 to 10 seconds or Never appears. The DVR will not log and notify motion

events occurred during the preset interval range.

NOTE: The record action for motion events will not be affected by the Motion Ignoring function.

Highlighting Daytime Setup and pressing the button allows you to set up the Daytime range.

Highlight the box beside Daytime and press the button. Use the

Up and Down arrow buttons to set the Daytime range. The DVR will

consider the remaining time range as the Nighttime.

Alarm-In

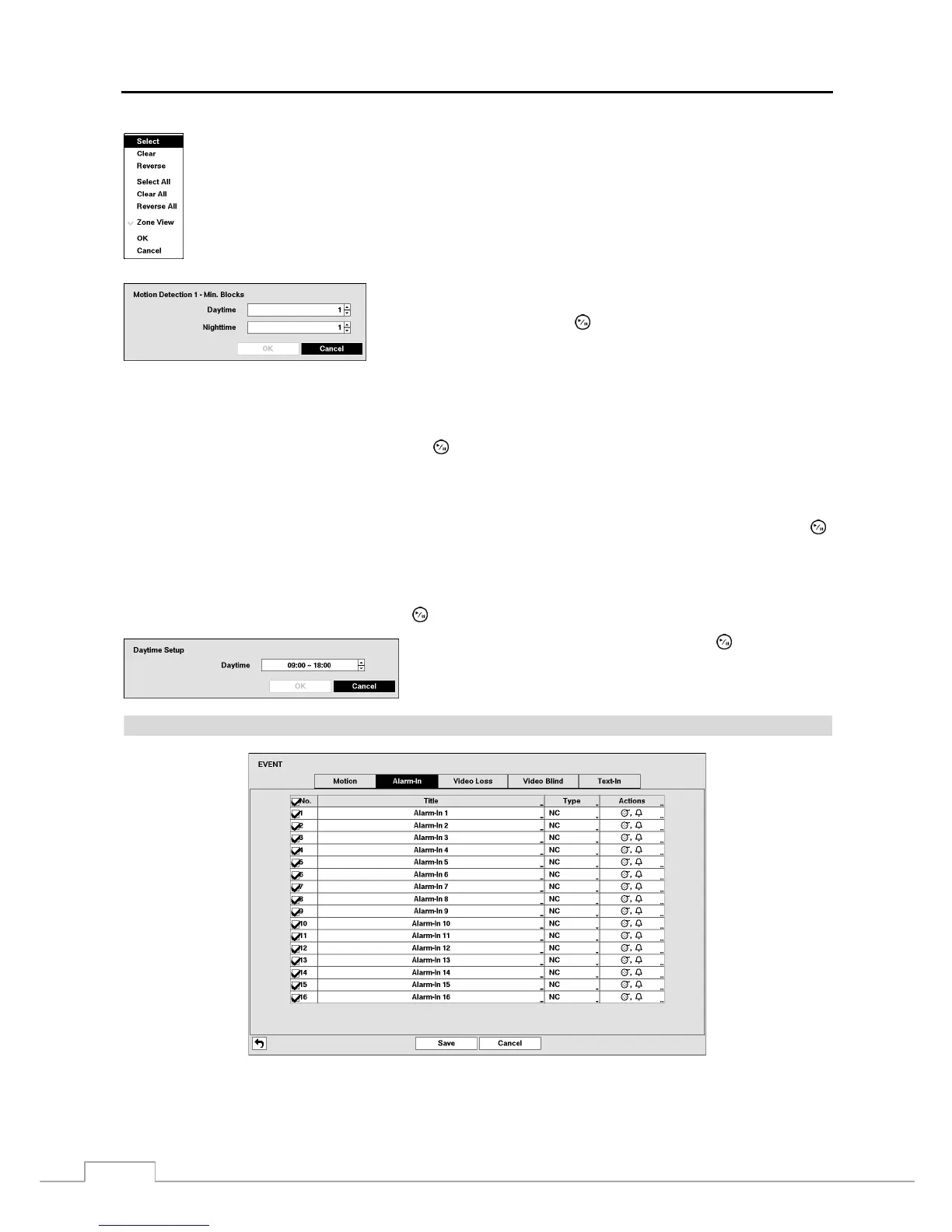

Figure 18: Event – Alarm-In setup screen.
