ATV User Manual - Video Loss; Figure 19: Event - Video Loss Setup Screen

Digital Video Recorder
33
The alarm terminal strip on the back of the DVR has inputs associated with each alarm. You can set up each input on
the Alarm-In screen. You can turn each input On or Off by highlighting the alarm number and pressing the
button.
Each input can be given a title. Highlight the desired Title box and press the
button. A virtual keyboard appears
allowing you to enter a title name.
Each input can be set as NO (normally open) or NC (normally closed).
Highlight the box under the Actions and press the
button. You can set the actions the DVR will take whenever it
senses an input on one of its alarm input connectors. Alarm input can be associated with cameras, trigger an Alarm-Out
connector, sound the DVR’s internal buzzer, notify a number of different devices, and/or move PTZ cameras to preset
positions.
Video Loss

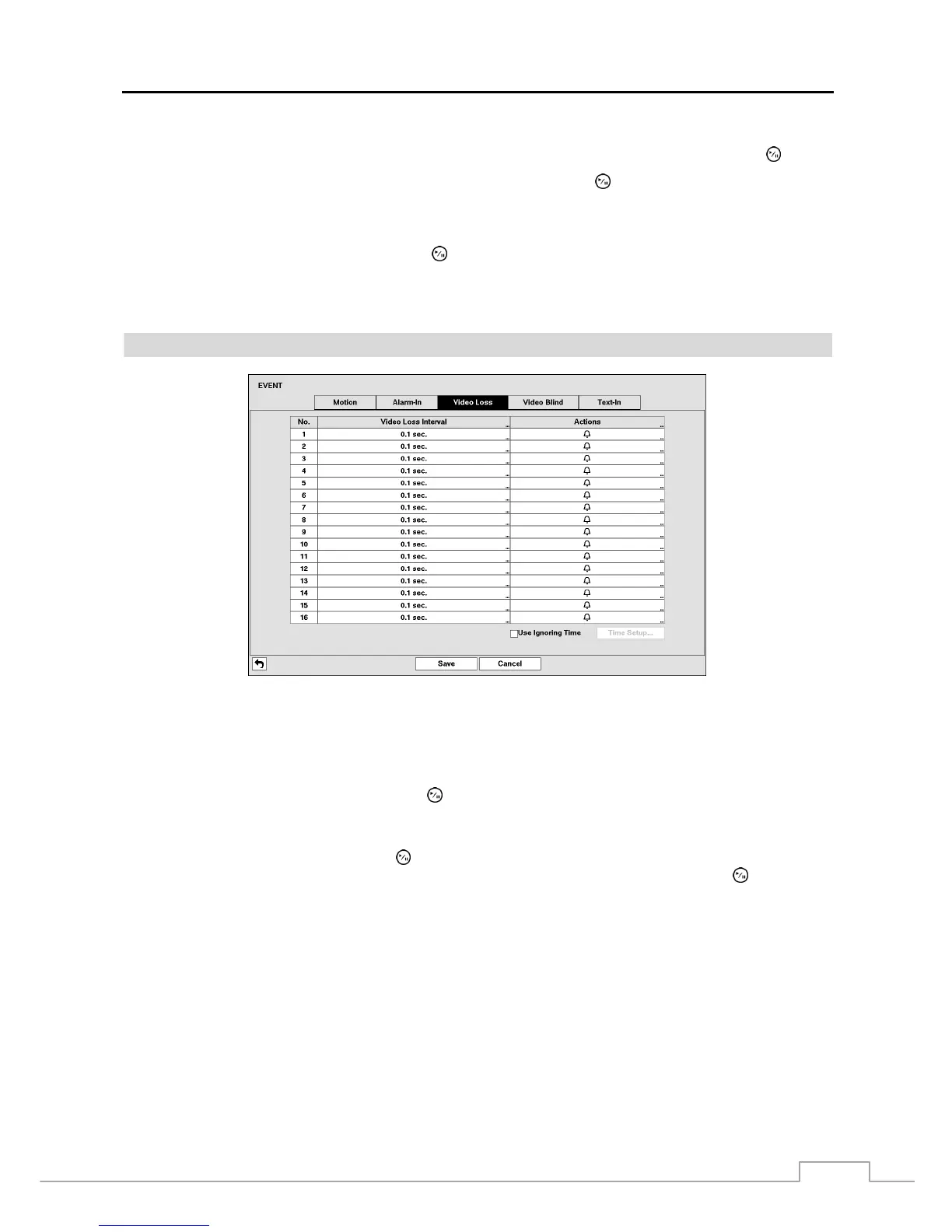

Figure 19: Event – Video Loss setup screen.
Highlighting the box under the Video Loss Interval heading allows you to set the duration of a signal loss before the
DVR will report a Video Loss. The DVR will not consider any signal loss from a camera to be a Video Loss if the
detected signal loss is shorter than the interval set on this screen.
Highlight the box under the Actions and press the
button. The DVR can be set to react to video loss differently for
each camera. Each camera can be associated with another camera, trigger an Alarm-Out connector, sound the DVR’s
internal buzzer, notify a number of different devices, and/or move PTZ cameras to preset positions.
Highlight Use Ignoring Time and press the button to toggle between On and Off. When set to On, the DVR will
ignore video loss events occurring during the preset period. Highlighting Time Setup and pressing the
button allows
you to set up event ignoring time.
