INSTALLATION

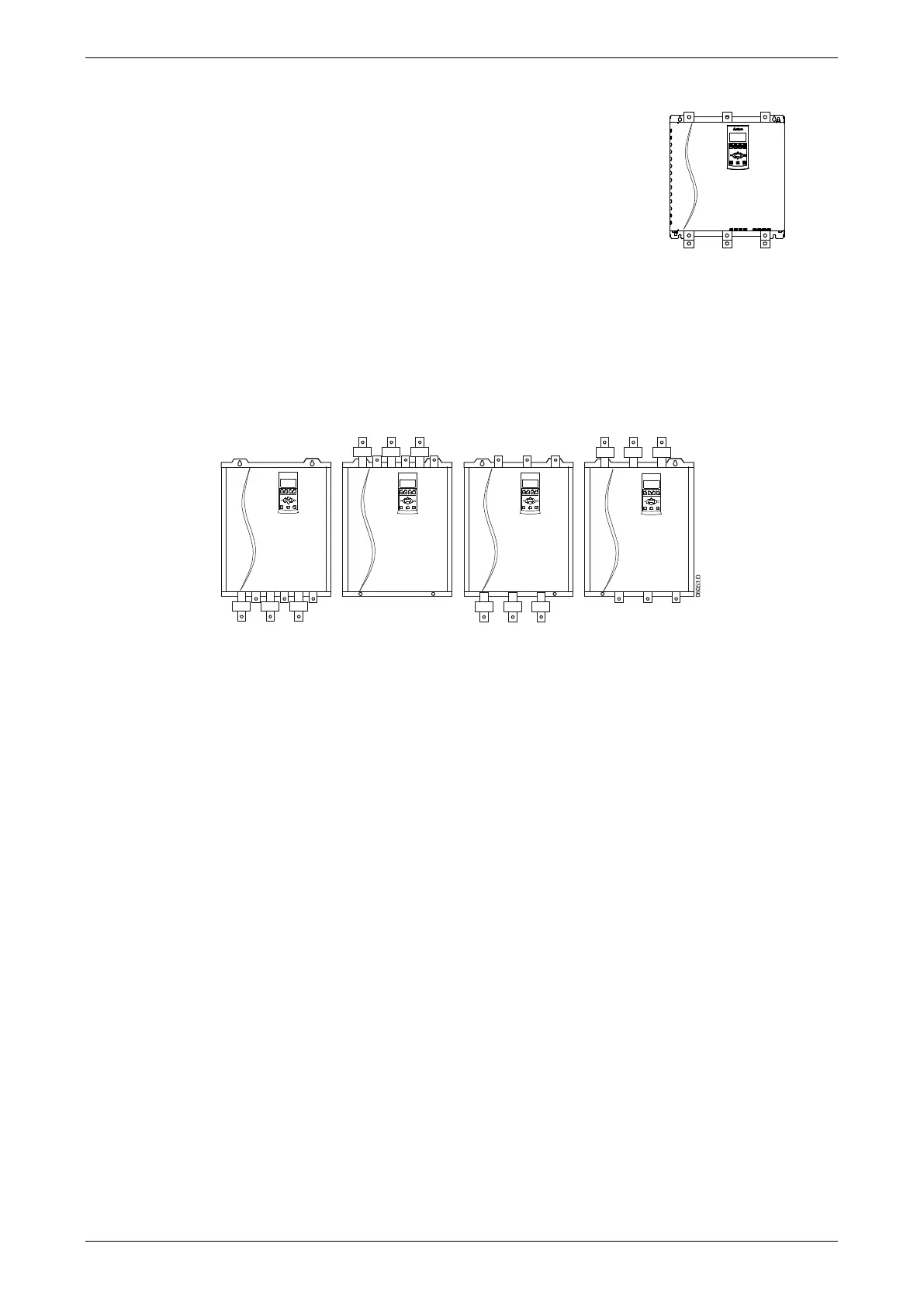

Non-bypassed Model - EMX3-0255C
EMX3-0255C has dedicated bypass terminals at the bottom of the unit.
The bypass terminals are T1B, T2B, T3B.
15764.A
1/L1 3/L2 5/L3
T1B T2B T3B
2/T1 4/T2 6/T3
Non-bypassed Models (EMX3-0360C~EMX3-1600C)
EMX3-0360C~EMX3-1600C have dedicated bypass terminals, on the input busbars. The bypass terminals are L1B, L2B, L3B.
The busbars on non-bypassed models EMX3-0360C ~ EMX3-1600C can be adjusted for top or bottom input and output as required.
Refer to
Busbar Adjustment Procedure
on page 93 for step-by-step instructions. All units are manufactured bottom in/bottom out.
(L1B L2B L3B)
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
1/L1 3/L2 5/L3
(L1B L2B L3B)
2/T1 4/T2 6/T3
(L1B L2B L3B)
1/L1 3/L2 5/L3
2/T1 4/T2 6/T3
1/L1 3/L2 5/L3
(L1B L2B L3B)
2/T1 4/T2 6/T3
12 | User Manual (710-04840-00M)
