AuCom EMXAe - Keypad and Feedback; The Keypad

KEYPAD AND FEEDBACK
7. Keypad and Feedback
7.1 The Keypad
Local keypad
Remote keypad (if installed)
Ready Run Trip Local
Menu
Store
Exit
Reset
1
2
3
17691.C
Start
Stop
Reset
LC
L

RMT
Menu
Store
Exit
AltLogs
Tools
17692.B
1
2
3
4
5
6
1

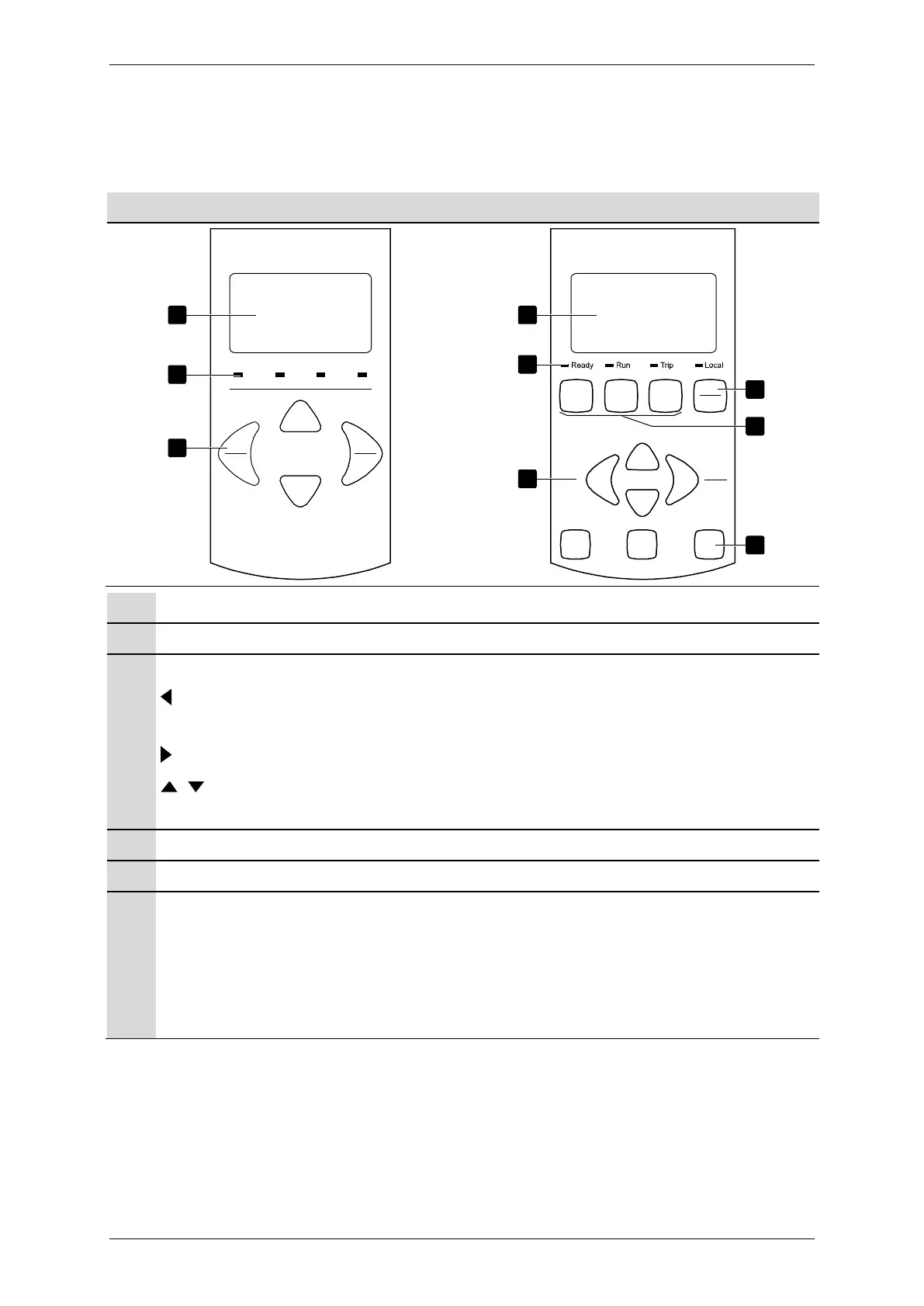

Four-line display for status and programming details.
2
Status LEDs
3
Menu navigation buttons:
: Exit the menu or parameter, or cancel a parameter change. On the local
keypad, this button also resets a trip.
: Enter a menu or parameter, or save a parameter change.
: Scroll to the next or previous menu or parameter, change the setting of
the current parameter or scroll through the status screens.
4
Shortcut to the command source menu in Setup Tools.
5
Soft starter local control buttons
6
Shortcut buttons for quick access to common tasks.
LOGS
: Open the Logs Menu.
ALT
: Select which graph to view, or pause/restart the graph (hold longer than
0.5 seconds)
TOOLS
: Open the Setup Tools.
