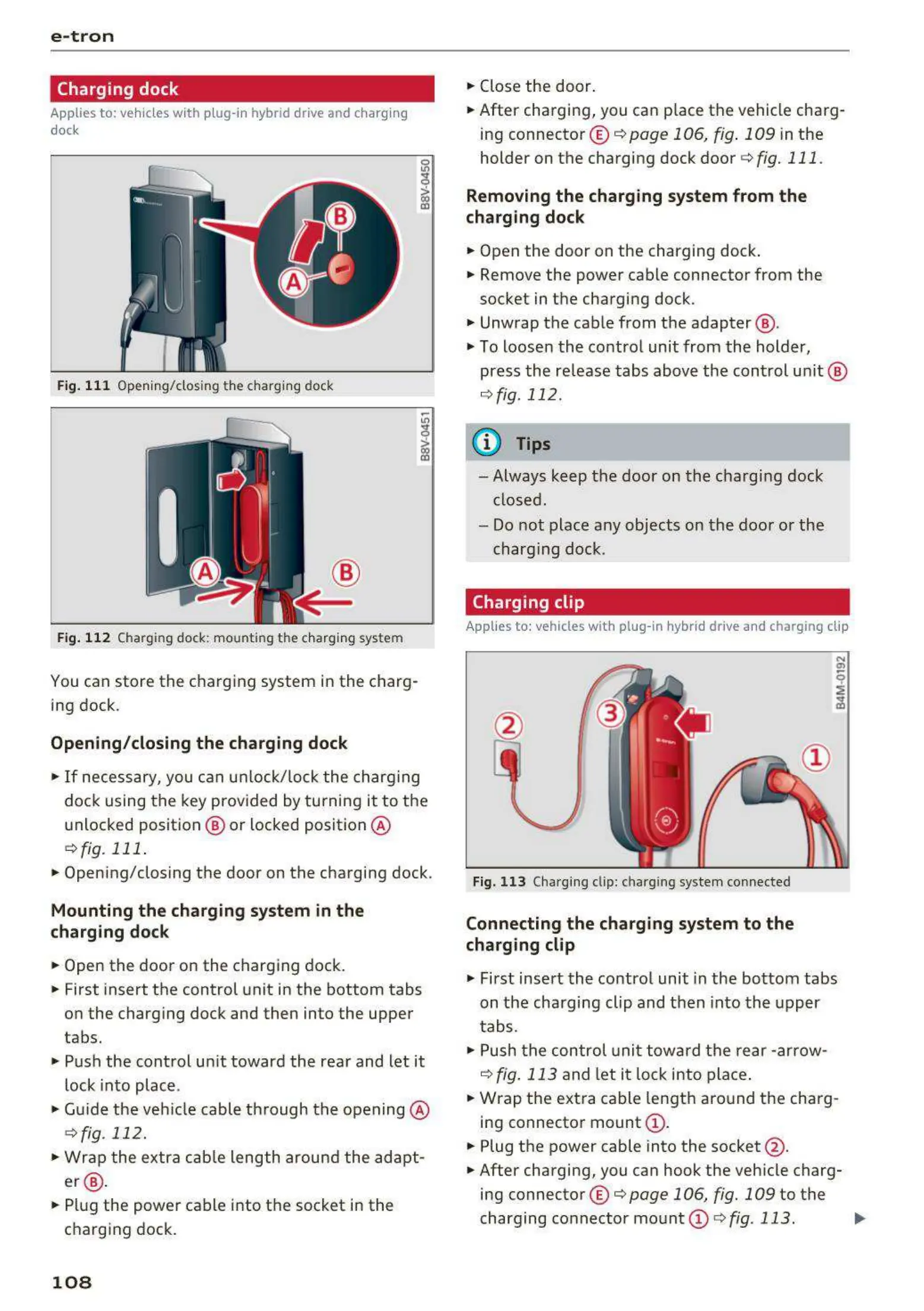

e-tron
Charging dock
Applies to: vehicle s with plug-in hybrid drive and charging
dock
Fig. 111 Opening/clos ing t he charg ing dock
®
Fig. 11 2 Charging dock: mount ing th e charging syst em
You can store the charg ing system in the charg -
ing dock.
Opening / closing the charging dock
.. If necessary, you can unlock/lock the charg ing
dock using the key provided by turning it to the
unlocked position @ or locked position @
¢ fig. 111 .
.. Opening/closing the door on the charging dock.
Mounting the charging system in the
charging dock
.. Open the door on the charging dock.
.. First insert the control unit in the bottom tabs
on the charging dock and then into the upper
tabs.
.. Push the control un it toward the rear and let it
lock into place .
.. Guide the vehicle cable th rough t he opening @
¢ fig. 112.
.. Wrap t he extra ca ble length around the adapt-
er @ .
.. Plug the power cable into the socket in the
charging dock .
108
.. Close the door.
.. After charging, you can p lace the vehicle charg-
ing connecto r @ ¢ page
106, fig . 109 in the
holder on the charging dock door ¢
fig. 111.
Removing the charging system from the
charging dock
.. Open the door on the charging dock .
.. Remove the power cable connector from the
socket in the charging dock .
.. Unwrap the cable from t he adapter @ .
.. To loosen the control unit from the holder,
press the re lease tabs above the cont rol un it @
¢ fig. 112 .
(D Tips
- Always keep the door on the cha rging dock
closed .
- Do not place any objects on the doo r or the
charging dock.
Charging clip
Applies to: vehicles with pl ug-i n hybrid drive and charging clip
Fig. 1 13 Charg ing clip: charging syst em connected
Connecting the charging system to the
charging clip
.. First insert t he contro l unit in the bottom tabs
on the charging clip and then into the upper
tabs .
.. Push the con t rol unit towa rd the rear -ar row-
¢ fig . 113 and let it lock into place .
.. Wrap the extra cable length aro und t he charg-
ing connector mount
(D.
.. Plug the power cable into the socket @ .
.. After charging, you can hook the veh icle charg-
ing connector © ¢ page 106, fig. 109 to the
charging connector mo unt (D ¢ fig . 113. .,.
