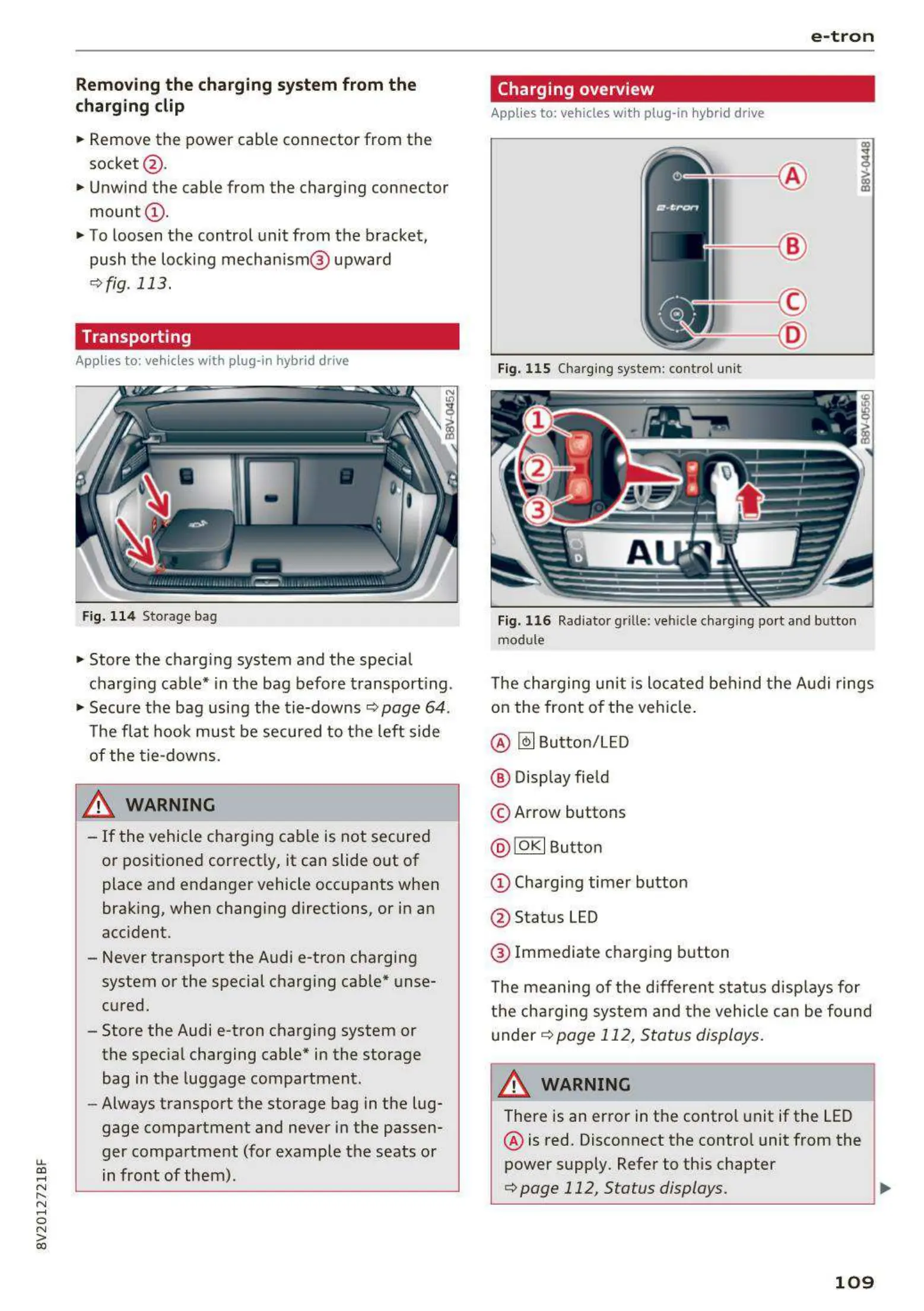

Removing the charging system from the
charging clip
.,. Remove the power cable connector from the
socket @ .
.,. Unwind the cable from the charg ing connector
mount (D .
.,. To loosen the control unit from the bracket,
push the locking mechan ism @ upward
9 fig. 113.
Transporting
Applies to: veh icles with plug-in hybrid drive
Fig. 114 Storage bag
.,. Store the charg ing system and the special
charg ing cable* in the bag befo re transporting .
.,. Secure the bag using the tie-downs ¢
page 64 .
The flat hook must be secured to the left side
of the tie-downs.
& WARNING
- If the vehicle charging cab le is not secured
or positioned correctly, it can slide out of
place and endanger vehicle occupants when
brak ing, when changing directions, or in an
accident.
- Never transport the Audi e-tron charging
system or the special charg ing cable" unse-
cured.
- Store the Audi e-tron charging system or
the special charging cable* in the storage
bag in the luggage compartment.
- Always transport the storage bag in the lug-
gage compartment and never in the passen-
ger compartment (for example the seats or
in front of them) .
e-tron
Charging overview
Applies to: vehicles with plug -in hybrid drive
Fig. 115 Charging system : control un it
Fig. 116 Radiator grille: veh icle charg ing port an d butto n
mod ule
The charging uni t is located behind the Audi rings
on the front of the vehicle .
@
~
Button/LED
® Display field
© Arrow buttons
@ IOKI Button
(D Charging timer button
@ Status LED
@ Immediate charging button
The meaning of the different status displays for
the cha rging syst em and the vehicle can be found
un der
9 page 112, Status displays.
A WARNING
There is an error in the control unit if the LED
@ is red. Disconnect the control unit from the
power supply . Refer to th is chapter
¢page 112, Status displays. llll-
109
