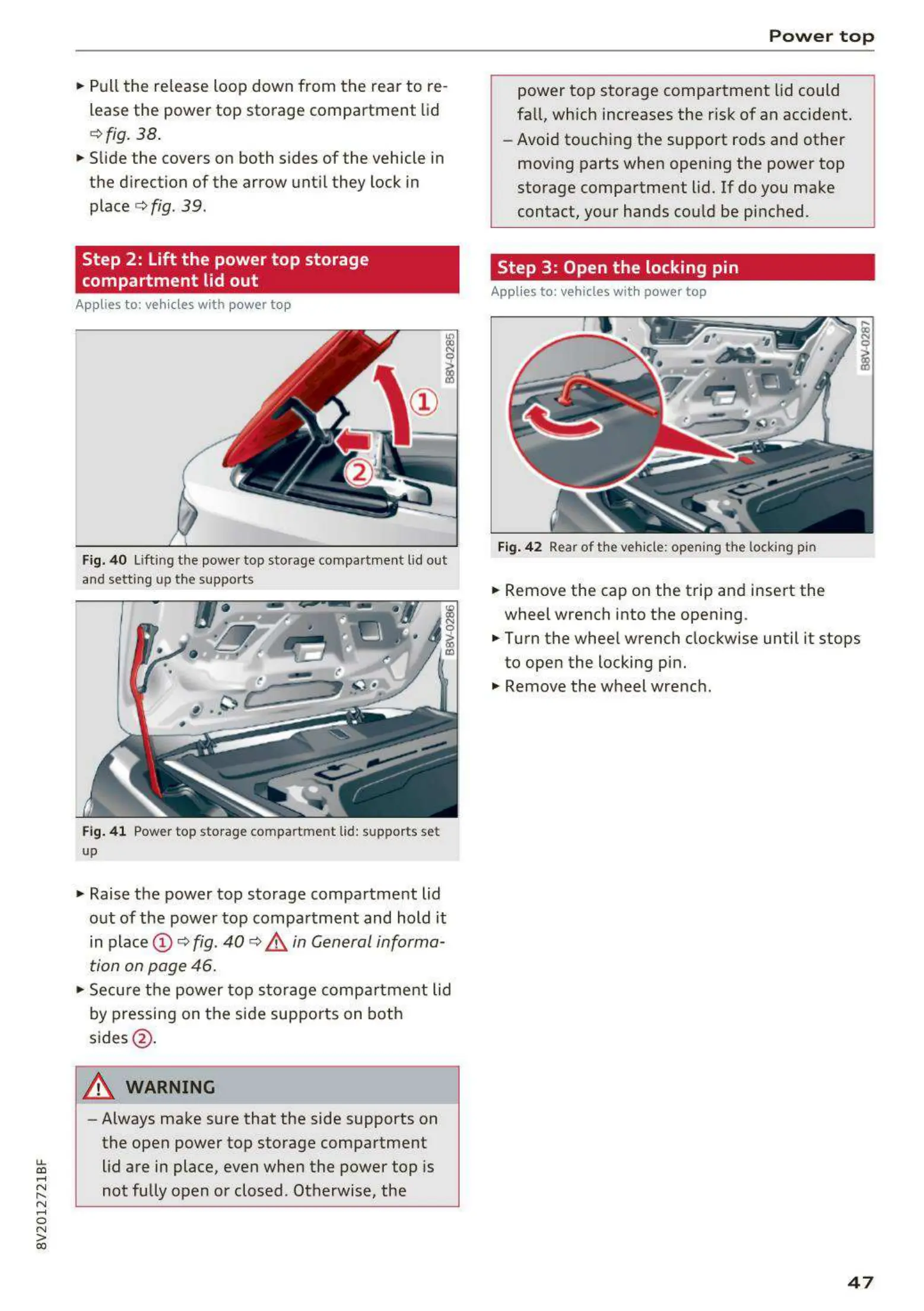

"' Pull the release loop down from the rear to re-
lease the power top storage compartment lid
c:>fig. 38.
"'Slide the covers on both sides of the vehicle in
the direction of the arrow until they lock in
place
c:> fig. 39.
Step 2: Lift the power top storage
compartment lid out
Applies to : vehicles with powe r top
Fig. 40 Lifting t he powe r top sto rage compa rtment Lid out
and setting up the supports
Fig. 41 Power top storag e compa rtment lid: suppor t s set
up
"' Raise the power top storage compartment lid
out of the powe r top compartment and hold it
in place @
c:> fig . 40 c:> A in General informa-
tion on page 46.
"'Secure the power top storage compa rt ment lid
by pressing on the side suppo rts on both
sides @ .
A WARNING
- Always make sure that the side supports on
the open power top storage compartment
lid are in place, even when the power top is
not fully open or closed . Otherwise, the
Power top
power top storage compartment lid could
fall, which increases the risk of an accident.
- Avoid touching the support rods and other
moving parts when opening the power top
storage compartment lid. If do you make
contact, your hands could be pinched.
Step 3: Open the locking pin
Applies to: vehicles with power top
Fig. 42 Rear of th e vehicle : open ing the locking pin
"' Remove the cap on the trip and insert the
wheel wrench into the opening .
"'Turn the wheel wrench clockwise until it stops
to open the locking pin.
"' Remove the wheel wrench .
47
