Note
♦
The A/C compressor can be removed and installed at the
bracket without opening the refrigerant lines.
♦
The following describes removing and installing the compres‐
sor for a vehicles with a 2.0L TFSI engine and a 3.2L MPI
engine, with a “Denso“ compressor type “6 SEU 14“. On ve‐
hicles with different engine or a different A/C compressor,
slight changes may result (depending on engine, additional
assemblies may need to be removed or loosened)
♦
Do not discharge the refrigerant circuit, do not remove refrig‐
erant hoses and lines from the A/C compressor.
♦
Do not unfasten refrigerant pipes and corresponding clamps.
♦
After removing the A/C compressor, tie it to the vehicle with
wire. Do not let it hang by the refrigerant lines. Refer to
⇒ page 107 .
♦
Before removing, mark direction of operation of ribbed belt
with chalk or felt-tipped pen. Running a used belt in the oppo‐
site direction could destroy it.
♦
Different A/C compressors may be installed depending on en‐
gine and country variant. Refer to Electronic Parts Catalog
(ETKA).
Removing
– Remove upper engine cover. Refer to⇒ Engine Mechanical;
Rep. Gr. 13 ; Removal and Installation (for example, on a 2.0L
TFSI vehicle)

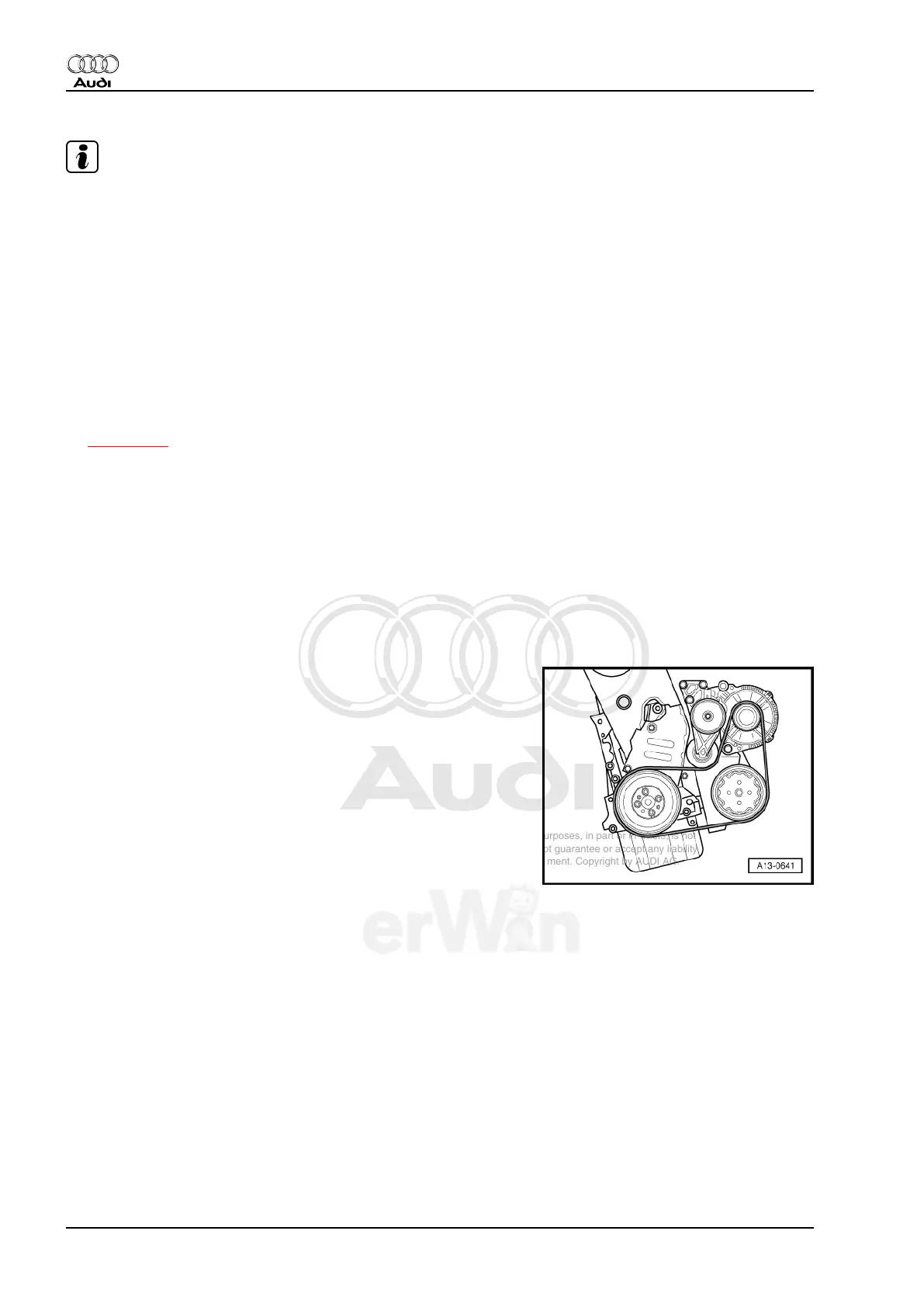

– Mark running direction of ribbed belt (illustration shows ar‐
rangement for a 4 cylinder engine).
– Remove ribbed belt. Refer to⇒ Engine Mechanical; Rep. Gr.
13 ; Removal and Installation .
– Remove center noise insulation. Refer to ⇒ Body Exterior;
Rep. Gr. 66 ; Removal and Installation .
– Remove the right noise insulation. Refer to ⇒ Body Exterior;
Rep. Gr. 66 ; Removal and Installation (for example, on a 2.0L
TFSI vehicle).
– Remove the frame for the noise insulation, if equipped (for ex‐
ample, currently on the Audi TT Roadster). Refer to ⇒ Body
Exterior; Rep. Gr. 50 ; Removal and Installation .
– Remove the right air guide hose (air guide pipe from the tur‐
bocharger to the charge air cooler) Refer to ⇒ Engine Me‐
chanical; Rep. Gr. 21 ; Removal and Installation (for example,
on a TFSI vehicle).
Audi TT 2007 ➤
Heating, Ventilation and Air Conditioning - Edition 01.2011
104 Rep. Gr.87 - Air Conditioning
