2.15 High Pressure Sensor -G65- Signal

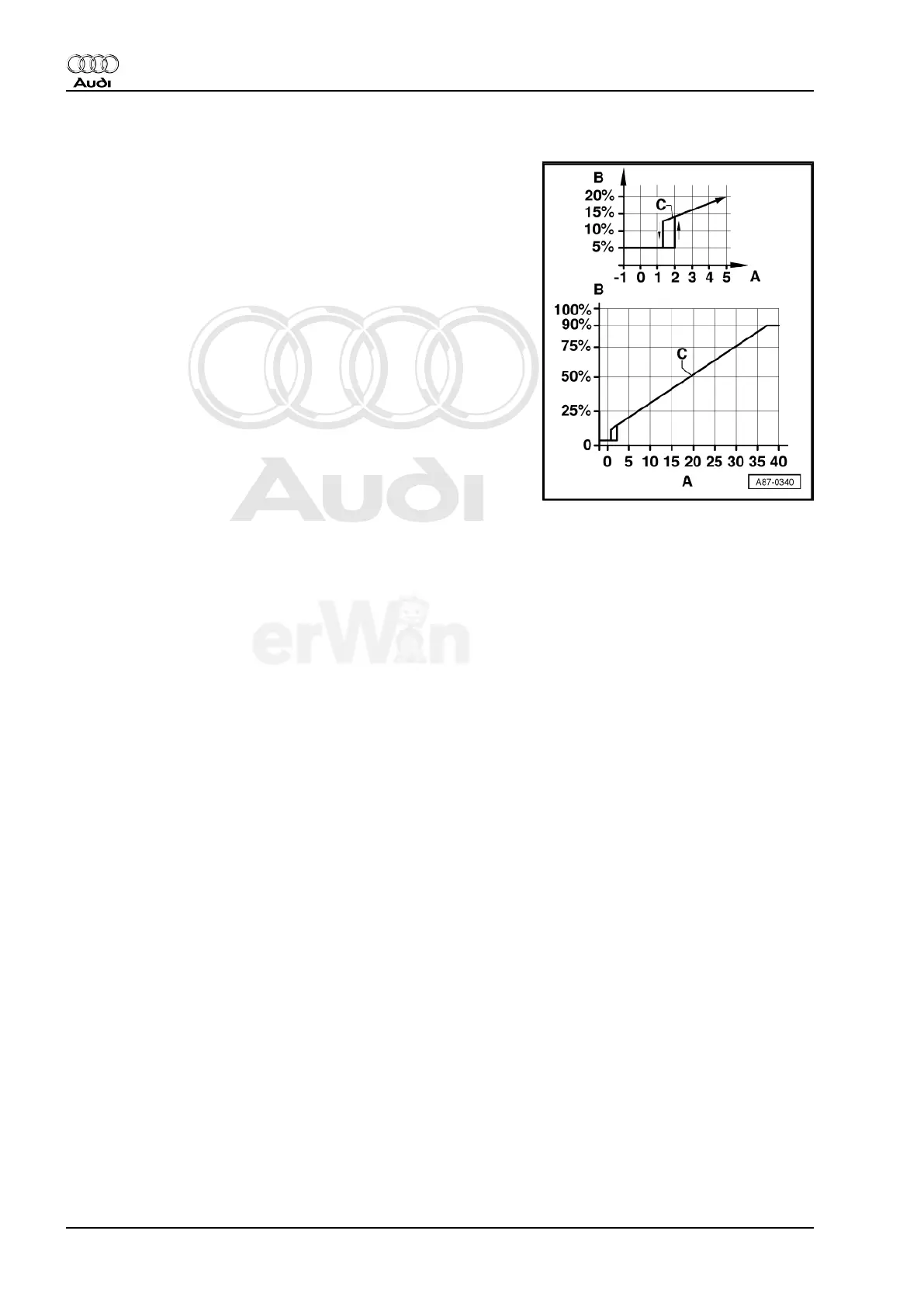

-A- Pressure on the high pressure side in the refrigerant circuit in
bar (absolute pressure)
-B- square-wave signal duty cycle
-C- Characteristic curve.
