Note
♦

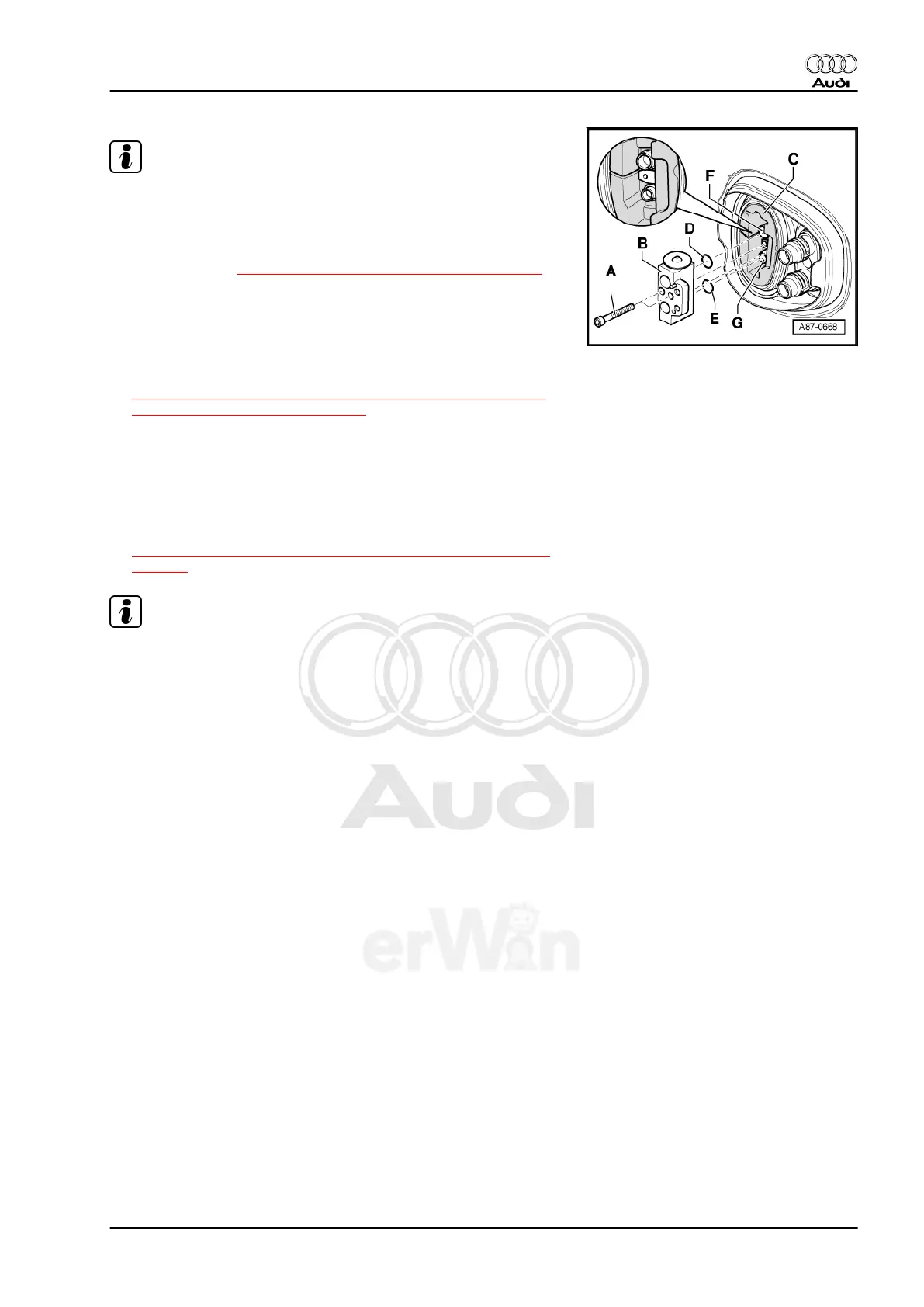

Expansion valve is available in different versions (same hous‐
ing but a different control characteristic), therefore ensure the
exact allocation. Refer to Electronic Parts Catalog (ETKA).
♦
Coat the O-ring seals lightly with refrigerant oil prior to instal‐
lation. Refer to ⇒ “1.21 Refrigerant Circuit O-rings“, page 41 .
♦
If heat protection insulation -C- is missing or not installed cor‐
rectly, it can cause reduced performance of the A/C system
(change of adjusted control characteristic of expansion valve
due to radiant heat).
– Install refrigerant lines on the A/C compressor. Refer to
⇒ “5.18.13 Refrigerant Lines, Disconnecting and Connecting
From Expansion Valve“, page 180 .
– Discharge and fill the refrigerant circuit. Refer to ⇒ Refrigerant
R134a Servicing; Rep. Gr. 00 ; Description and Operation (A/
C Service Station).
– Install remaining components.
– Operate the A/C system after filling the refrigerant circuit. Re‐
fer to
⇒ “1.4 A/C System, Operating After Filling Refrigerant Circuit“,
page 28 .
Note
Note the information regarding operating the A/C system after
filling. Refer to ⇒ Refrigerant R134a Servicing; Rep. Gr. 00 ;
Description and Operation (A/C Service Station).
5.18.11 Fluid Reservoir
Does not apply to condensers, which have an attached reservoir.
Audi TT 2007 ➤
Heating, Ventilation and Air Conditioning - Edition 01.2011
5. Removal and Installation 175
