Audi TT - Components Outside of Passenger Compartment, Group

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
with respect to the correctness of information in this document. Copyright by AUDI AG.

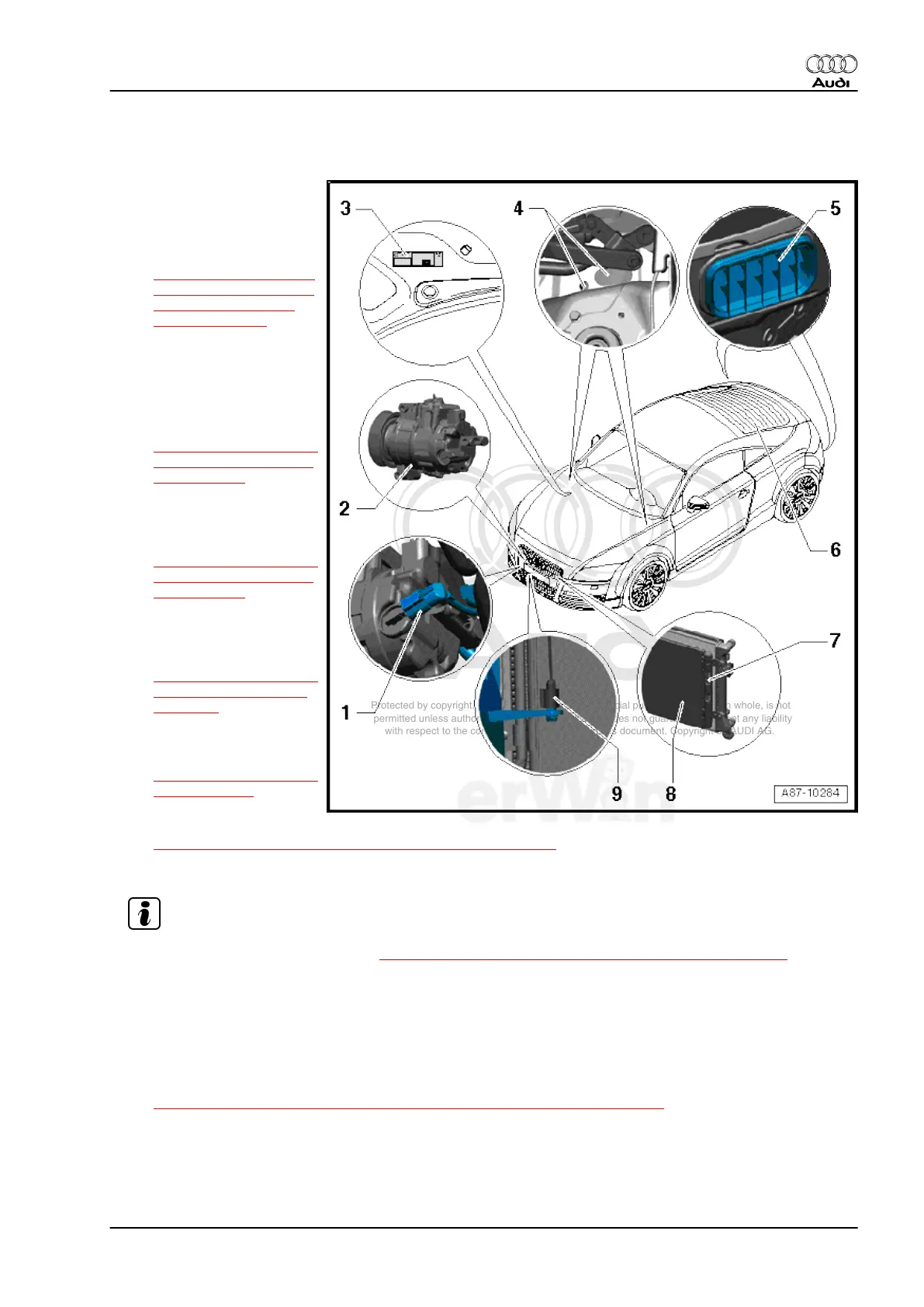

2.6 Components Outside of Passenger Compartment, Group 1
1 - A/C Compressor Regulator
Valve -N280-
❑ For checking activation
and functionality, refer
to
⇒ “4.1 A/C Compressor
Regulator Valve N280 ,
Checking Switch-On
Signal“, page 76 .
2 - A/C Compressor
❑ Remove A/C compres‐
sor from and reinstall
onto the bracket (4 or 6
cylinder engine). Refer
to
⇒ “5.1 A/C Compressor,
Removing From Brack‐
et“, page 103 .
❑ A/C Compressor, 5-Cyl‐
inder, removing from
and installing on brack‐
et). Refer to
⇒ “5.2 A/C Compressor,
Removing From Brack‐
et“, page 106 .
❑ A/C compressor refrig‐
erant line, disconnect‐
ing and reconnecting,
refer to
⇒ “5.18.1 A/C Compres‐
sor Refrigerant Lines“,
page 154 .
❑ A/C compressor, re‐
moving and installing,
refer to
⇒ “5.18.2 A/C Compres‐
sor“, page 157 .
❑ Depending on time peri‐
od of production and on engine, compressor construction type may vary. Refer to
⇒ “2.3 Refrigerant Circuit Components Overview“, page 49 and Electronic Parts Catalog (ETKA).
❑ Ribbed belt, removing and installing. Refer to⇒ Engine, Mechanical; Rep. Gr. 13 ; Removal and Instal‐
lation .
Note
❑ Replace the belt pulley. Refer to ⇒ “1.1 A/C Compressor Belt Pulley, Replacement“, page 24 .
3 - Label
❑ With specifications for type of refrigerant and designated fill capacity. Refer to⇒ Refrigerant R134a
Servicing; Rep. Gr. 00 ; Specifications .
4 - Plenum Chamber Water Drains
❑ A water drain is installed at left and right in plenum chamber.
❑ Removing and installing, checking and cleaning. Refer to
⇒ “4.10 Plenum Chamber Water Drain, Checking and Cleaning“, page 100 .
5 - Forced Air Extractor
❑ A forced air extraction vent is installed at left and right under rear bumper.
❑ Sealing doors on air extraction vent must be able to move freely and close automatically.
Audi TT 2007 ➤
Heating, Ventilation and Air Conditioning - Edition 01.2011
2. Description and Operation 55
