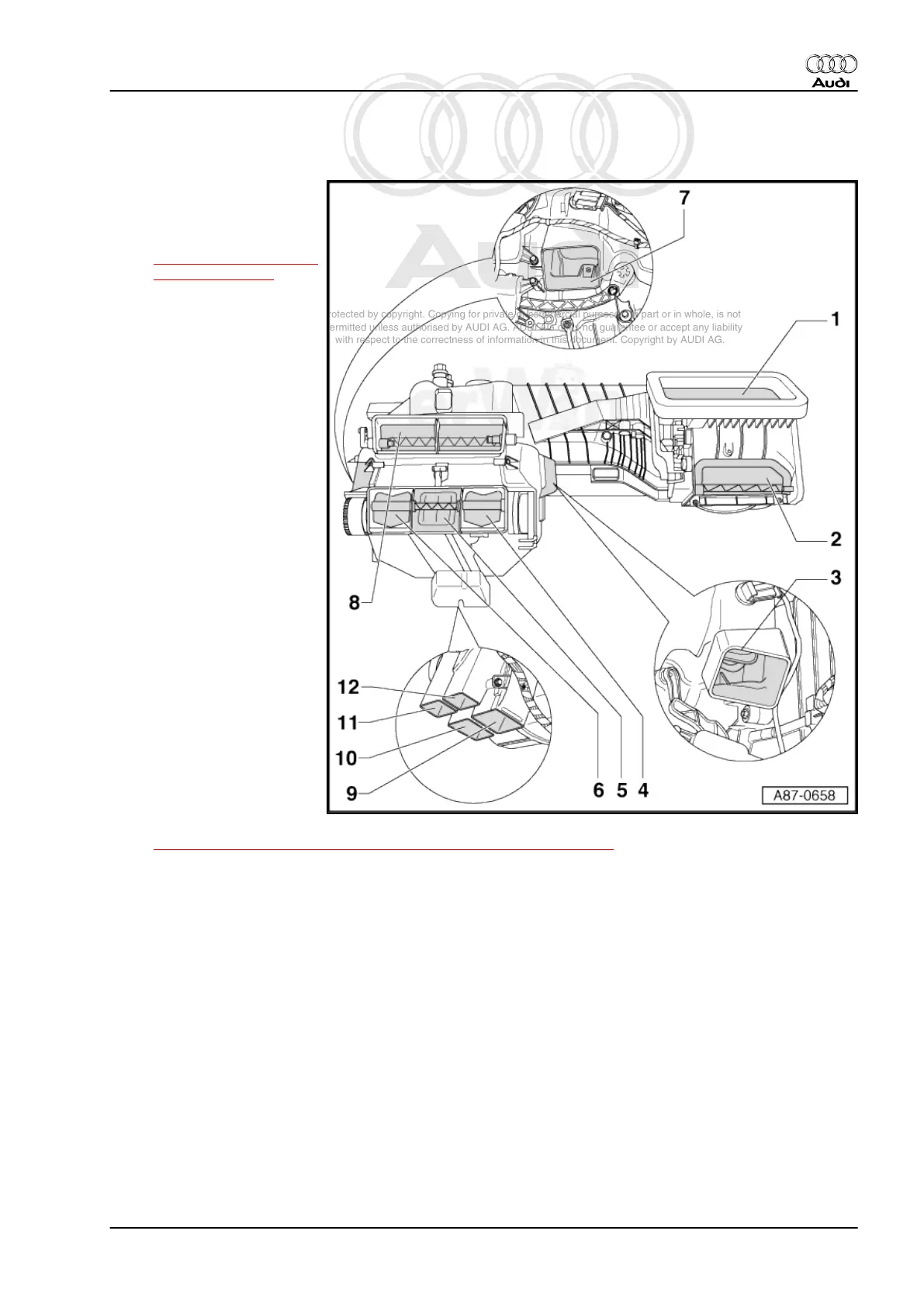

2.12 Air Intake and Outlet Openings
1 - Fresh Air Intake
❑ The air is extracted out
of the plenum chamber.
Refer to
⇒ “5.12 Fresh Air Intake
Cover“, page 142 .
2 - Removing Air From The
Passenger Compartment (In
Recirculating Air Mode)
❑ The air is taken from the
passenger footwell un‐
der the glove compart‐
ment.
3 - Outlet To Right Front Foot‐
well Vent
4 - Outlet To Right Instrument
Panel Vent
5 - Outlet To Center Instrument
Panel Vents
6 - Outlet To Left Instrument
Panel Vent
7 - Outlet To Left Front Foot‐
well Vent
8 - Outlet To Instrument Panel
Defroster Vents Instrument
Panel
❑ From May 2007, an A/C
air distribution housing
with a defroster door in
the air outlet to the de‐
froster vents in the in‐
strument panel without
a side cut-out is gradu‐
ally being installed. With
the introduction of the
door with the side cut-out, the Climatronic control module -J255- is changed. Refer to
⇒ “1.6 A/C Air Distribution Housing Defroster Outlet Door“, page 30 and to the Electronic Parts Catalog
(ETKA). Make sure the correct Climatronic control module installed and then check the adaptation using
Vehicle diagnosis, testing and information system -VAS5051B- in the "Guided Fault Finding". On vehicles
without A/C, the change to the door has no influence on the heater control (the door is controlled only
by adjusting the Climatronic control module heater controls).
9 - Outlet To Right Rear Footwell Vent
❑ The outlet opening is always sealed with a sealing plug, there are no vents installed in the rear footwell.
10 - Outlet To Left Rear Footwell Vent
❑ The outlet opening is always sealed with a sealing plug, there are no vents installed in the rear footwell.
11 - Outlet To Vent In Rear Center Console
❑ The outlet openings are always sealed with a sealing cap, there is not vent installed in the rear center
console.
12 - Outlet To Vent In Rear Center Console
❑ The outlet openings are always sealed with a sealing cap, there is not vent installed in the rear center
console.
