5.20 Temperature Sensors
⇒ “5.20.1 Evaporator Vent Temperature Sensor G263 “,
page 184
⇒ “5.20.2 Left Footwell Vent Temperature Sensor G261 “,
page 184
⇒ “5.20.3 Right Footwell Vent Temperature Sensor G262 “, page
185
5.20.1 Evaporator Vent Temperature Sensor -
G263-
Note
On vehicles with heating (without A/C system), there is no Evap‐
orator Vent Temperature Sensor installed (depending on version,
mounting opening in air distribution housing is not present or is
sealed with sealing plugs).
– Remove right center console trim. Refer to⇒ Body Interior;
Rep. Gr. 68 ; Removal and Installation .

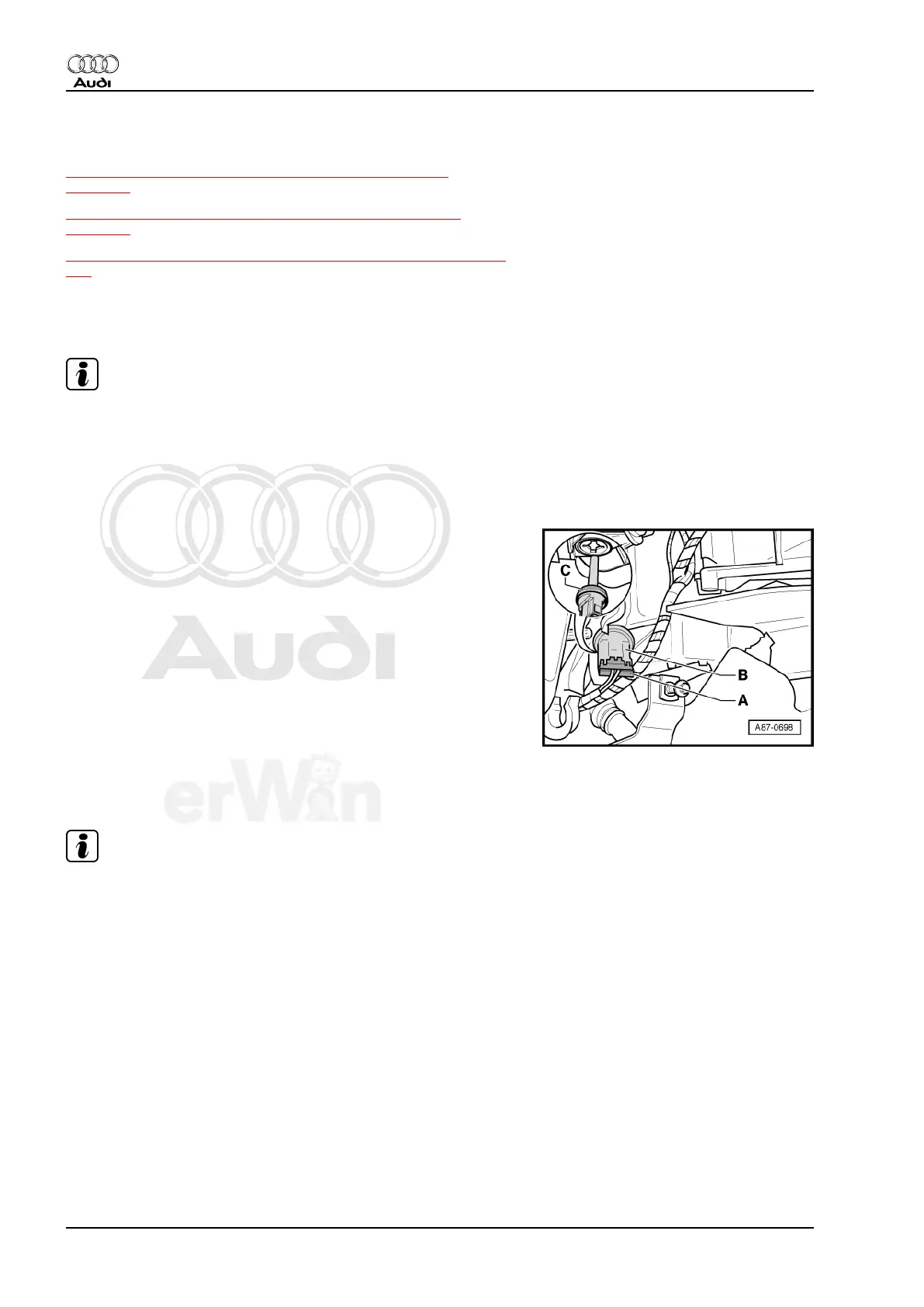

– Disconnect the connector -A-.
– Turn sensor -B- 90° and pull it out of A/C unit.
– Check seal -C- for proper seating when installing.
5.20.2 Left Footwell Vent Temperature Sensor
-G261-
Note
On vehicles with heating (without A/C system), there is no Left
Footwell Vent Temperature Sensor installed (depending on ver‐
sion, mounting opening in air guide channel is not present or is
sealed with sealing plugs).
– Remove driver side storage compartment. Refer to⇒ Body
Interior; Rep. Gr. 68 ; Removal and Installation .
