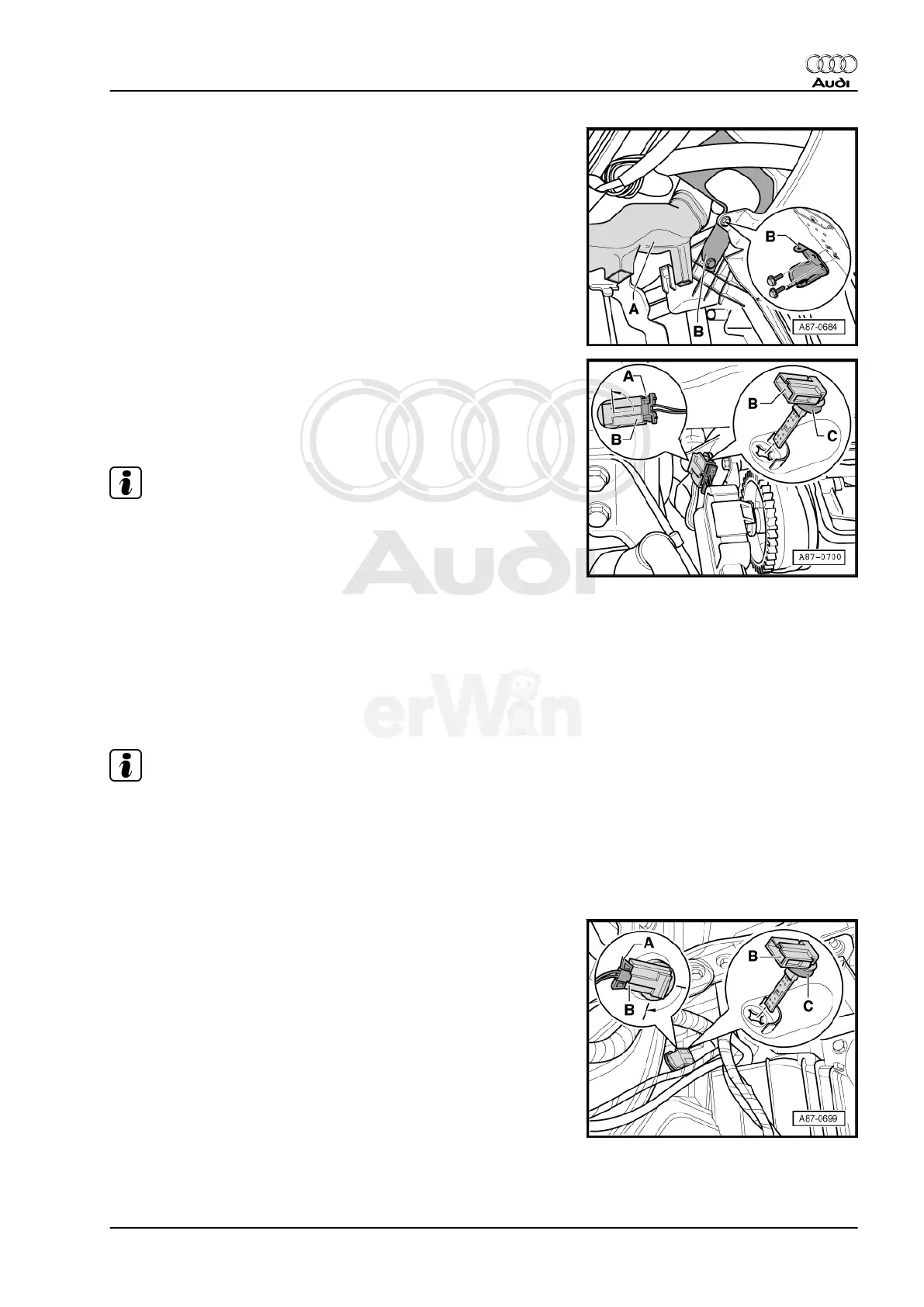

– Remove left footwell vent -A- (driver side). Refer to⇒ Body
Interior; Rep. Gr. 68 ; Removal and Installation .
– Reach through opening between left side of A/C unit and cen‐
tral tube (instrument panel cross member) or support on left
side of A/C unit and rotate sensor -B- into position in which
connector -A- can be disconnected.
– Disconnect the connector -A- (for example, using needle-nose
pliers)
– Turn sensor -B- 90° and pull it out of A/C unit.
– Check seal -C- for proper seating when installing.
Note
♦
If the sensor -B- cannot be rotated, or is not accessible be‐
cause of other components -B-, remove this component. Refer
to⇒ Body Interior; Rep. Gr. 70 ; Removal and Installation .
♦
This illustration depicts sensor -B- with instrument panel re‐
moved. With instrument panel installed, the sensor -B- is
visible from underneath when the footwell vent is removed
(part of sensor with temperature sensor is visible in air guide
channel).
5.20.3 Right Footwell Vent Temperature Sen‐
sor -G262-
Note
On vehicles with heating (without A/C), there is no Right Footwell
Vent Temperature Sensor installed (depending on version,
mounting opening in air guide channel is not present or is sealed
with sealing plugs).
– Remove the glove compartment. Refer to⇒ Body Interior;
Rep. Gr. 68 ; Removal and Installation .
– Disconnect the connector -A-.
– Turn sensor -B- 90° and pull it out of A/C unit.
– Check seal -C- for proper seating when installing.
Audi TT 2007 ➤
Heating, Ventilation and Air Conditioning - Edition 01.2011
5. Removal and Installation 185
