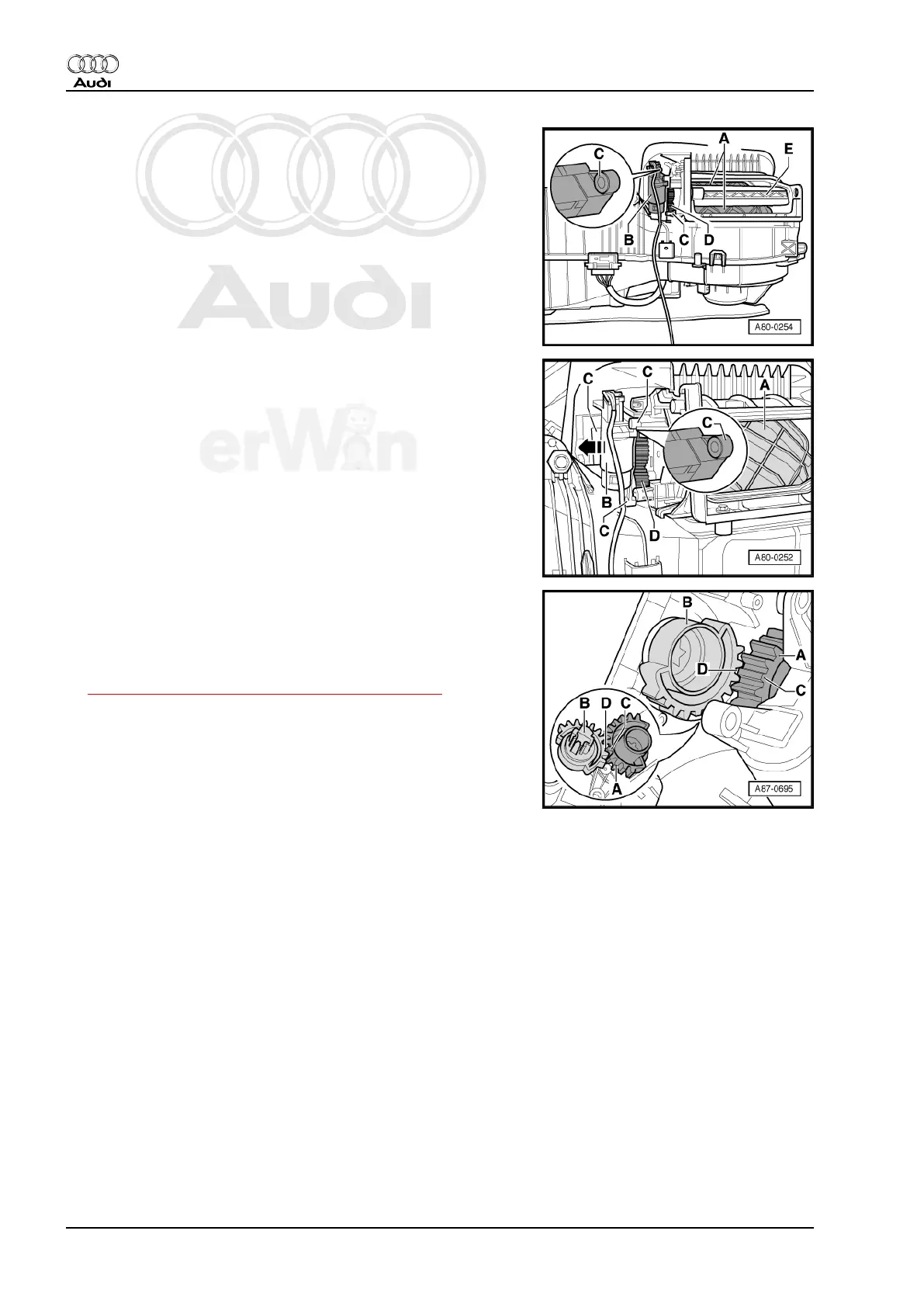

– Open the air recirculation door -E-.
– Reach into intake opening for recirculating air mode and bring
air flow door -A- into “fresh air mode“ position (intake opening
for recirculating air mode is closed).
– Insert airflow door motor -B- opposite direction of arrow in
mounts -C- and on toothed gear -D-.
– So that toothed gear on motor -A- can be slid on toothed gear
of air flow door, short tooth -C- of motor toothed gear must
align with short tooth interval -D- of toothed gear on shaft of
air flow door -B-.
– Install Recirculation Door Motor -V113- . Refer to
⇒ “5.8.5 Recirculation Door Motor V113 “, page 135 .
– Install the wiring harness so that it cannot come in contact with
any moving parts (e.g. the actuating arm of the control motor).
Audi TT 2007 ➤
Heating, Ventilation and Air Conditioning - Edition 01.2011
128 Rep. Gr.87 - Air Conditioning
