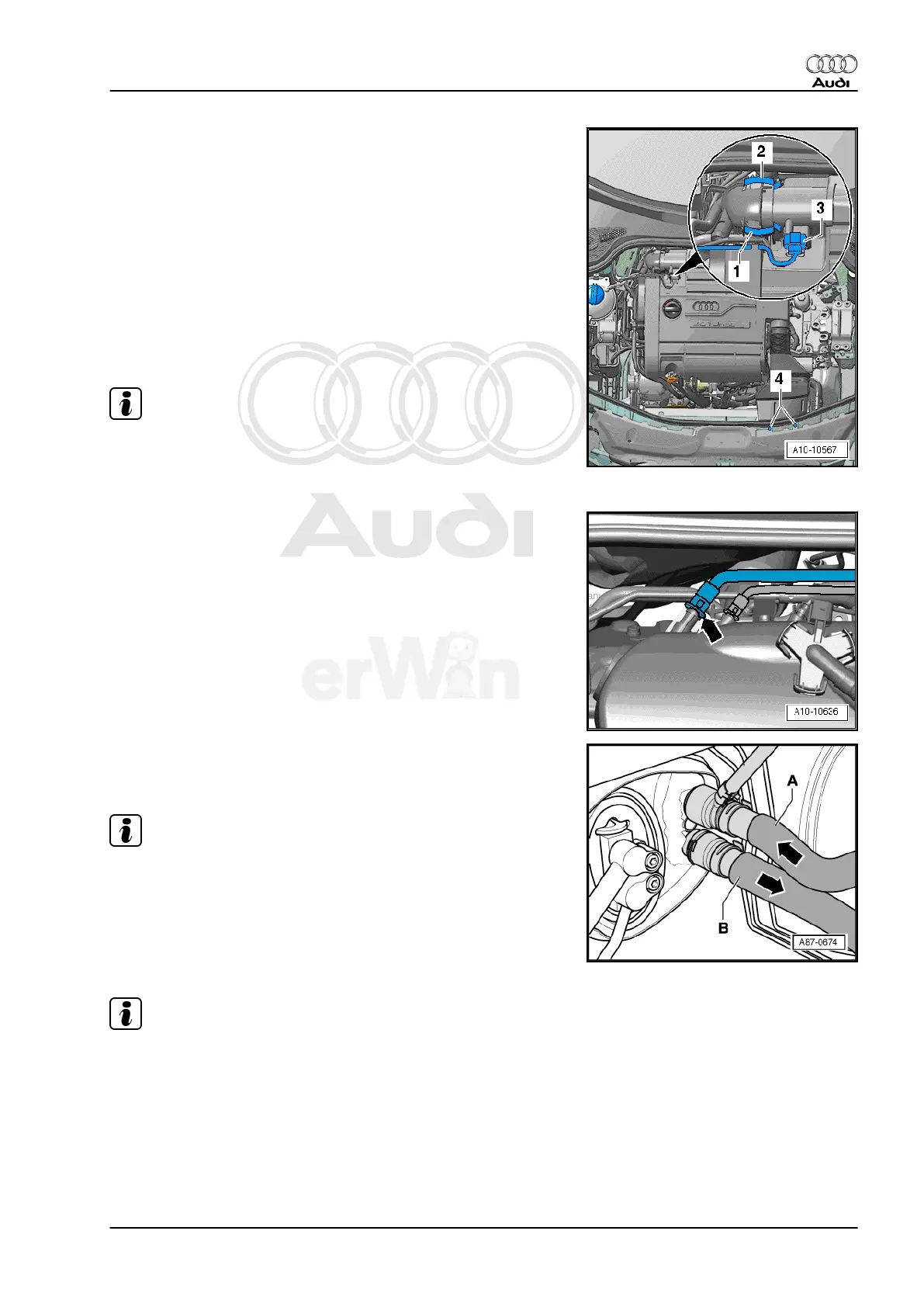

– Disconnect electrical connector -3- on Mass Air Flow (MAF)
Sensor -G70- .
– Open spring clips -1- and -2- and remove air guide hose from
mass airflow sensor.
– Remove the air intake from lock carrier -4-.
– Remove engine cover.
Components, that must be removed on 5 cylinder engines
– Remove the air guide pipe (from the air filter to the turbo‐
charger). Refer to ⇒ Fuel Injection and Ignition System; Rep.
Gr. 24 ; Removal and Installation .
Components, that must be removed on 6 cylinder vehicles
Note
The following describes removal and installation on a 3.2L MPI
vehicle. The procedure may be different on other 6 cylinder ve‐
hicles.
– Remove vacuum hose to brake booster -arrow-.
Procedure continued for all vehicles
– Remove components that block access to the coolant hoses
-A- and -B- in engine compartment. Refer to ⇒ Engine Me‐
chanical; Rep. Gr. 13 ; Removal and Installation .
Note
Depending on the engine and version of the vehicle, it may be
necessary to loosen or remove the following components: upper
engine cover, pressurized air pipe to throttle valve part, for coolant
hose and expansion valve connection area heat shield, etc.).
– Mark the arrangement of coolant hoses -A- (supply to cylinder
head) and -B- (return to coolant pump).
Note
♦ The heater core is designed for a specific coolant flow direc‐
tion. Therefore, coolant hoses must be connected on the
correct sides.
♦ Bleed the coolant circuit. Refer to ⇒ Engine Mechanical; Rep.
Gr. 13 ; General Information .
