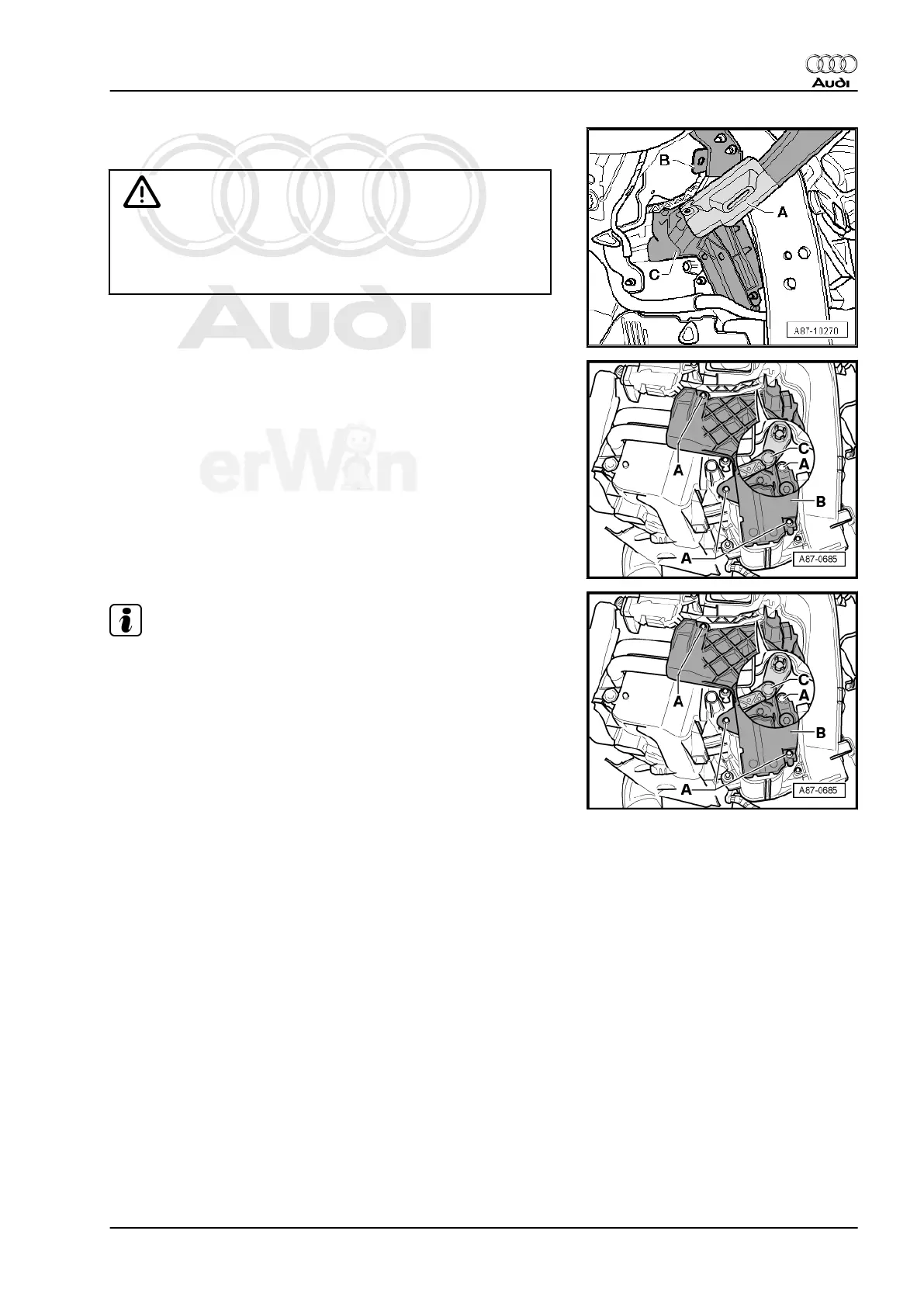

– Remove the bracket -B-. Refer to ⇒ Body Interior; Rep. Gr.
68 ; Removal and Installation .
Caution
If it is necessary, bend lower part of instrument panel -A- to the
side to remove the bracket -B-, cover -C- and heater core.
Carefully bend it only as far as necessary for removal so that
the instrument panel is not damaged.
Removing
– Remove 4 bolts -A- and remove cover -B-.
Note
♦
This illustration shows an A/C unit with an auxiliary air heater
heating element -Z35- .
♦
There are different versions of the cover -B- (for vehicles with‐
out or with auxiliary air heater heating element -Z35- ). Refer
to Electronic Parts Catalog (ETKA).
♦
If the lever -C- to the left temperature door is located unfavor‐
ably so that the upper bolt -A- is not accessible, switch ignition
on and set another temperature setting on the Climatronic
control module -J255- (for example, turn temperature adjuster
to “Warm“ end position).
– Cover carpet in area under heat exchanger with waterproof foil
and absorbent paper towel.
