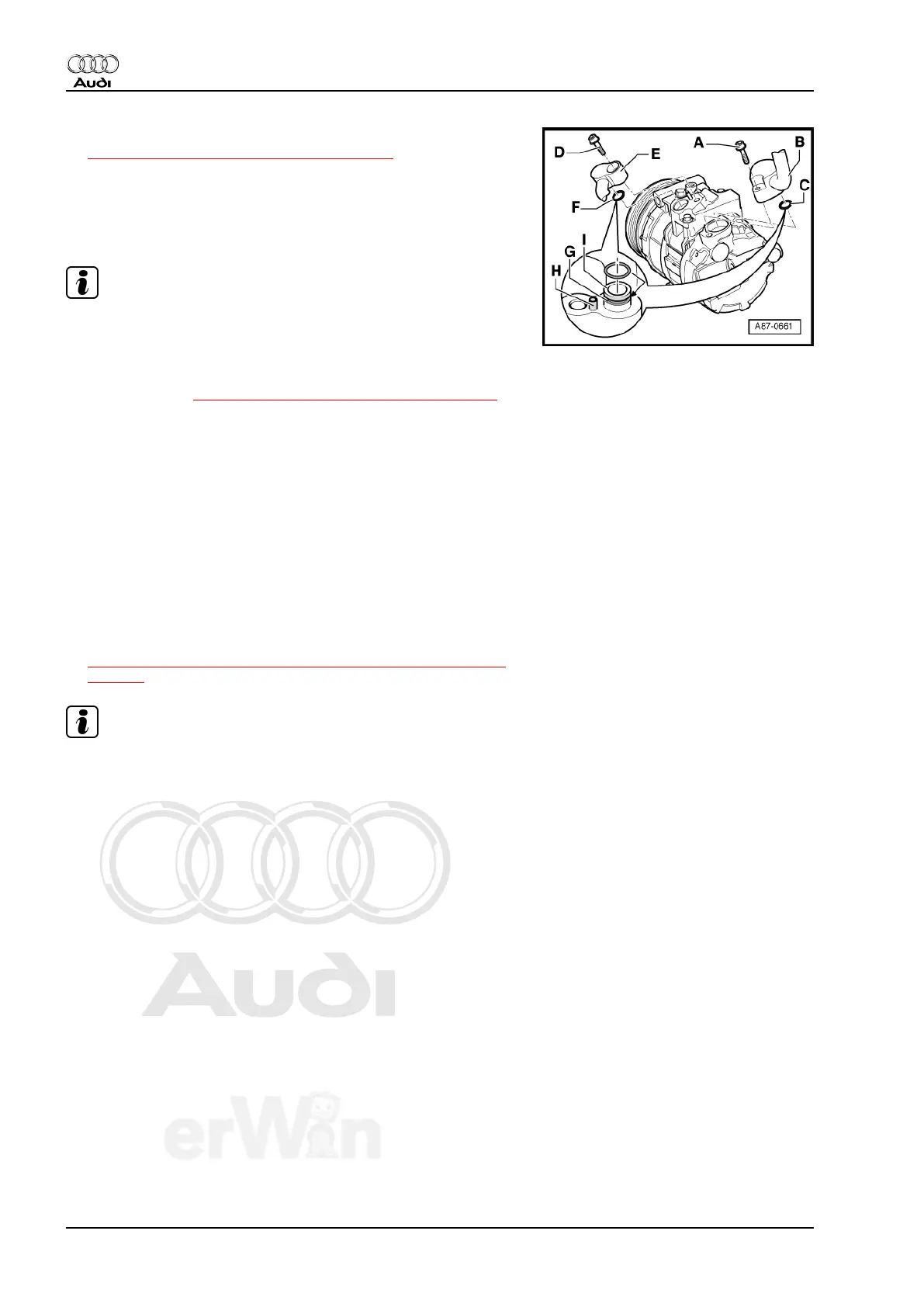

– Replace O-rings seals -C- and -F-. Refer to
⇒ “1.21 Refrigerant Circuit O-rings“, page 41 . Version, refer
to Electronic Parts Catalog (ETKA).
– Check fitted pin -H- (not installed at all connections) and
sleeve -J- for damage and proper seating.
– Tighten bolts -A- and -D- to 25 Nm.
Note
♦
Do not use the O-rings from the caps that are installed on the
connections in the replacement compressor when installing
the lines.
♦
Coat the O-ring seals lightly with refrigerant oil prior to instal‐
lation. Refer to ⇒ “1.21 Refrigerant Circuit O-rings“, page 41 .
♦
Make sure the O-ring seals are seated properly in the groove
-G- on the respective refrigerant line.
♦
Following attachment of refrigerant pipes to compressor (and
installation of compressor) check routing of pipes. They must
be inserted in holders provided and not make contact with
other components.
– Evacuate refrigerant circuit and recharge again. Refer to⇒
Refrigerant R134a Servicing; Rep. Gr. 00 ; Description and
Operation (A/C Service Station).
– Install remaining components.
– Operate the A/C system after filling the refrigerant circuit. Re‐
fer to
⇒ “1.4 A/C System, Operating After Filling Refrigerant Circuit“,
page 28 .
Note
Note the information regarding operating the A/C system after
filling. Refer to⇒ Refrigerant R134a Servicing; Rep. Gr. 00 ; De‐
scription and Operation (A/C Service Station).
Audi TT 2007 ➤
Heating, Ventilation and Air Conditioning - Edition 01.2011
156 Rep. Gr.87 - Air Conditioning
