– Remove fan shroud. Refer to⇒ Engine Mechanical; Rep. Gr.
19 ; Removal and Installation .
– Disconnect refrigerant lines from condenser. Refer to
⇒ “5.18.12 Refrigerant Lines, Disconnecting and Connecting
from Condenser“, page 178 .
– Remove the front bumper cover. Refer to ⇒ Body Exterior;
Rep. Gr. 63 ; Removal and Installation .
– Remove left and right air guide hose to charge air cooler by
loosening spring clips and hose clamps. Refer to⇒ Engine
Mechanical; Rep. Gr. 21 ; Removal and Installation .

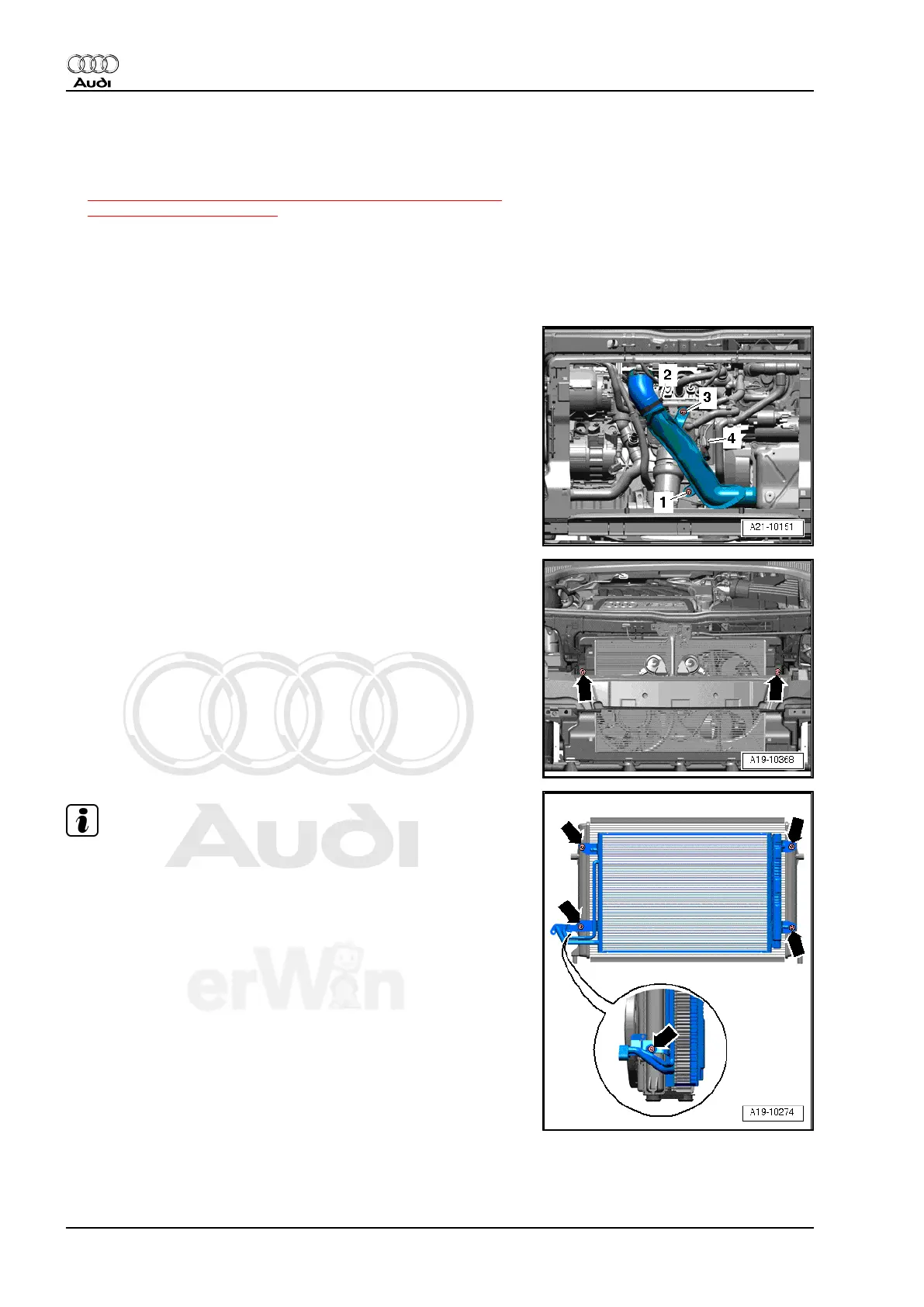

– Loosen clamp -2-
– Disconnect electrical connector -4-.
– Remove nut -3- and bolt -1-.
– Remove intake downward.
– Remove bolts -arrows- by releasing air ducts at left and right
and tipping in direction of head lamps.
– Tip top edge of charge air cooler back slightly.
– Disengage charge air cooler from lower mounting points by
raising it.
– Slide charge air cooler in direction of engine.
– Support charge air cooler from below so that it cannot sink.
Note
Do not bend or stretch lines or hoses as compressor and refrig‐
erant lines/hoses may be damaged.
– Remove bolts -arrows-.
– Remove condenser from charge air cooler.
– Remove condenser -A- downward.
