Note
Do not bend or stretch lines or hoses as compressor and refrig‐
erant lines/hoses may be damaged.

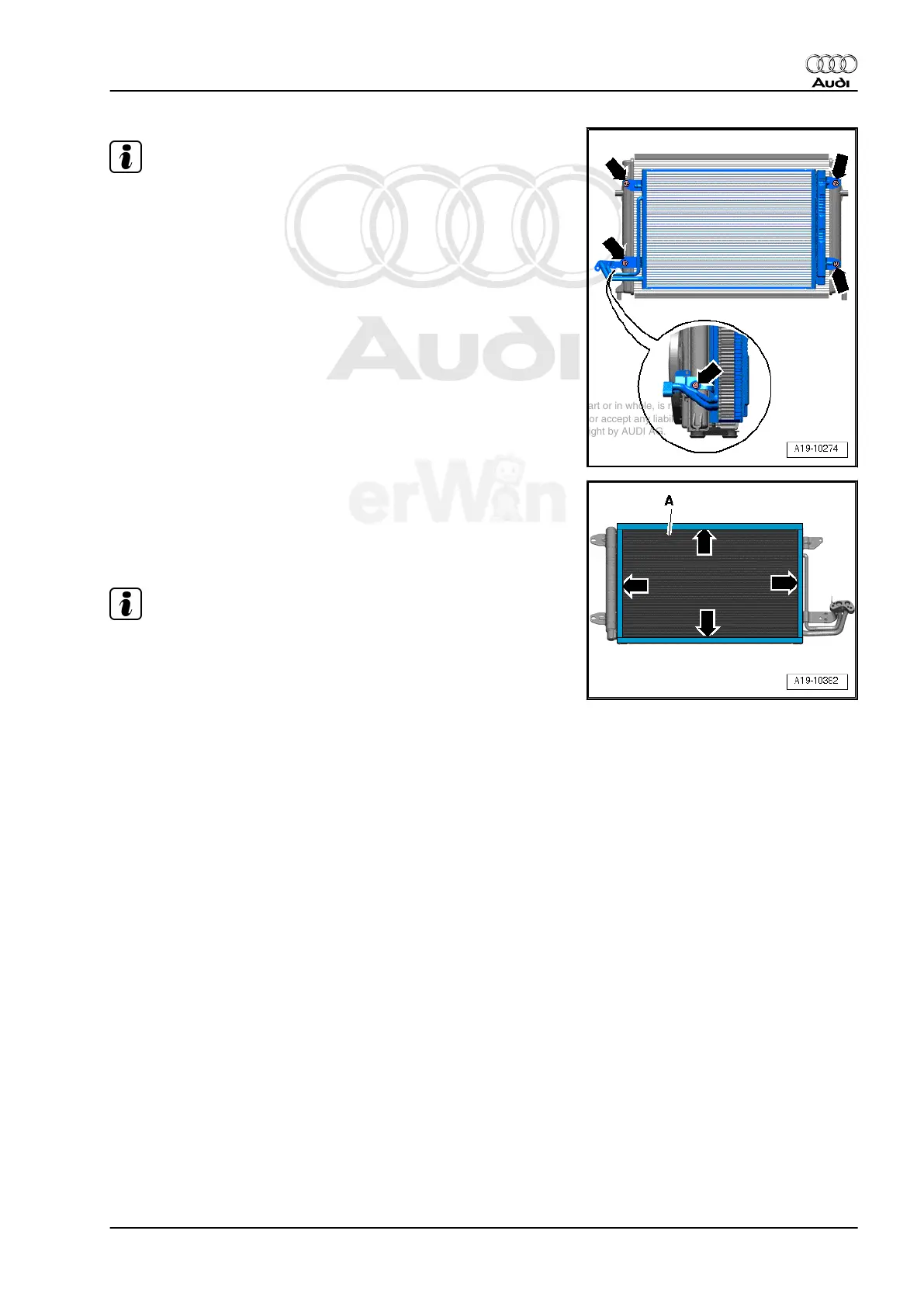

– Remove bolts -arrows-.
– Remove condenser from cooler.
– Remove condenser -A- downward.
Installing
• Tightening specification: bolts for securing compressor (to
charge radiator) - 5 Nm.
Installation is done is reverse order, observe the following:
Note
The removed condenser contains refrigerant oil that must be re‐
turned to the refrigerant circuit (with the new condenser). Refer
to ⇒ Refrigerant R134a Servicing; Rep. Gr. 00 ; Removal and
Installation .
– Ensure sealing strips -arrows- have adhered correctly to con‐
denser -A-.
Audi TT 2007 ➤
Heating, Ventilation and Air Conditioning - Edition 01.2011
5. Removal and Installation 163
