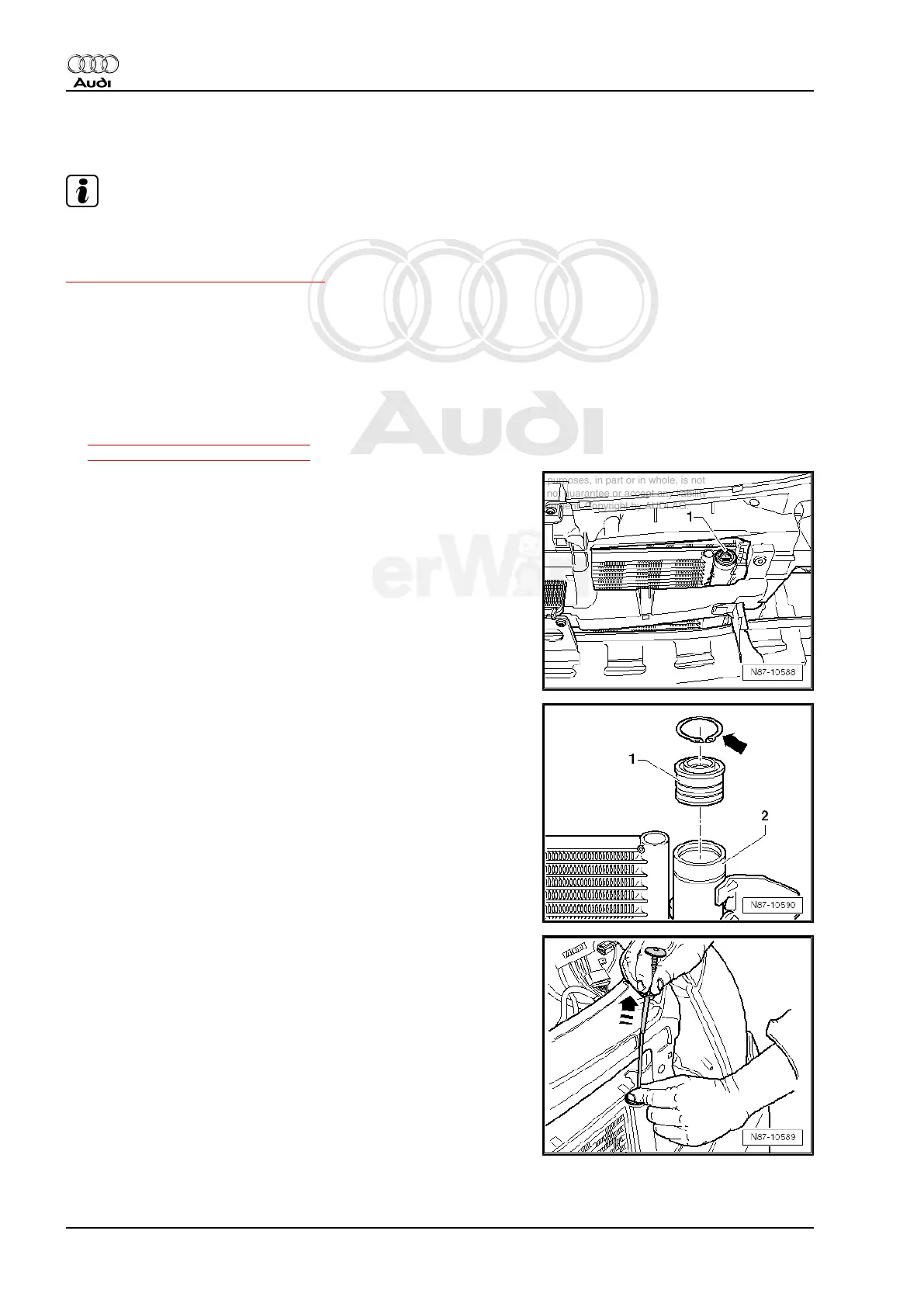

5.18.7 Dryer Cartridge On Modine Condenser
Note
The reservoir on a 4 or 6 cylinder vehicle can either be attached
to the condenser or integrated in it, depending on the condenser
version. Replace an attached reservoir, refer to
⇒ “5.18.11 Fluid Reservoir“, page 175 .
Removing
– Switch off ignition.
– Discharge refrigerant circuit. Refer to ⇒ Refrigerant R134a
Servicing; Rep. Gr. 00 ; Description and Operation (A/C Serv‐
ice Station).
– Remove the condenser. Refer to 4 cylinder
⇒ “5.18.3 Condenser“, page 159 or 6 cylinder
⇒ “5.18.5 Condenser“, page 164 .
– Remove the adhesive sticker from the cap -1-.
– Remove the cap -1-.
– Remove the Seeger ring -arrow- and pull the cap -1- off the
condenser -2- using an M12. screw.
– Remove the dryer bag using a commercially available pick-up
tool -in direction of arrow- from the condenser.
Audi TT 2007 ➤
Heating, Ventilation and Air Conditioning - Edition 01.2011
168 Rep. Gr.87 - Air Conditioning
