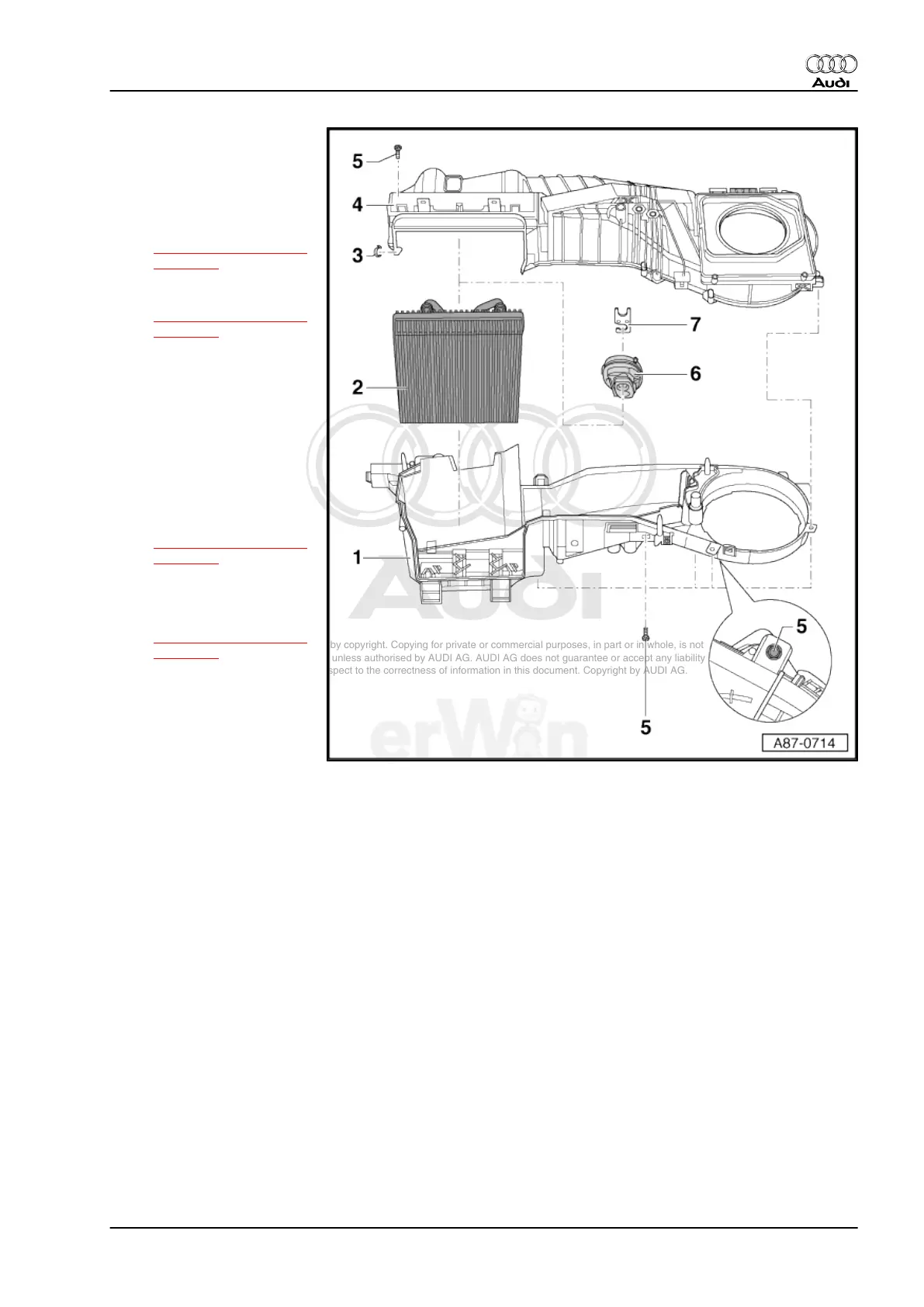

1 - Lower Section Of Evapora‐
tor Housing
2 - Evaporator
❑ Check insulation, it must
be completely present.
Refer to
⇒ “5.18.9 Evaporator“,
page 172 .
❑ Removing and Instal‐
ling, refer to
⇒ “5.18.9 Evaporator“,
page 172
3 - Clip
4 - Upper Section Of Evapora‐
tor Housing
5 - Screw
6 - Seal / Insulation
❑ Heat insulation for ex‐
pansion valve.
❑ Removing and instal‐
ling, refer to
⇒ “5.18.9 Evaporator“,
page 172 .
7 - Bracket
❑ Removing and instal‐
ling, refer to
⇒ “5.18.9 Evaporator“,
page 172 .
