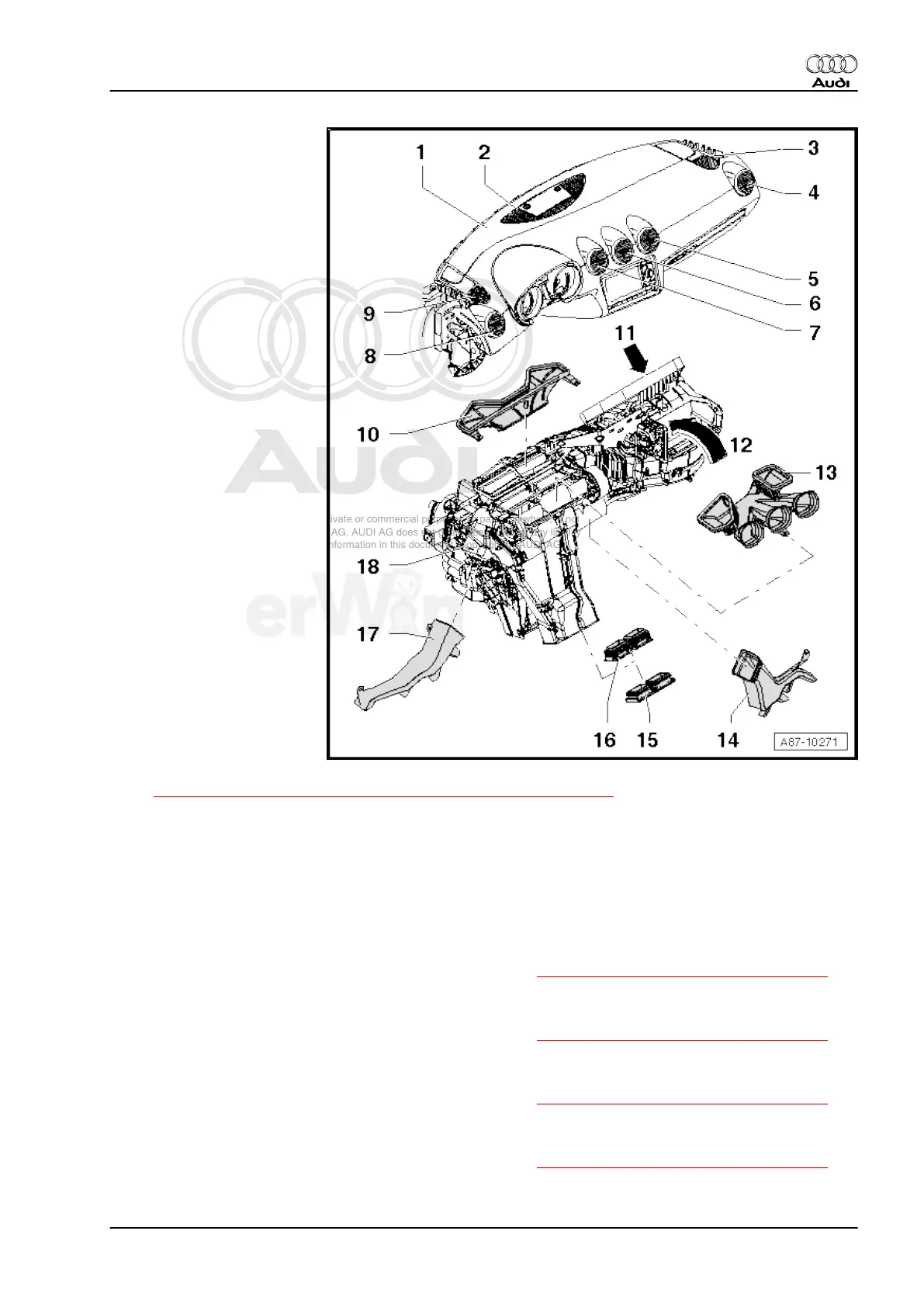

1 - Instrument Panel
❑ With air ducts to defrost‐
er vents and various in‐
strument panel vents.
❑ Removing and instal‐
ling, refer to ⇒ Body In‐
terior; Rep. Gr. 70 ;
Removal and Installa‐
tion .
2 - Defroster Vent/Front Win‐
dow
❑ Air duct to windshield.
❑ Removing and instal‐
ling, refer to ⇒ Body In‐
terior; Rep. Gr. 70 ;
Removal and Installa‐
tion .
❑ If the Intermediate piece
between air conditioner
(heater) and air duct in
the instrument panel
has been pinched dur‐
ing installation, the air
guide to the front wind‐
shield is uneven or in‐
sufficient. Refer to⇒
Body Interior; Rep. Gr.
70 ; Removal and Instal‐
lation .
❑ From May 2007, an A/C
air distribution housing
with a defroster door in
the air outlet to the de‐
froster vents in the in‐
strument panel without
a side cut-out is gradu‐
ally being installed. With
the introduction of the
door with the side cut-out, the Climatronic control module -J255- is changed. Refer to
⇒ “1.6 A/C Air Distribution Housing Defroster Outlet Door“, page 30 and to the Electronic Parts Catalog
(ETKA). Make sure the correct Climatronic control module is installed and then check the adaptation
using Vehicle diagnosis, testing and information system -VAS5051B- in the "Guided Fault Finding" func‐
tion.. On vehicles without A/C, the change to the door has no influence on the heater control (the door
is controlled only by adjusting the Climatronic control module).
3 - Defroster Vent/Right Side Window
❑ Air duct to door window.
❑ Removing and installing, refer to ⇒ Body Interior; Rep. Gr. 70 ; Removal and Installation .
4 - Instrument Panel Vent, Right
❑ Removing and installing instrument panel vents, refer to ⇒ “5.16 Instrument Panel Vents“, page 152 and
⇒ Body Interior; Rep. Gr. 70 ; Removal and Installation .
5 - Right Center Instrument Panel Vent
❑ Removing and installing instrument panel vents, refer to ⇒ “5.16 Instrument Panel Vents“, page 152 and
⇒ Body Interior; Rep. Gr. 70 ; Removal and Installation .
6 - Instrument Panel Vent, Center
❑ Removing and installing instrument panel vents, refer to ⇒ “5.16 Instrument Panel Vents“, page 152 and
⇒ Body Interior; Rep. Gr. 70 ; Removal and Installation .
7 - Left Center Instrument Panel Vent
❑ Removing and installing instrument panel vents, refer to ⇒ “5.16 Instrument Panel Vents“, page 152 and
⇒ Body Interior; Rep. Gr. 70 ; Removal and Installation .
Audi TT 2007 ➤
Heating, Ventilation and Air Conditioning - Edition 01.2011
2. Description and Operation 45
