Audio Technica AT-LP2022 User Manual

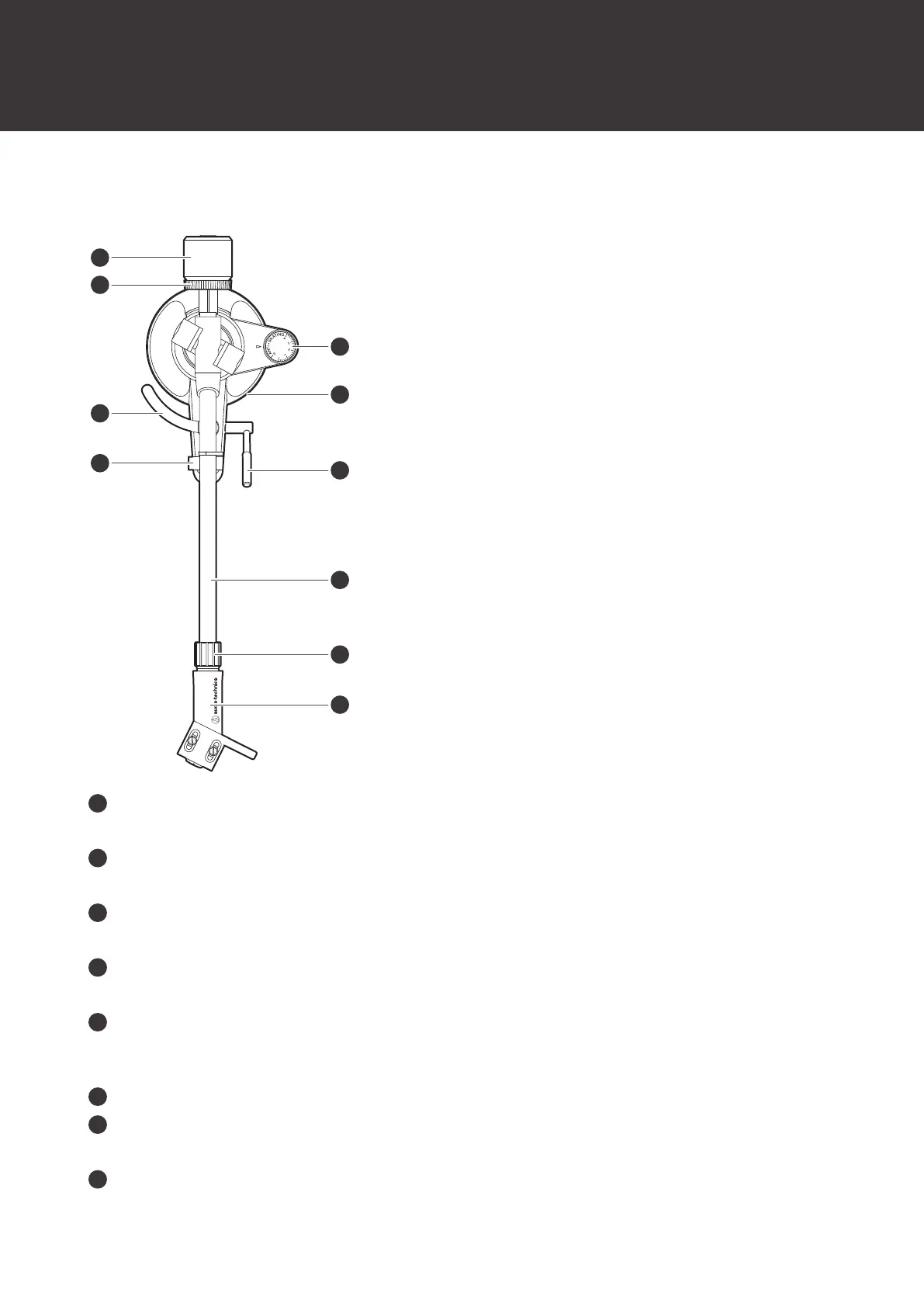

Part names and functions
9
Tonearm
1
7
6
8
2
3
5
4
9
10
1
Counterweight
Balances the tonearm and adjusts to provide the proper tracking force.
2
Tracking force gauge ring
Use to adjust the tracking force.
3
Tonearm lift
Moves the tonearm vertically to and from the face of the record.
4
Tonearm rest with clamp
Use the clamp to secure the tonearm so that it does not move.
5
Anti-skate control dial
While the record is playing, a force acts on the stylus tip to pull it inward. This force can be counteracted by setting
the same values for anti-skate and the tracking force.
6
Tonearm height adjustment socket
7
Tonearm lift control lever
Operates the tonearm lift.
8
Tonearm

Audio Technica AT-LP2022 Specifications

General

Cartridge	AT-VM95E
Frequency Response	20-20, 000 Hz
Type	Manual operation
Speeds	33-1/3 RPM, 45 RPM
Stylus	Elliptical
Signal-to-Noise Ratio	50 dB (IEC 98A Weighted)
