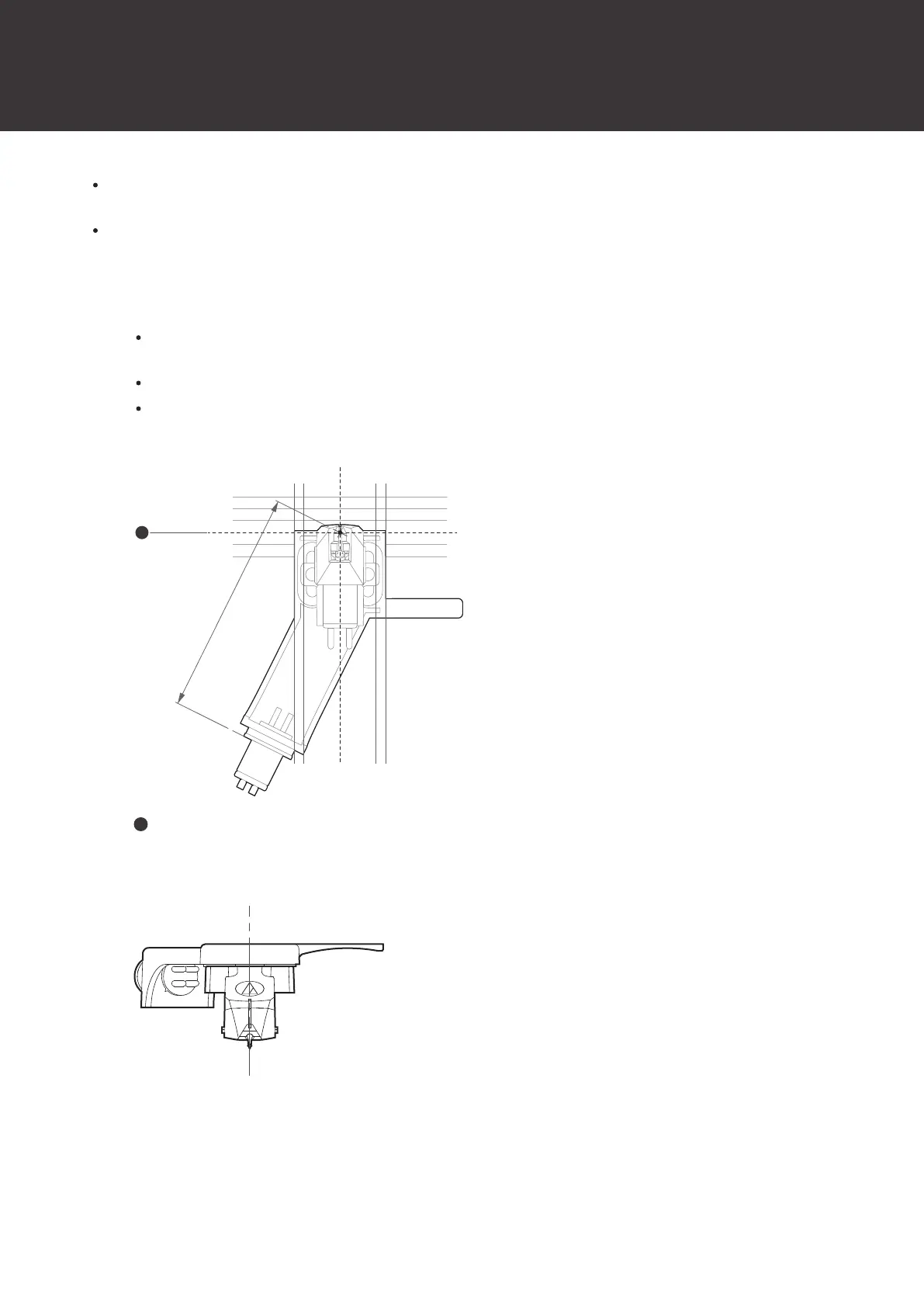

Adjusting the overhang
The position of the cartridge must be accurately determined (adjusting the overhang) when mounting a cartridge or
headshell other than the one provided.
Please use a printer to print the PDF version of this page at equal size. Please note that the HTML version is not the
actual size.
1
Mount the cartridge so it is parallel to the headshell.
Match up the positions of the cartridge and headshell to the overhang adjustment guide on the figure and
mount the cartridge so it is parallel to the headshell.
This illustration represents the actual size (PDF version only).
Place the headshell on the figure, and then adjust the position of the new cartridge so that the stylus tip aligns
with the dotted lines in the figure.
Stylus tip
2
Mount the cartridge so it is vertical to the headshell.
