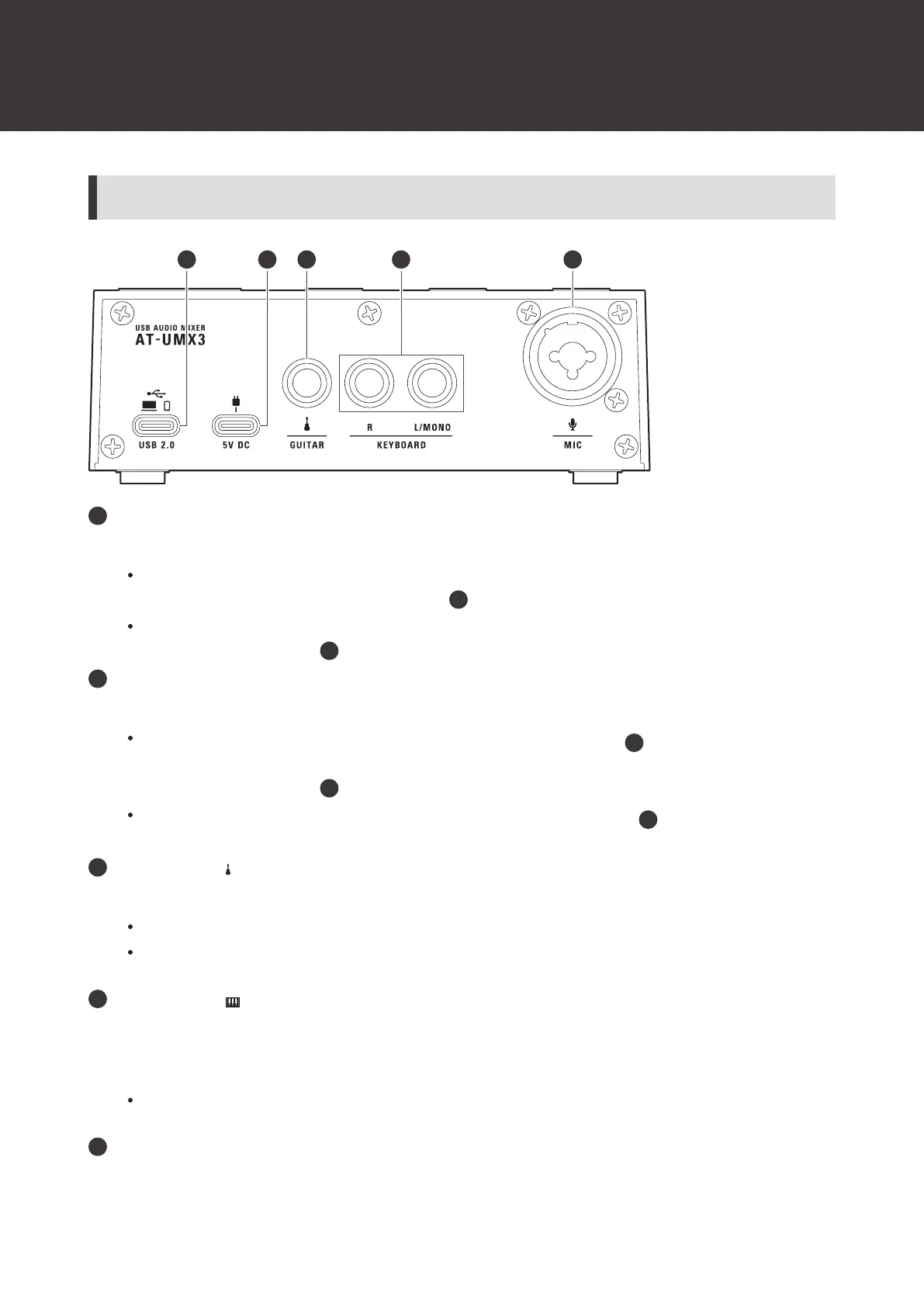

Part names and functions
6
Back
USB port (USB Type-C)
Connects a computer, smartphone/tablet, or similar device to communicate data with.
If you are using a smartphone/tablet, you have to supply power to this product separately. Use a USB power
adapter (sold separately) to supply power to the “
USB power port (USB Type-C).”
When a computer is connected to this product, power is supplied from the computer via the USB cable, so you
do not have to connect the “
USB power port (USB Type-C).”
USB power port (USB Type-C)
Use a USB power adapter (sold separately) to supply power to this product from a household outlet.
You have to connect this port when a smartphone/tablet is connected to the “
USB port (USB Type-C).”
When a computer is connected to this product, power is supplied from the computer via the USB cable, so you
do not have to connect the “
USB power port (USB Type-C).”
Before connecting the adapter to this port, connect a smartphone/tablet to the “
USB port (USB Type-C).” If
you connect the USB power adapter first, the smartphone/tablet may not be recognized.
Line input jack ( )
Connects an electric guitar, electric bass, or other such instrument with high impedance.
This jack is Hi-Z compatible.
Use a 6.3mm (1/4”) monaural standard plug (unbalanced connection). Operation will not be correct if the
connection is balanced.
Line input jack ( )
Connects a stereo line sound device such as an electric keyboard or an audio device. Use the L/MONO jack when
connecting a monaural output device. In this situation, input to the L/MONO jack is output not only from the left
channel but also from the right channel.
Use a 6.3mm (1/4”) monaural standard plug (unbalanced connection). Operation will not be correct if the
connection is balanced.
Microphone input jack
Connects a microphone. This jack is compatible with XLR plugs and 6.3mm (1/4”) monaural standard plugs.
